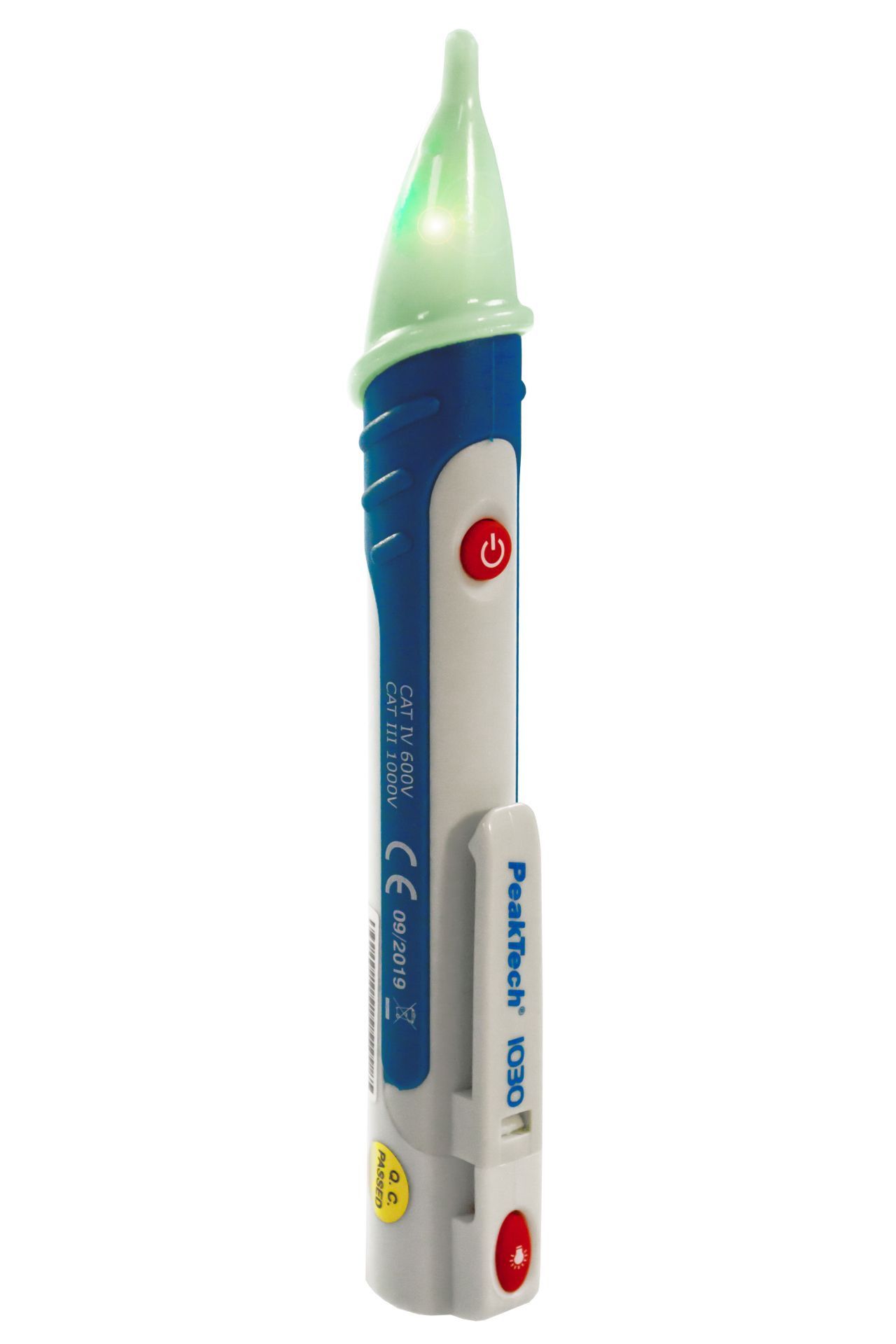

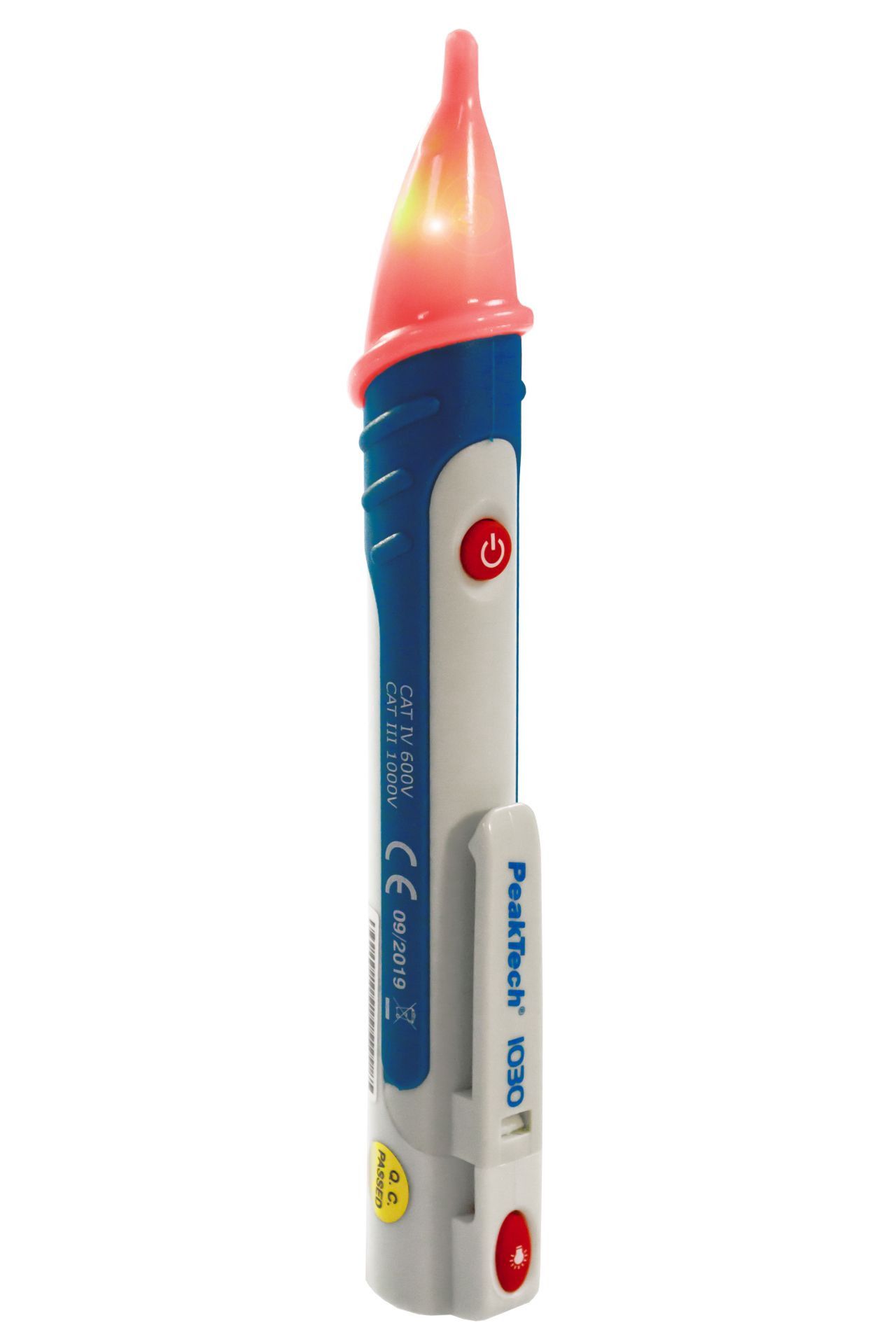

User-friendly, contactless voltage tester 90 V - 1000 V AC. Simply place the tip on a socket, lamp holder or on an insulated conductor. Suitable for locating hidden cables and finding cable break points. If AC voltage is present at the test point, it is indicated visually by a flashing red LED and by an integrated buzzer. If the test point is voltage-free, the sensor lights a steady green light.

Features

• Audible and visual signal when voltage is detected
• On/Off switch
• Suitable for 50/60 Hz circuits
• Durable double housing, handy size with pocket clip, fits easily into any shirt pocket
• All external surfaces are made of insulating material
• Built-in flashlight with ON/OFF button
• Safety: EN 61010-1; CAT III 1000 V
• Supplied accessories: batteries and user manual

Technical data

• Operating range: 90 ~ 1000 V AC, 50/60 Hz
• Operating temperature: -10 - +50°C
• Supply voltage: 2 x 1.5 V AAA (UM-4) batteries
• Dimensions (L x H): 157 x 26 mm

Specs

• LED-lamp: yes
• NCV range: 50 ... 1000 V AC
• Over voltage category: CAT III 1000 V

Links

• PeakTech_1030_04-2022_DE-EN.pdf
