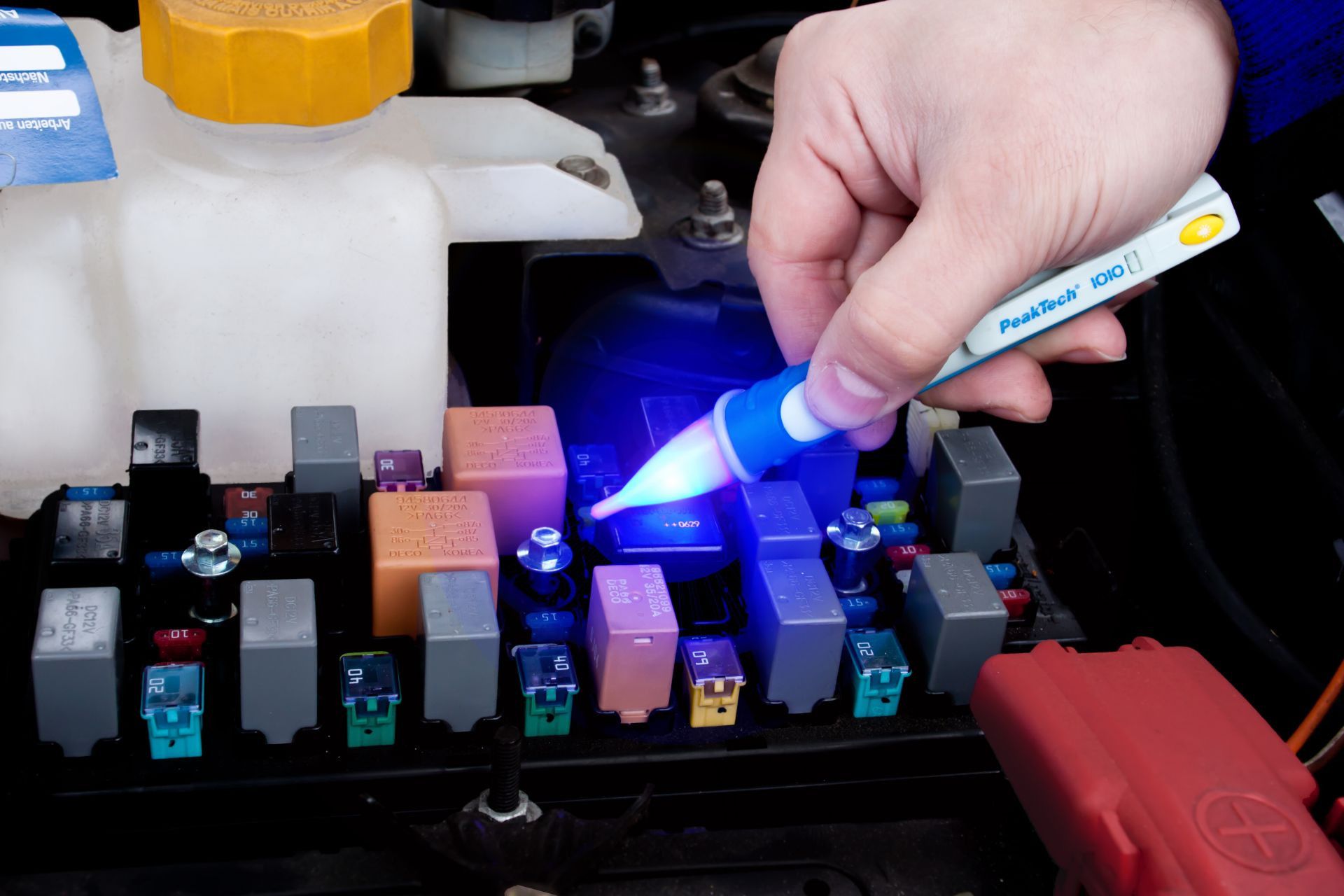

Ideal for checking the correct operation of magnetic fields and coils such as relays and solenoid valves. The magnetic field indicator is a non-contact device, so enclosures do not need to be opened. If a magnetic field is detected, the sensor lights up solid blue. The supplied permanent magnet is used to test the magnetic field indicator before each measurement.

Features

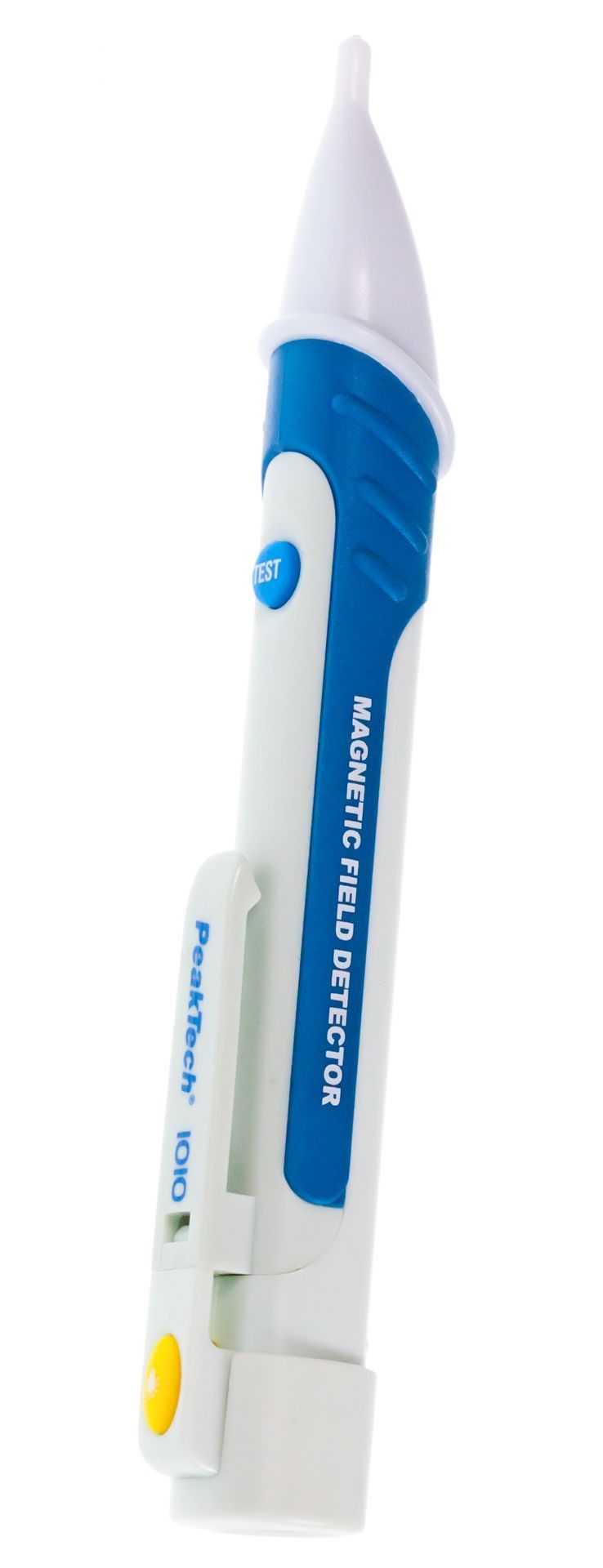

• Robust double housing, handy size with a pocket clip, fits in almost any pocket.
• Built-in flashlight with ON/OFF button.
• Supplied accessories: batteries and user manual.

Technical specifications

• Magnetic fields: AC/DC; permanent magnet
• Detectable inductors: 63 H, 98 H, 401 H, 810 H (H = Henry)

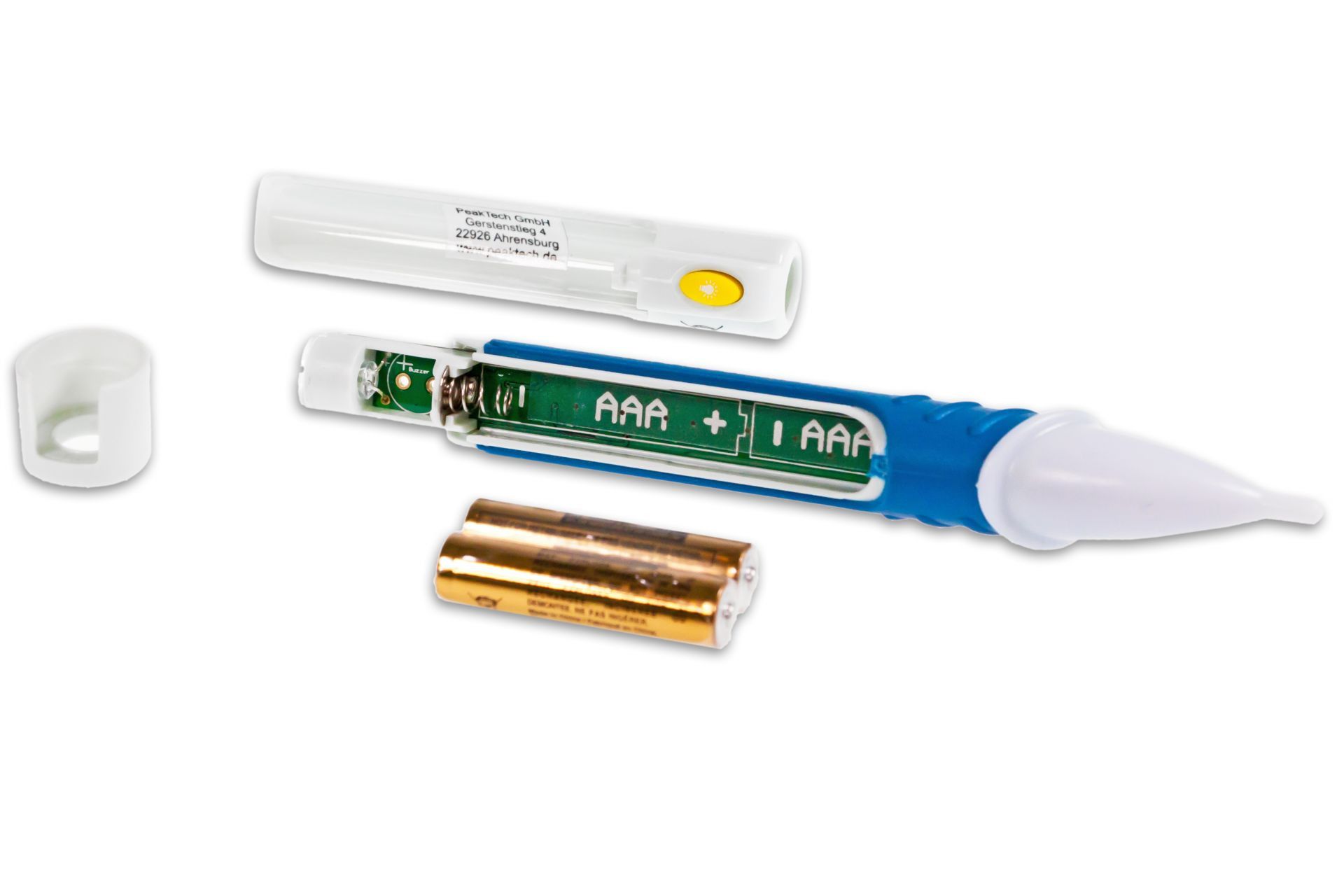

• Operating voltage: 2 x 1.5 V AAA batteries

Links

• PeakTech_1010_07-2021_DE-EN.pdf
