• Minimalist design, easy to install.
• FFC cable is only 30 mm long.
• Compatible with other HAT shields;
• Supports installation of the official Pi 5 active cooler;
• Two LED indicators: PCE: PCIe - LED lights when the SSD is detected; ACT - M.2 drive activity ("ACT").
• Supports 2230/2242/2260/2280 NVMe M.2 SSDs.
• Can supply power to the X1001 shield directly from the FPC PCIe cable (provides up to 5 W continuous power).
• Integrated XH2.54 5V power connector; use it only if you are using a very high-capacity SSD and the power is insufficient.

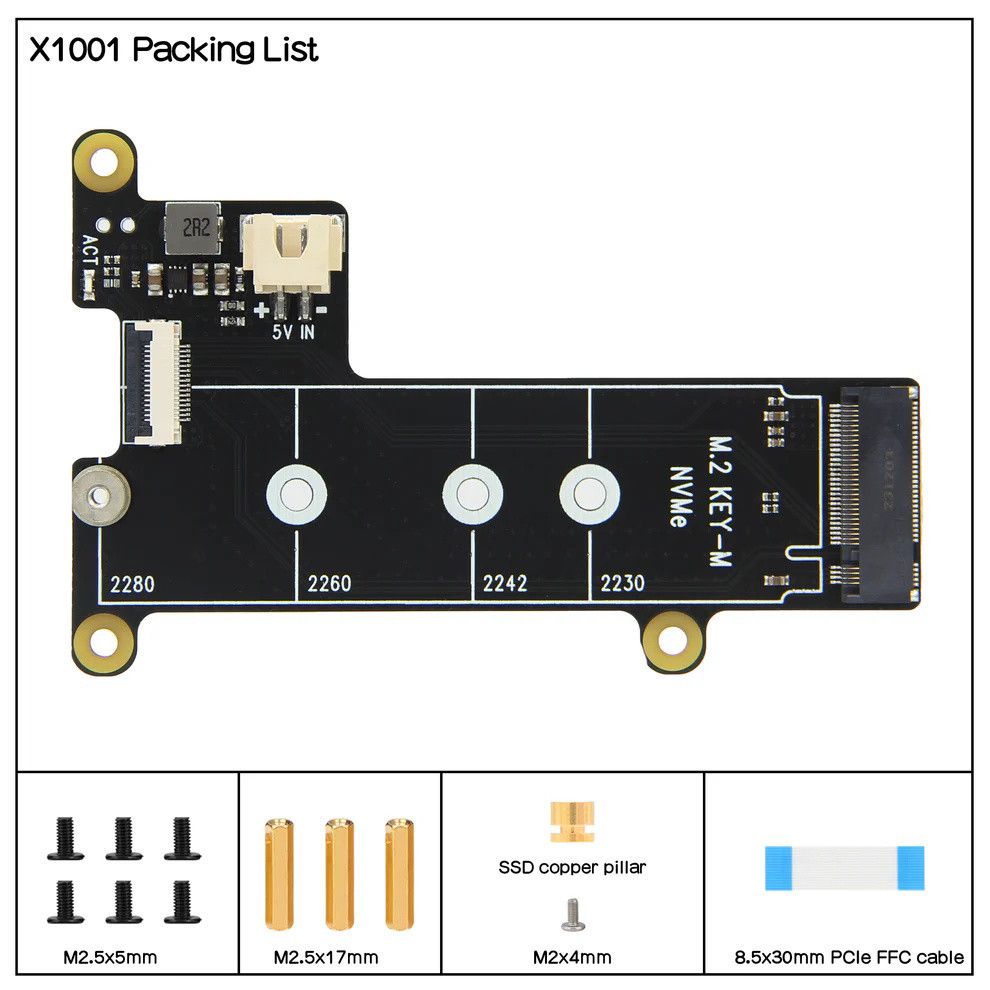

Package contents:

• 1 x X1001 V1.1 NVMe SSD Shield
• 1 x PCIe FFC cable (30mm)
• 3 x M2.5x17mm F/F standoff
• 6 x M2.5x5mm screw
• 1 x M2x4mm screw (to fix MVME M2 SSD)
