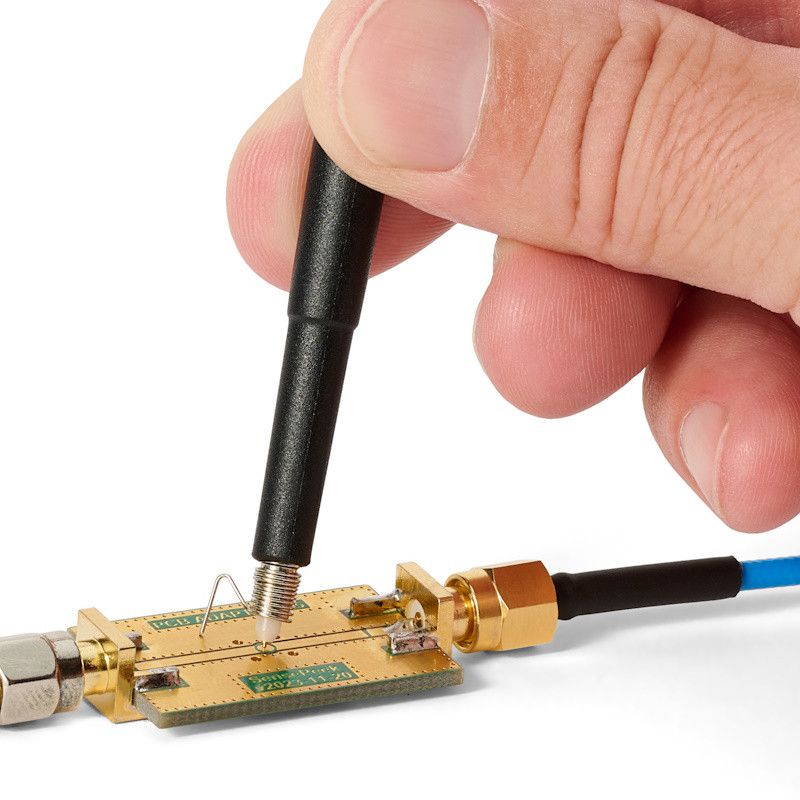

The new SQG series from Sensepeek includes GHz-frequency range probes for AC and DC applications. The SQG series allows the user to perform repetitive or time-consuming measurements in the GHz frequency range without complicated setups or soldering to the measurement point.

Thanks to the exceptionally low probe tip capacitance, the SQG series minimizes signal distortion and prevents capacitive loading, making it ideal for sensitive circuits where preserving signal integrity is crucial. Whether operating in high-frequency environments to measure RF signals or handling high data rates, these probes are designed to manage high data speeds while keeping signals crisp and accurate. In addition, they provide an exceptionally flat frequency response that guarantees unmatched accuracy across a wide frequency range.

Features

• Passive 10:1 DC probe optimized for use with any measurement device that has a 50 Ω input impedance path
• Probe tip impedance 333 Ω
• Available data rate is over 12 Gbps, making it ideal for high-speed signal measurement applications
• Exceptionally low probe tip capacitance, under 0.69 pF, prevents capacitive loading
• Rise time < 52 ps, 10% - 90%
• Continuous voltage up to 13V

Series includes

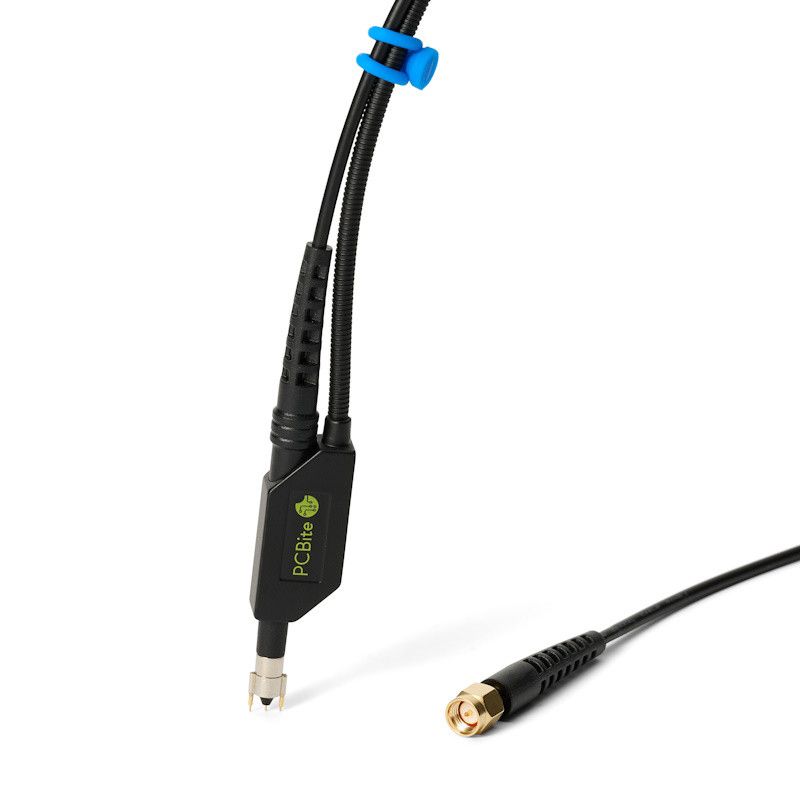

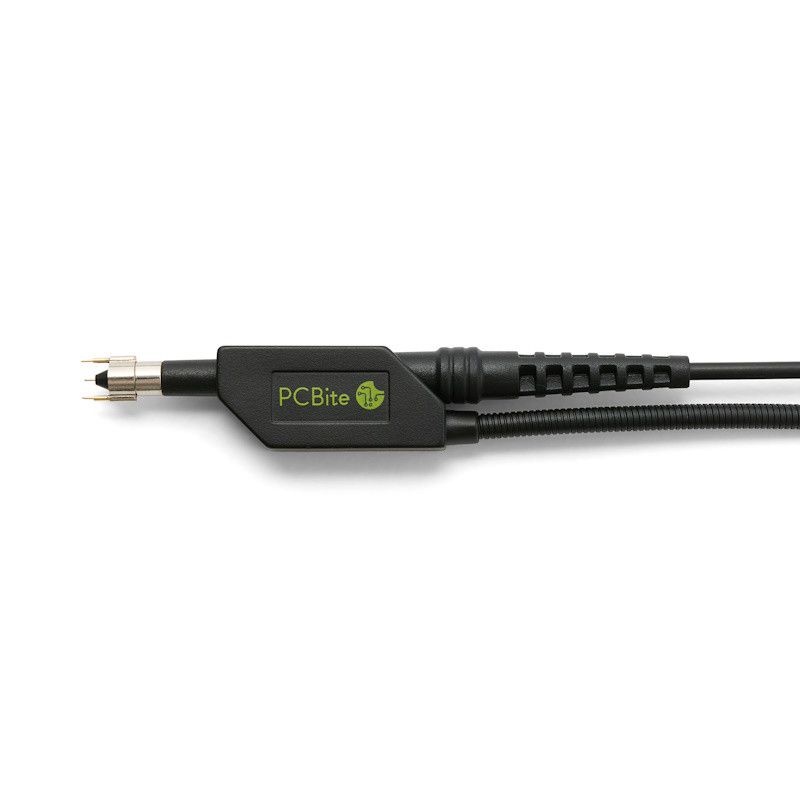

• 1x probe with magnetic base

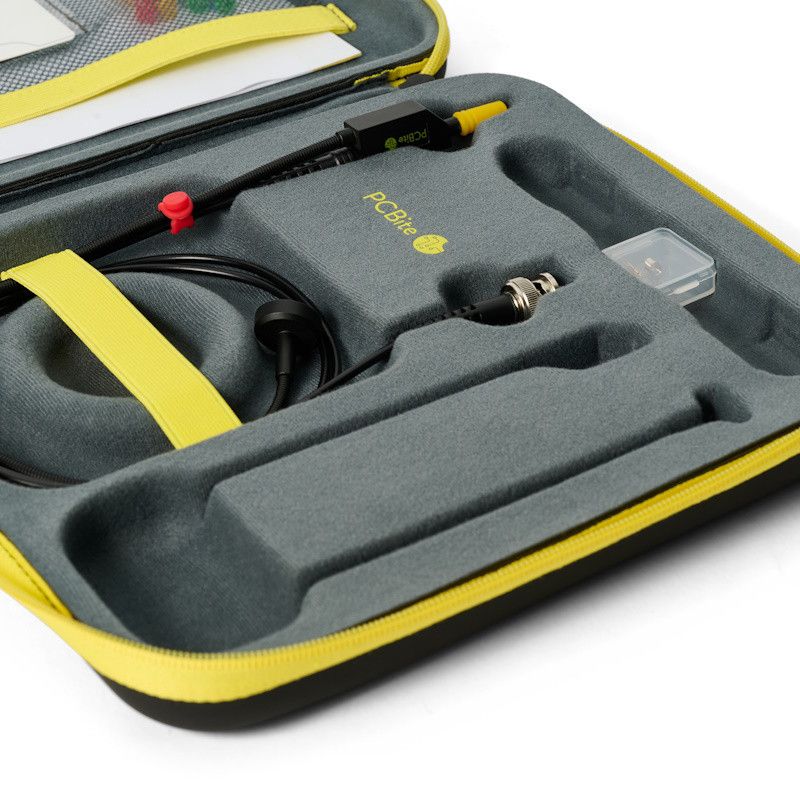

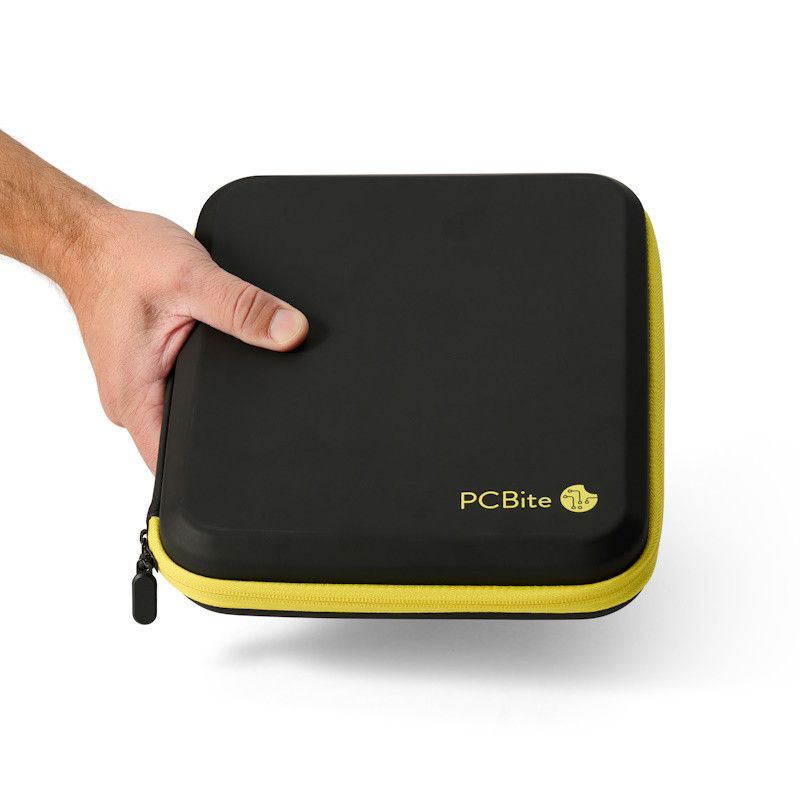

• 1x Storage case
• 1x Cable holder
• 1x Spare needle

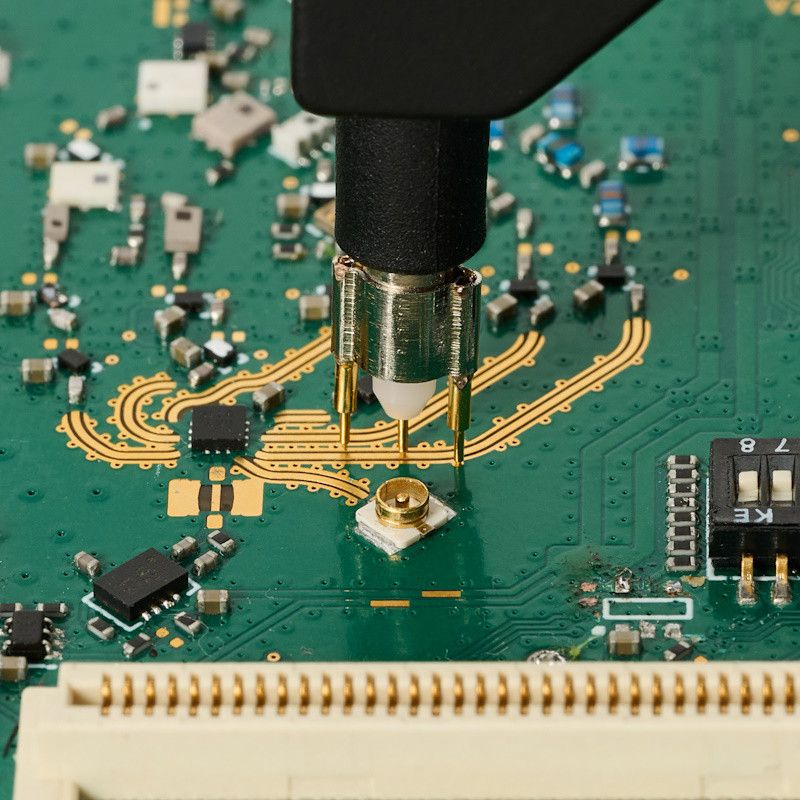

• 1x Dual grounding needle

Links

• Datasheet Sensepeek PCBite SQG series (pdf)
