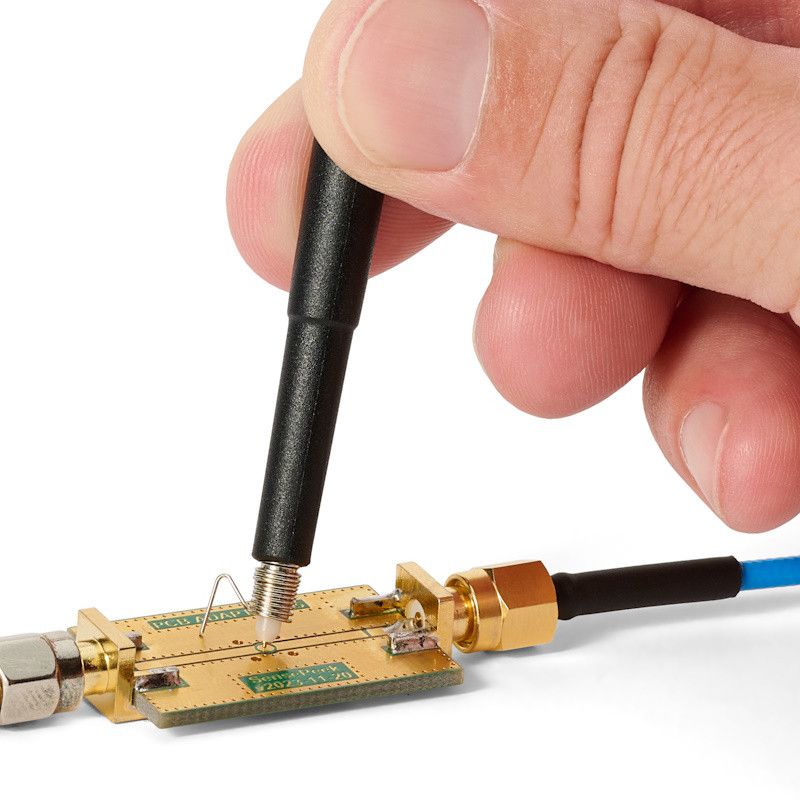

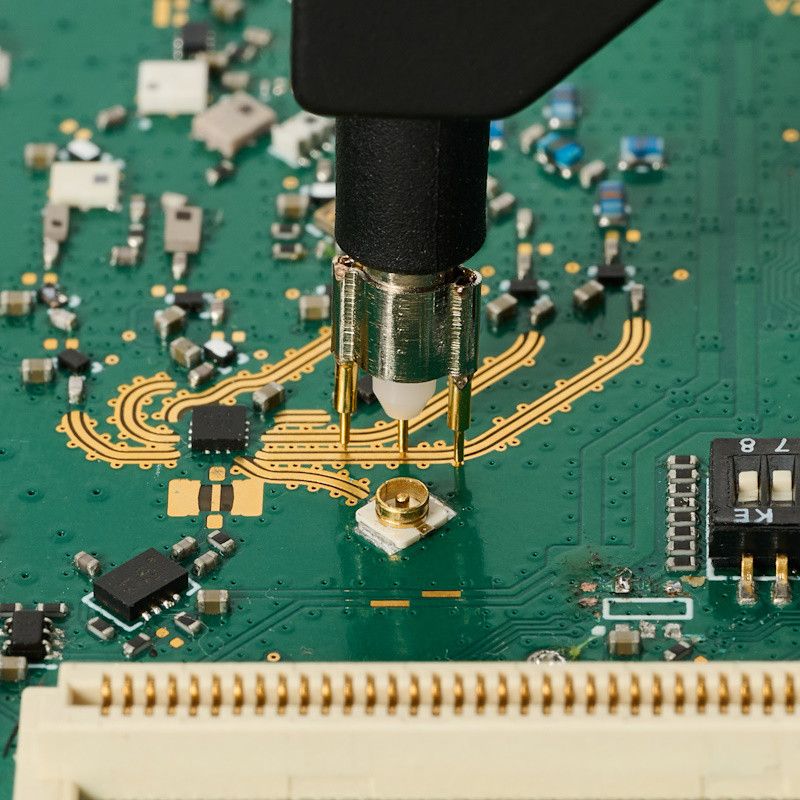

The new SQG series from Sensepeek includes GHz-range probes for AC and DC applications. The SQG series enables the user to perform repetitive or time-consuming measurements in the GHz frequency range without complex setups or soldering to the measurement target.

Thanks to the probe tip's exceptionally low capacitance, the SQG series minimizes signal distortion and prevents capacitive loading, making it ideal for sensitive circuits where preserving signal integrity is critical. Whether operating in a high-frequency environment to measure RF signals or handling high data rates, these probes are designed to manage high data speeds while keeping signals sharp and accurate. In addition, they offer an exceptionally flat frequency response, ensuring unmatched accuracy across a wide frequency range.

Features

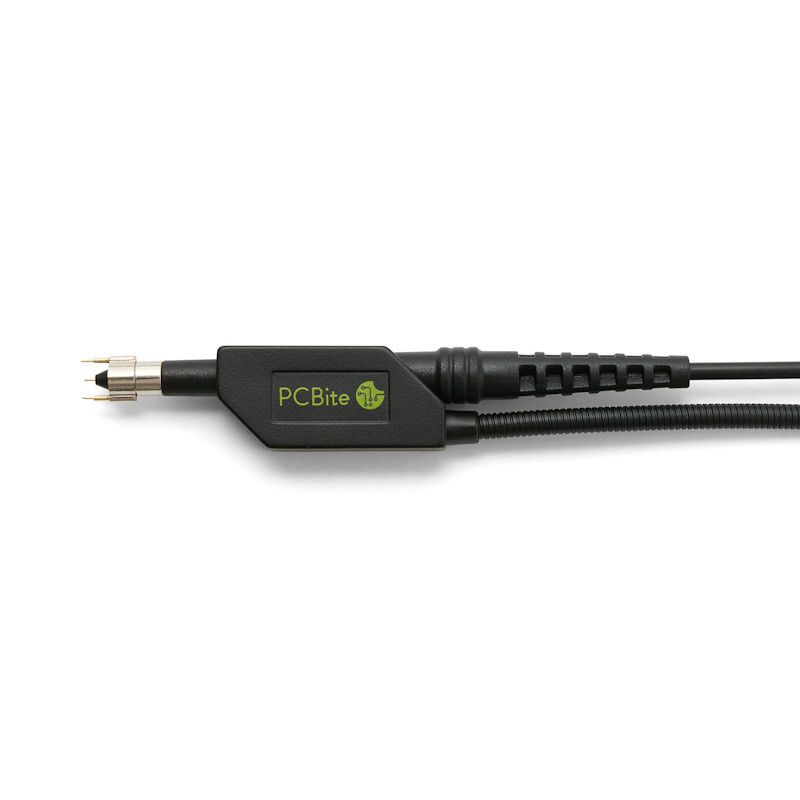

• Passive 10:1 AC probe optimized for use with any measurement instrument that has a 50 Ω input impedance path
• Probe tip impedance 500 Ω
• Available data rate is over 12 Gbps, making it ideal for high-speed signal measurement applications
• Exceptionally low probe tip capacitance, under 0,69 pF, prevents capacitive loading
• Flat frequency response (+/- 0,5 dB) from 1,15 kHz - 4,8 GHz
• Maximum signal ripple (+/-) 0,065 dB at 3 GHz and 0,15 dB at 6 GHz

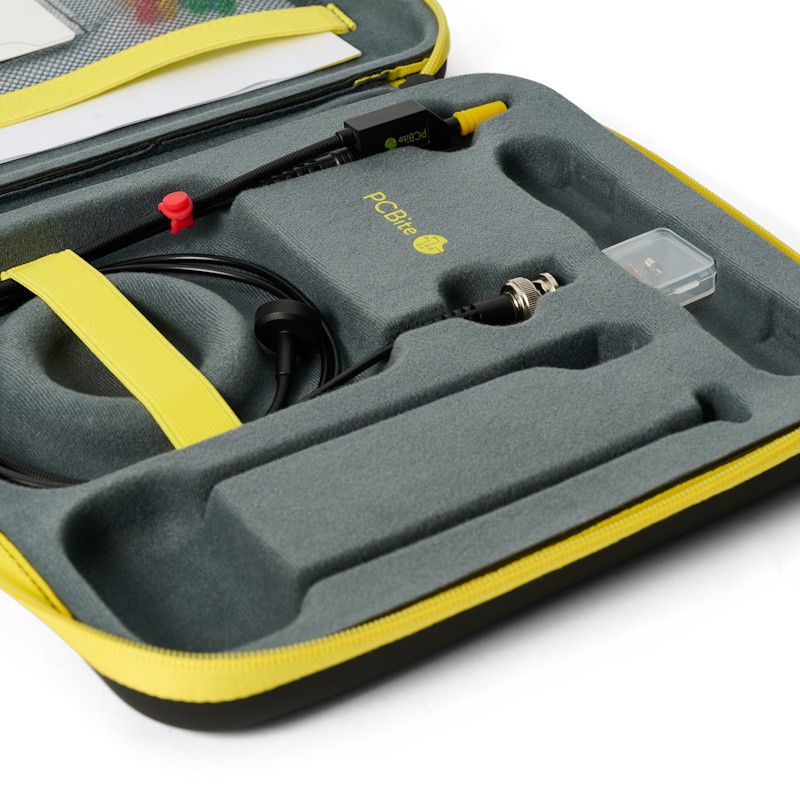

The series includes

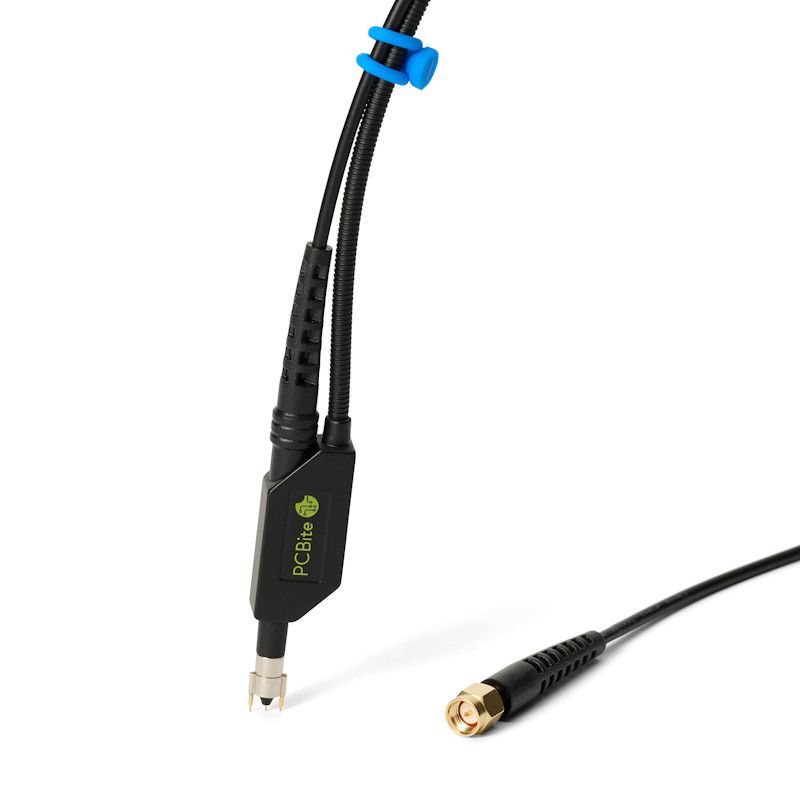

• 1x probe with magnetic base

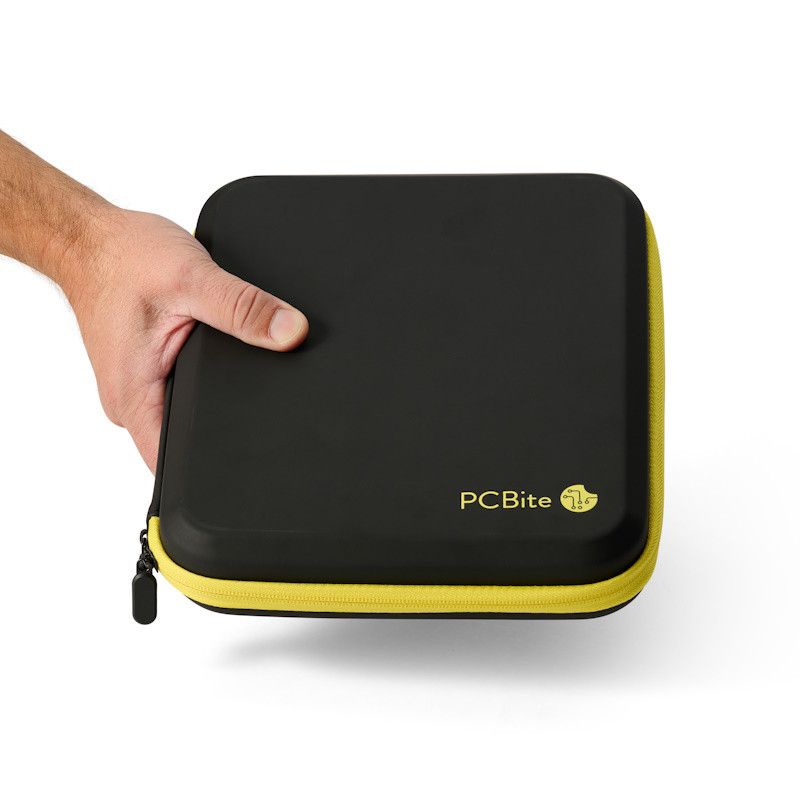

• 1x storage case
• 1x cable holder
• 1x spare needle
• 1x dual grounding needle

Links

• Datasheet Sensepeek PCBite SQG series (pdf)
