The new SQG series from Sensepeek includes GHz-range probes for AC and DC applications. The SQG series enables the user to perform repetitive or time-consuming measurements in the GHz frequency range without complex setups or soldering to the measurement target.

Thanks to the exceptionally low probe-tip capacitance, the SQG series minimizes signal distortion and prevents capacitive loading, making it ideal for sensitive circuits where preserving signal integrity is critical. Whether operating in high-frequency environments to measure RF signals or handling high data rates, these probes are designed to manage high data speeds while keeping signals sharp and accurate. In addition, they provide an exceptionally flat frequency response, ensuring unparalleled accuracy across a wide frequency range.

Features

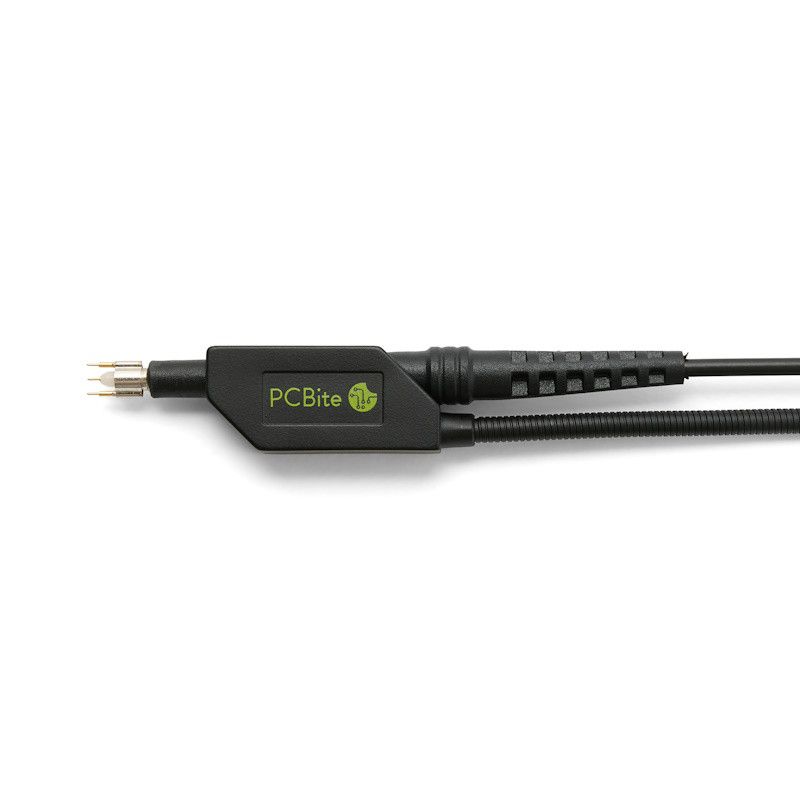

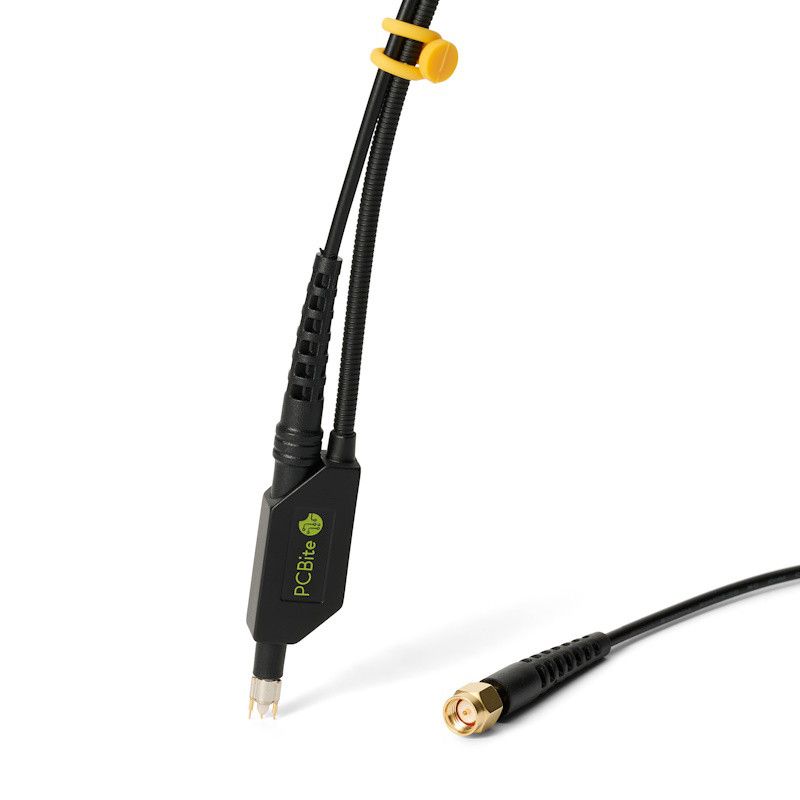

• Passive 10:1 AC probe optimized for use with any measurement device that has a 50 Ω input impedance path
• Probe tip impedance 500 Ω
• Available data rate is over 6 Gbps, making it ideal for high-speed signal measurement applications
• Exceptionally low probe-tip capacitance, under 1.31 pF, prevents capacitive loading
• Flat frequency response (+/- 0.5 dB) from 1.0 kHz - 2.6 GHz

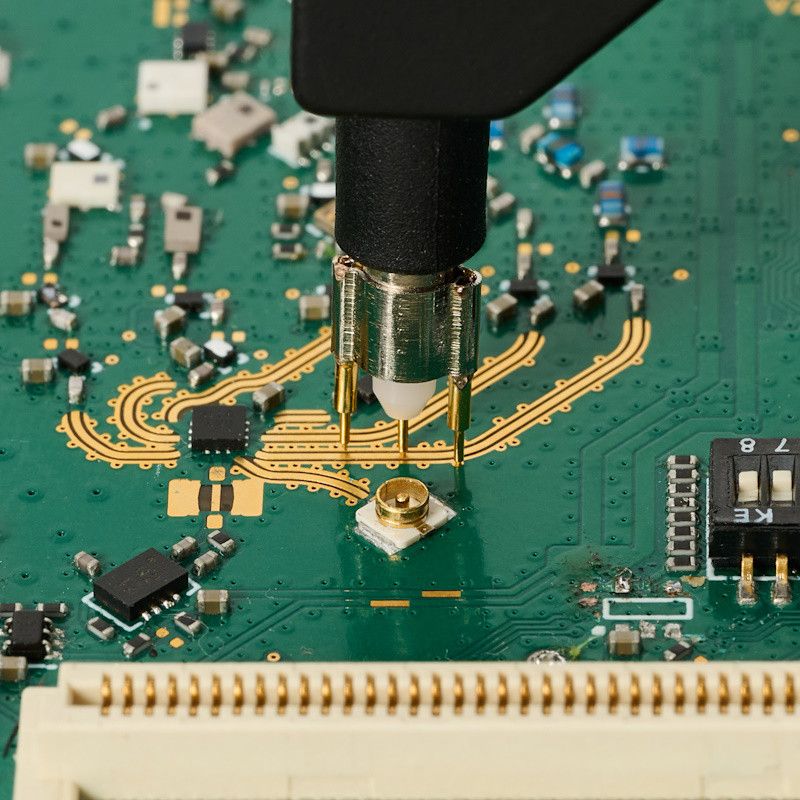

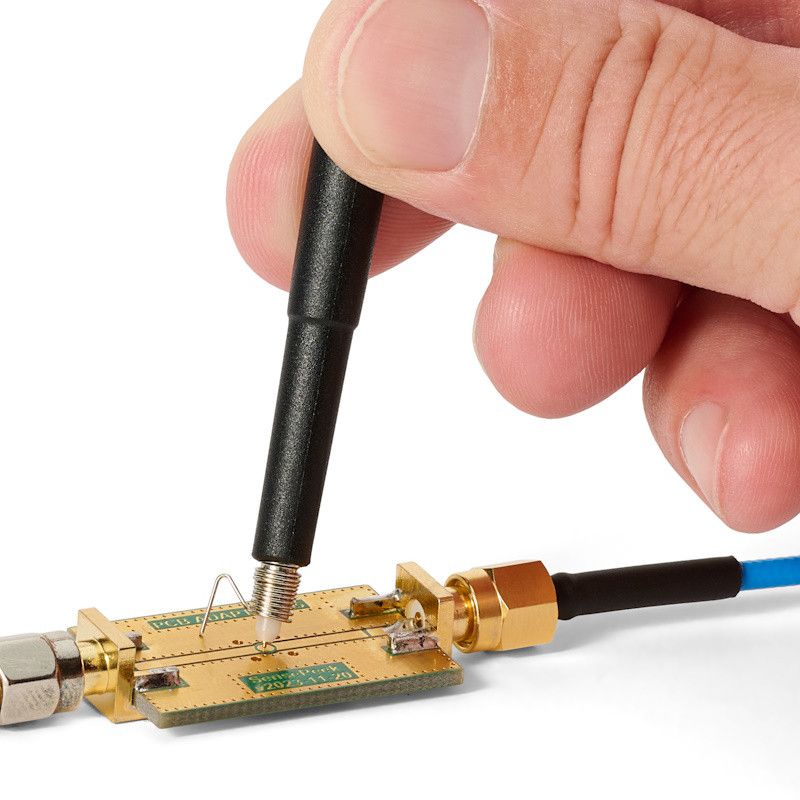

• Up to 2 GHz single-ended — and over 3 GHz with the dual-ground probe tip

Series includes

• 1x probe with magnetic stand

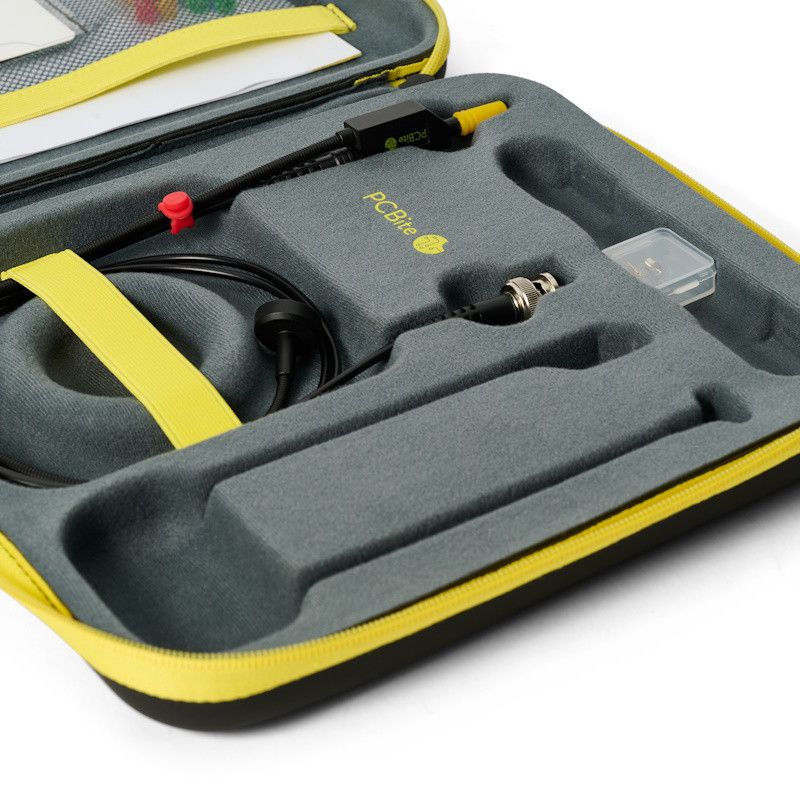

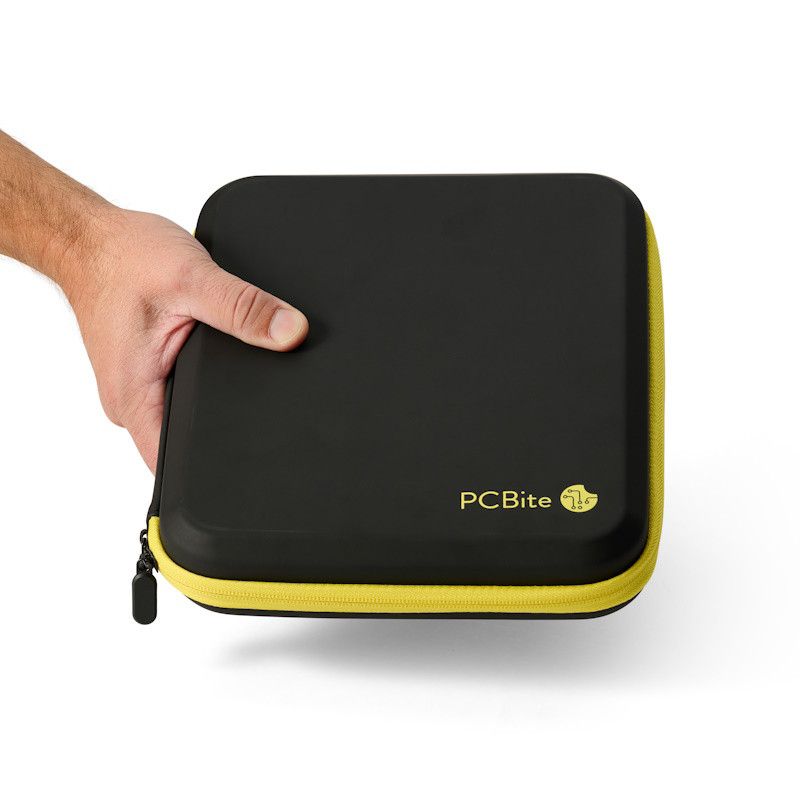

• 1x storage case
• 1x cable holder
• 1x spare needle
• 1x dual-ground needle
• 1x grounding spring

Links

• Datasheet Sensepeek PCBite SQG series (pdf)
