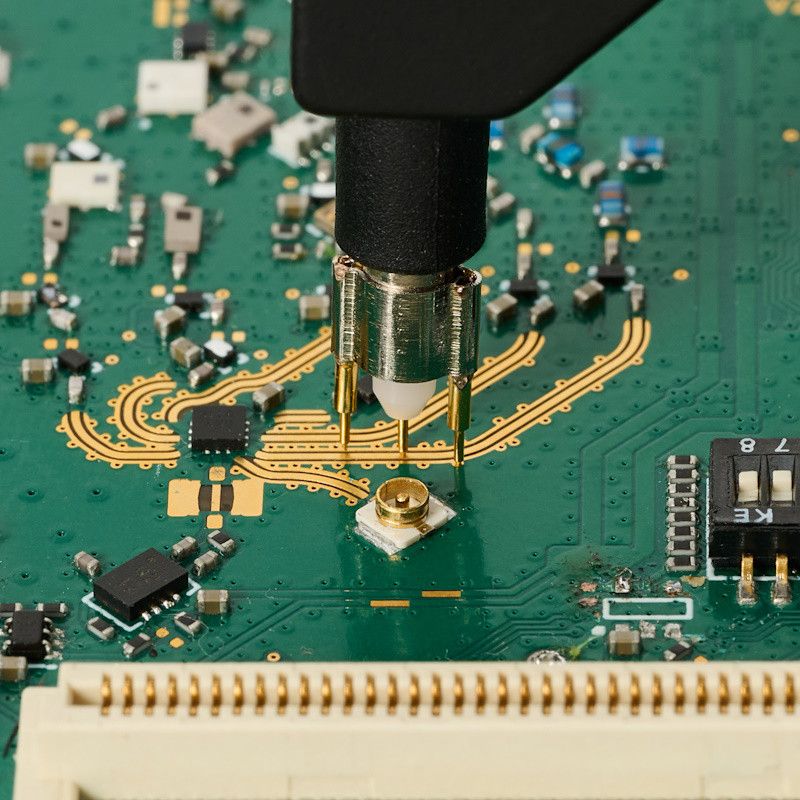

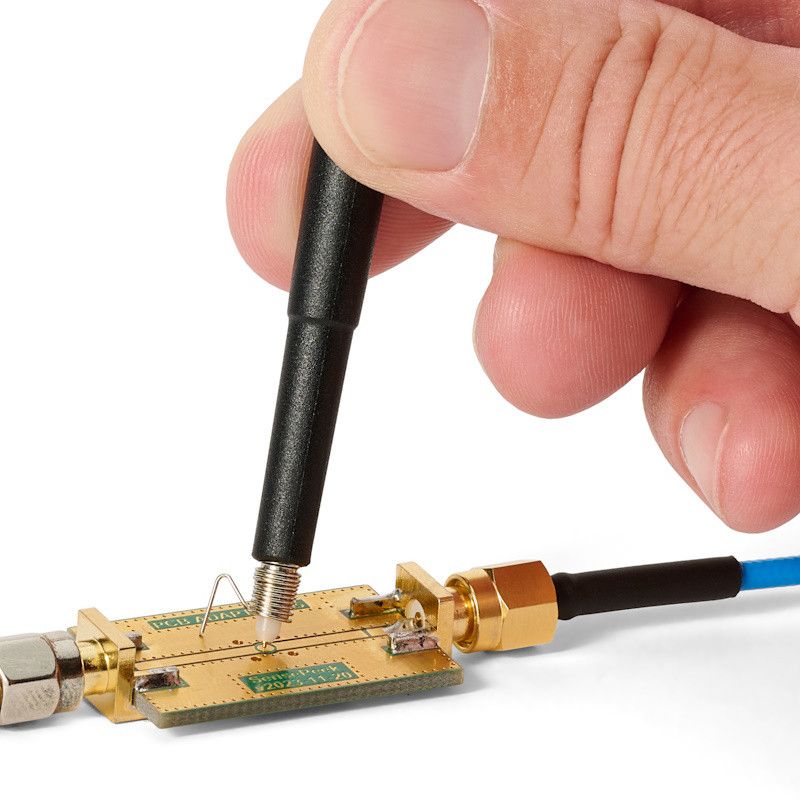

The new SQG series from Sensepeek includes GHz-range probes for AC and DC applications. The SQG series allows the user to perform repetitive or time-consuming measurements in the GHz frequency range without complicated setups or soldering to the DUT.

Thanks to the exceptionally low probe capacitance, the SQG series minimizes signal distortion and prevents capacitive loading, making it ideal for sensitive circuits where preserving signal integrity is critical. Whether operating in high-frequency environments to measure RF signals or handling high data rates, these probes are designed to manage high data speeds while keeping signals sharp and accurate. In addition, they offer an exceptionally flat frequency response, ensuring unmatched accuracy across a wide frequency range.

Features

• Passive 10:1 DC probe optimized for use with any measurement device that has a 50 Ω input impedance path
• Sensor tip impedance 500 Ω
• Available data rate over 3 Gbps, making it ideal for high-speed signal measurement applications
• Continuous voltage up to 16 V
• Flat frequency response (±0.5 dB) in the 0 - 1.5 GHz range
• Return loss on the measured line, typically -26 dB to -11.5 dB in the 0 - 1.5 GHz range

The series includes

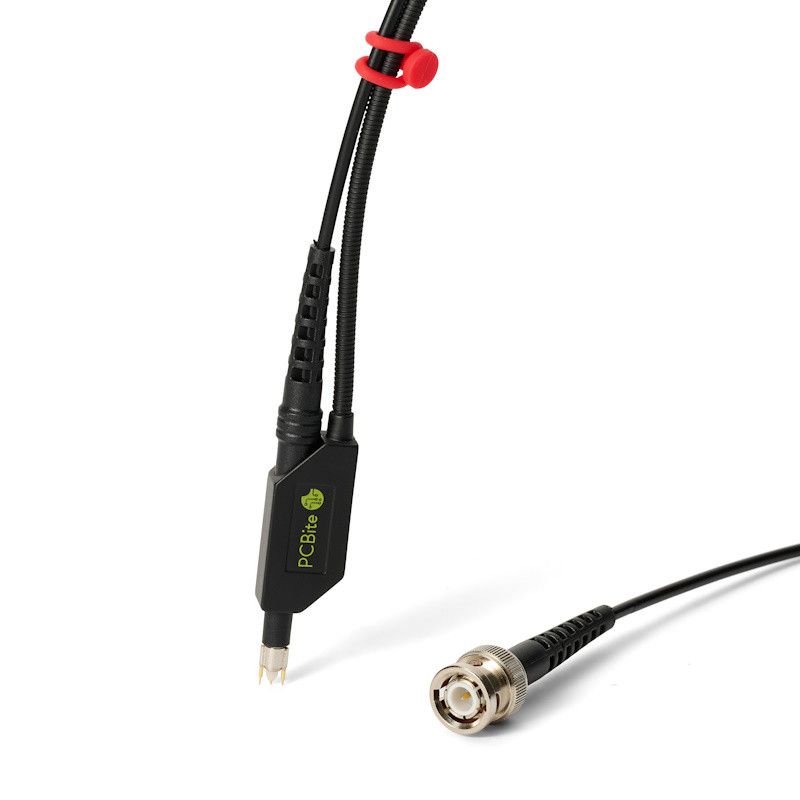

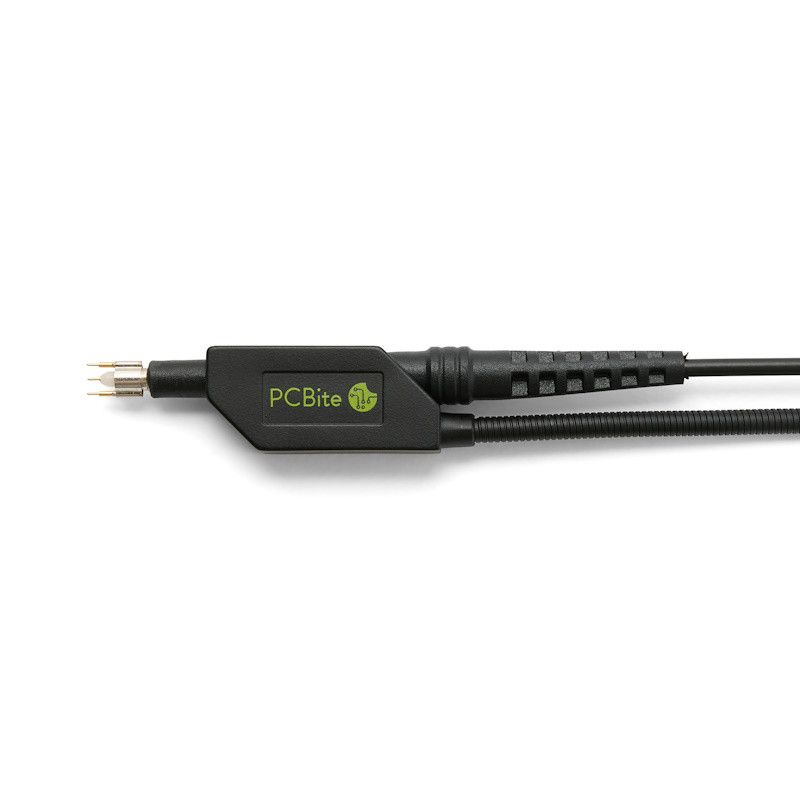

• 1x probe with magnetic stand

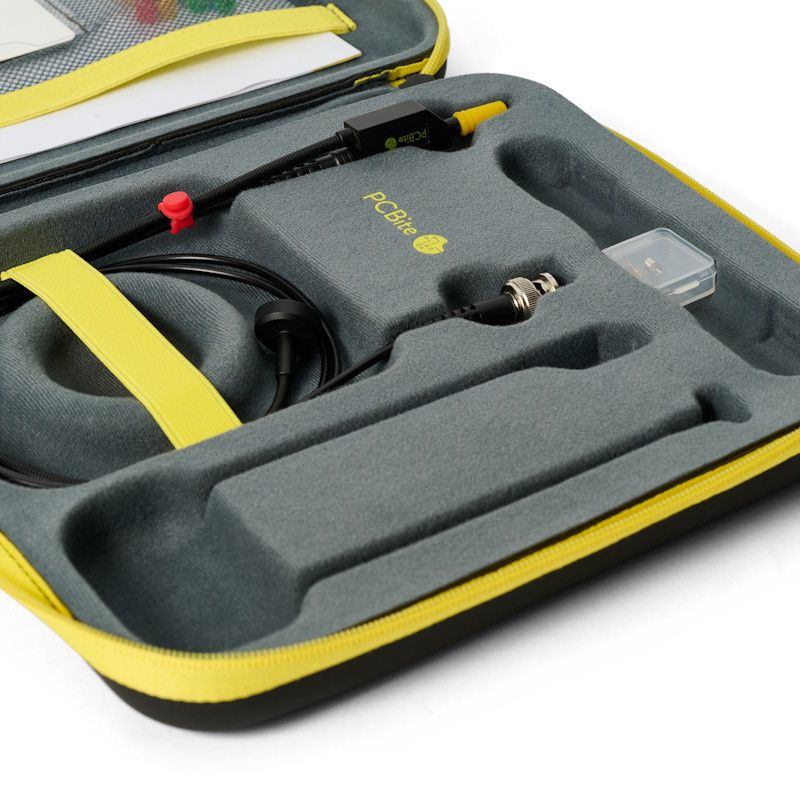

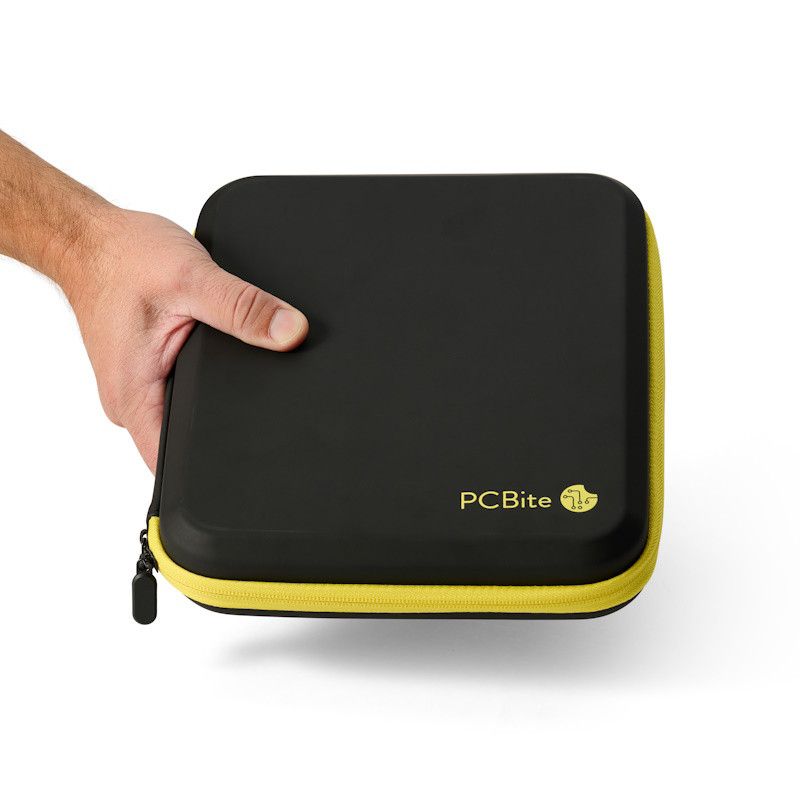

• 1x storage case
• 1x cable holder
• 1x spare needle
• 1x dual grounding needle
• 1x grounding spring

Links

• Datasheet Sensepeek PCBite SQG series (pdf)
