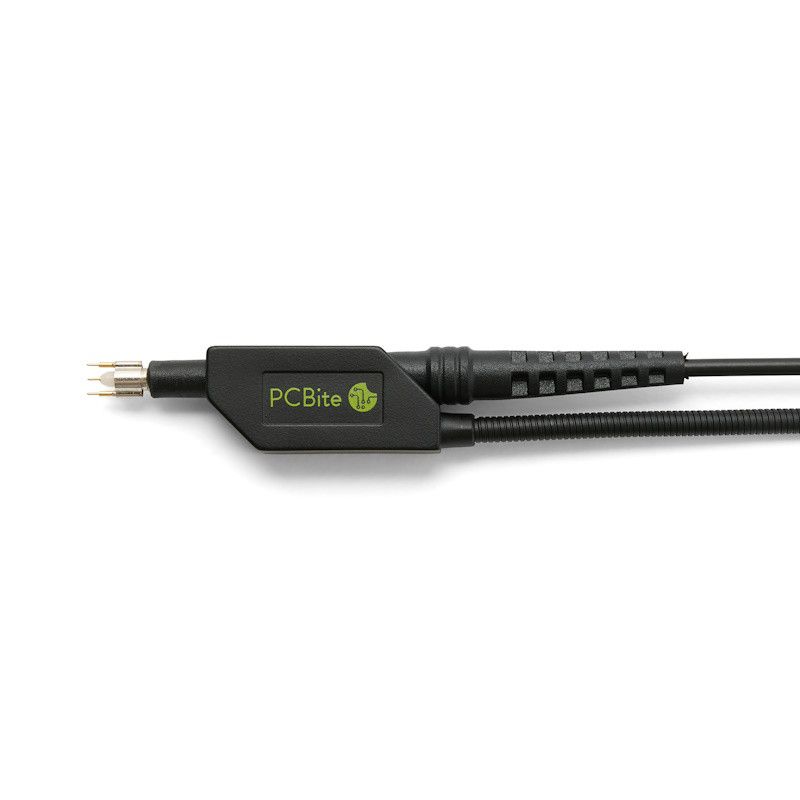

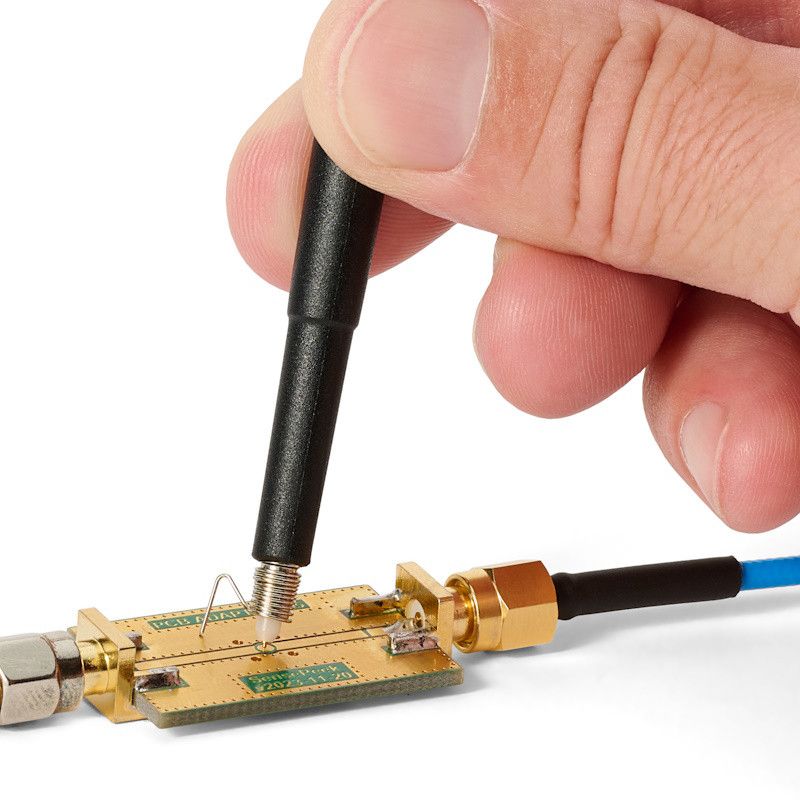

The new SQG series from Sensepeek includes GHz-frequency range probes for AC and DC applications. The SQG series enables the user to perform repetitive or time-consuming measurements in the GHz frequency range without complex setups or soldering to the measurement target.

Thanks to the exceptionally low probe-tip capacitance, the SQG series minimizes signal distortion and prevents capacitive loading, making it ideal for sensitive circuits where preserving signal integrity is crucial. Whether operating in a high-frequency environment to measure RF signals or handling high data rates, these probes are designed to manage high data speeds while keeping signals crisp and accurate. They also offer an exceptionally flat frequency response that ensures unparalleled accuracy over a wide frequency range.

Features

• Passive 10:1 AC probe optimized for use with any measurement instrument that has a 50 Ω input impedance path
• Probe tip impedance 500 Ω
• Available data rate over 3 Gbps, making it ideal for high-speed signal measurement applications
• Exceptionally low probe-tip capacitance, under 1.36 pF, prevents capacitive loading
• Flat frequency response (+/- 0.5 dB) from 1.0 kHz - 1.5 GHz
• Return loss on the measured line, typically -26 dB - -11 dB in the 0 - 1.5 GHz range

The series includes

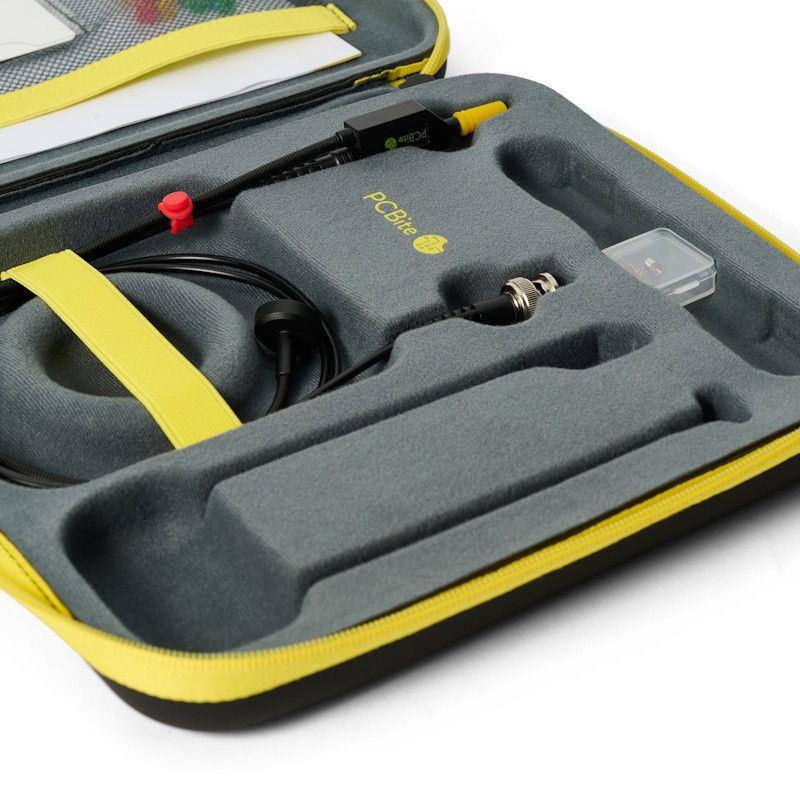

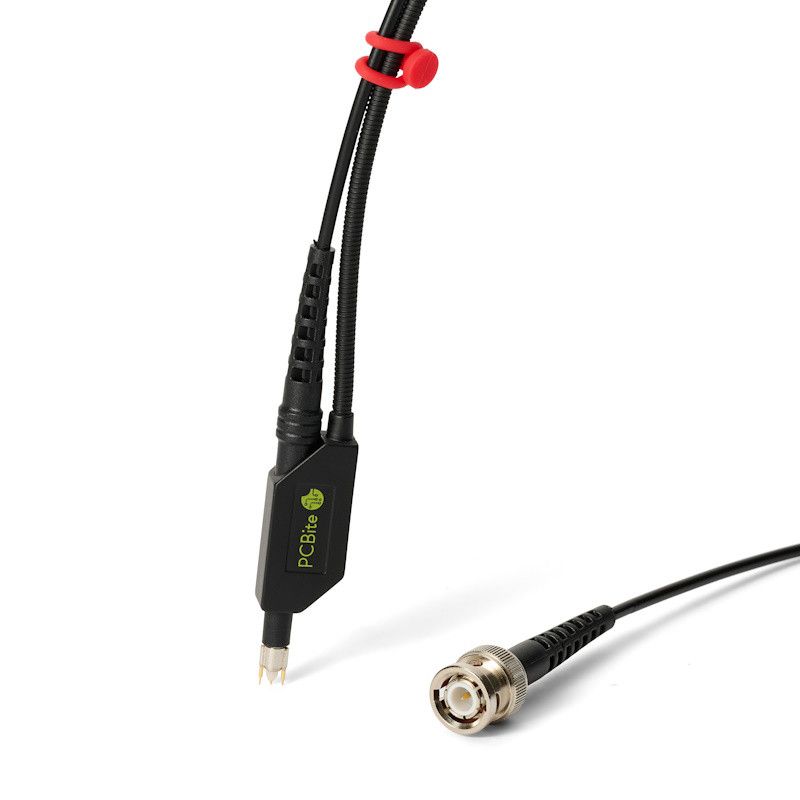

• 1x probe with magnetic stand

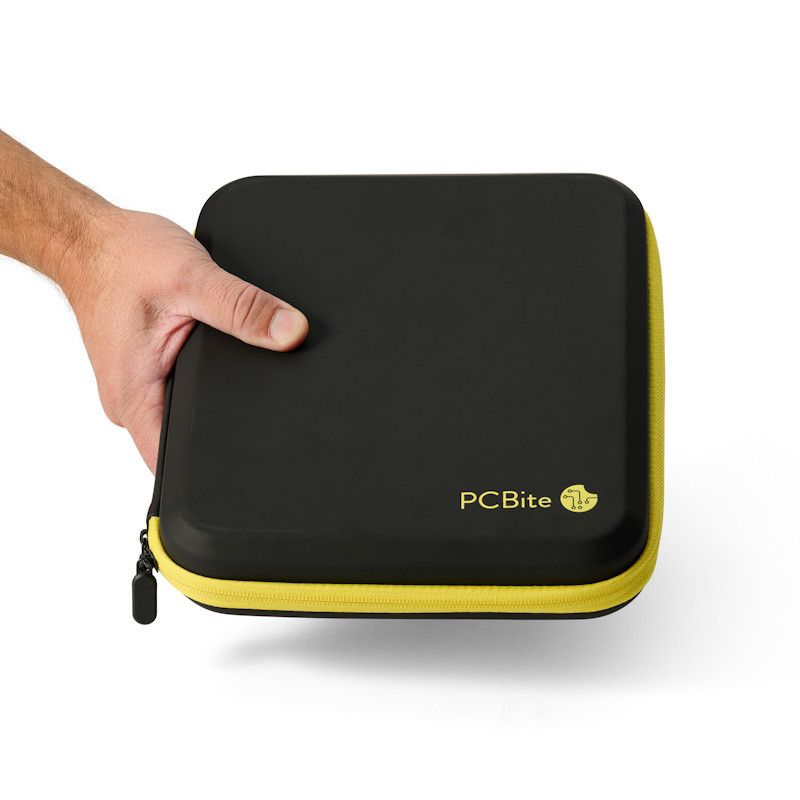

• 1x storage case
• 1x cable holder
• 1x spare needle
• 1x dual-grounding needle
• 1x grounding spring
