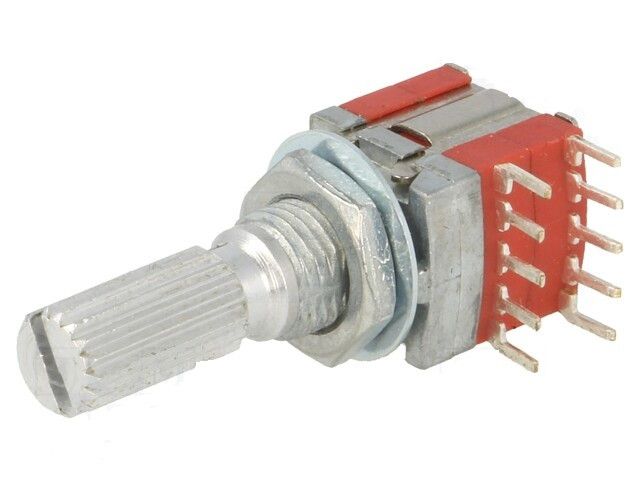

PCB ROTARY SWITCH 2-POLE 3-POSITION
Temporarily out of stock
SKU#: KIERTOKYTKIN-2X3
PCB ROTARY SWITCH 2-POLE 3-POSITION
Temporarily out of stock
SKU#: KIERTOKYTKIN-2X3

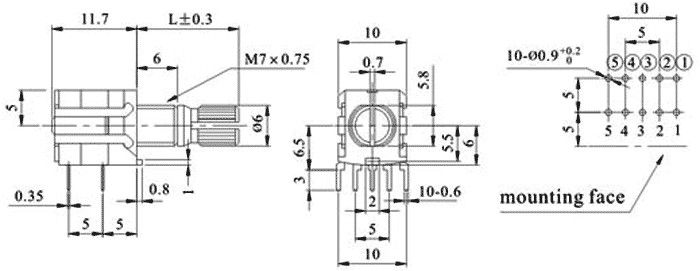

- three positions at 30° intervals
- mounting hole Ø 7,0 - plate 4 mm
- shaft Ø 6 x 7 mm
- housing dimensions 12,5 x 11 x 10 mm
- current carrying / breaking current max. 0,1A / 50mA 16V
- service life over 10000 switching cycles
- PCB pitch 5,0 mm - fits well on inch-grid Vero board
Quantity discount
| Quantity (kpl) | Price | |
|---|---|---|
| 10+ | undefined% | 3,02 € |
3,46 €
Temporarily out of stock in the online store
Product Description
Product Information
- Availability Temporarily out of stock in the online store
- Product path Home ComponentsElectromechanical ComponentsSwitchesRotary Switches PCB ROTARY SWITCH 2-POLE 3-POSITION
- SKU KIERTOKYTKIN-2X3
