TE Connectivity 3-1393210-3 Power relay 12 VDC

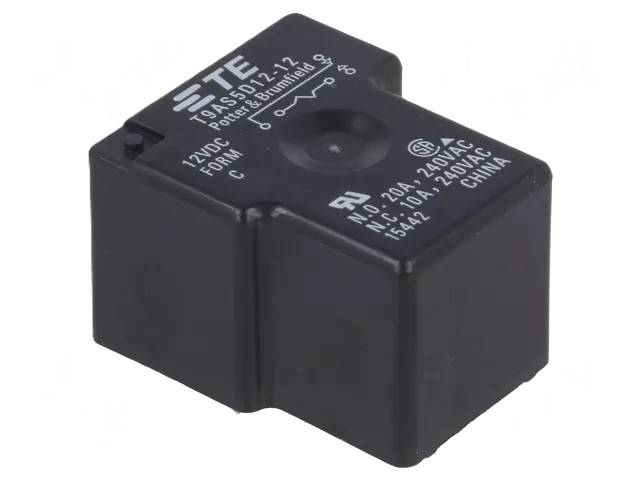

TE Connectivity 3-1393210-3 (T9AS5D12-12) is a T9A-series power relay suitable for HVAC, appliance and industrial control applications. The relay has a 12 VDC coil, 1 changeover contact (SPDT / 1CO) and a high load capacity up to 20 A for the NO contact. The model is sealed in a plastic housing and intended for printed circuit board mounting.

Technical specifications

• Manufacturer: TE Connectivity
• Manufacturer part number: 3-1393210-3
• Series number: T9AS5D12-12
• Coil voltage: 12 VDC
• Coil power: 1 W
• Contact configuration: SPDT (1CO)
• Load capacity: 20 A (NO) / 10 A (NC)
• Maximum switching voltage: 277 VAC
• Contact material: AgCdO
• Mounting method: printed circuit board (THT)
• Enclosure: sealed plastic housing
• Operating temperature: -55 ... +85 °C
• Dimensions: 32,5 × 27,4 × 27,9 mm

Features

• High load capacity in a compact size
• Compatible with T9A-series standard footprint
• High dielectric strength for industrial use
• Suitable for HVAC, automation and equipment applications
• PCB-mountable construction

Applications

• Air conditioning and heating equipment
• Industrial automation
• Motor and compressor controls
• Power supplies
• Appliances
