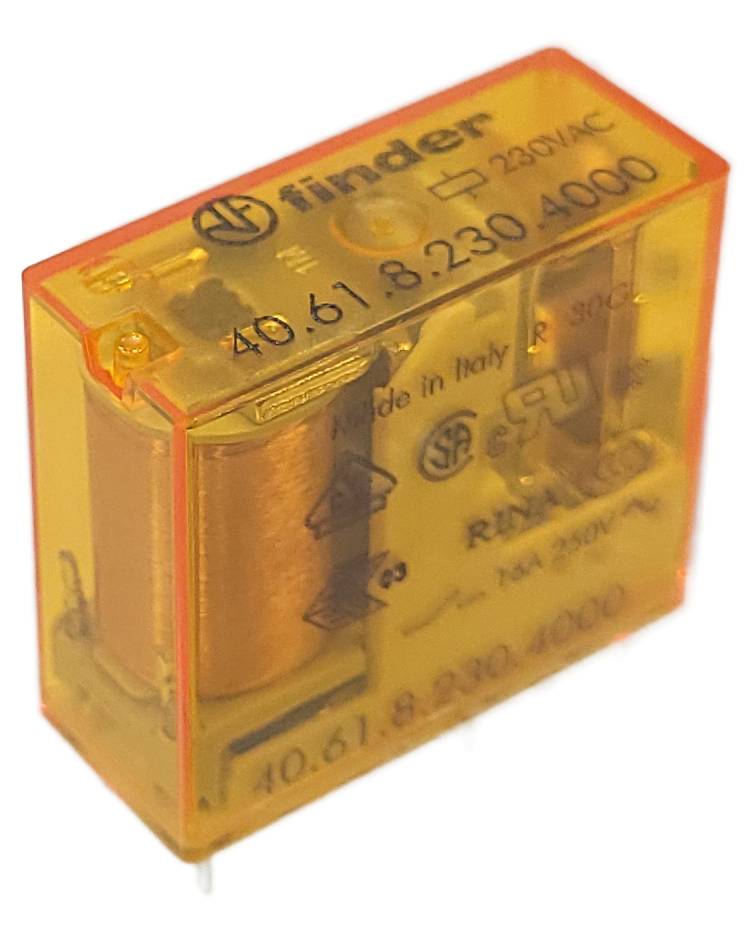

Finder 40.61.8.230.4000 is a compact and reliable PCB-mount industrial relay (THT) that is ideal for automation, control and distribution panel applications. The relay has one changeover contact (1CO) and can handle loads up to 16 A.

Technical specifications

• Contact type: 1 x changeover contact (SPDT / 1CO)
• Coil voltage: 230 VAC
• Rated current: 16 A
• Max switching voltage: 400 VAC / 220 VDC
• Coil resistance: ~28 kΩ
• Coil power: ~1.2 VA
• Coil operating voltage: approx. 184–253 VAC
• Contact material: AgSnO2
• Switching capacity: 4000 VA

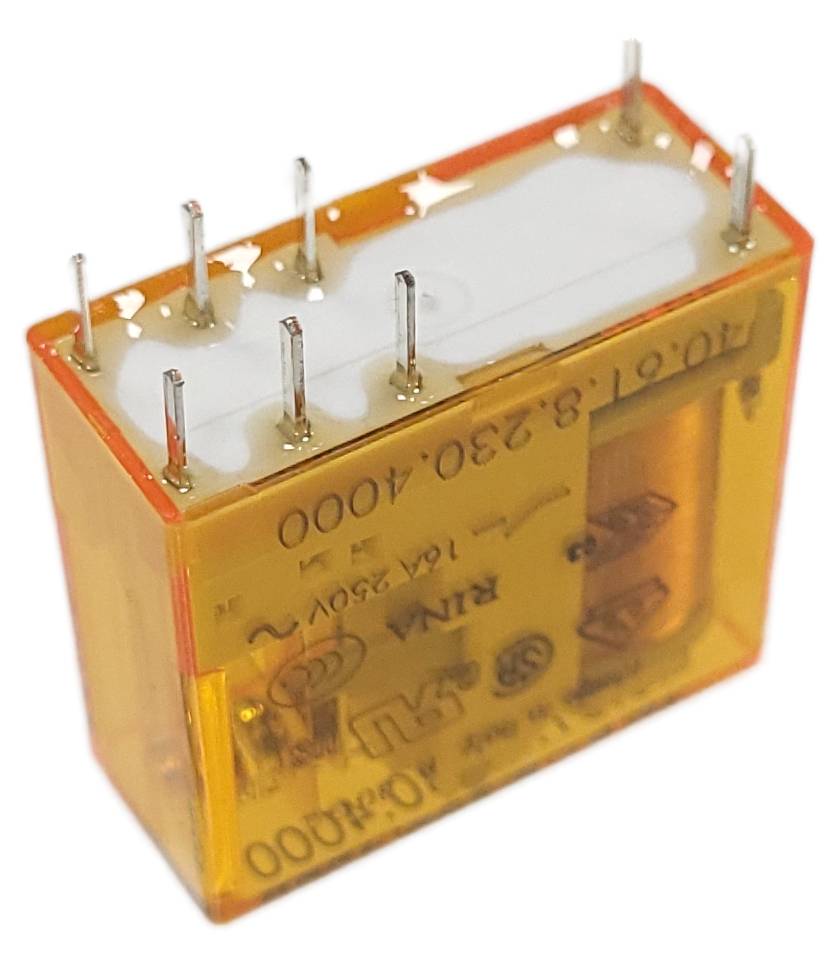

Mechanical data

• Dimensions: 29 x 12.4 x 25 mm
• Mounting: THT / PCB or socket (Finder 95 series)
• Pin pitch: 5 mm
• Operating temperature: -40...+85 °C

Applications

• Industrial automation
• Control panels
• Building automation
• PLC and I/O controls

Additional information

Finder 40-series relays are known for high insulation and long service life. Suitable for both PCB use and DIN-rail installation with a separate socket.
