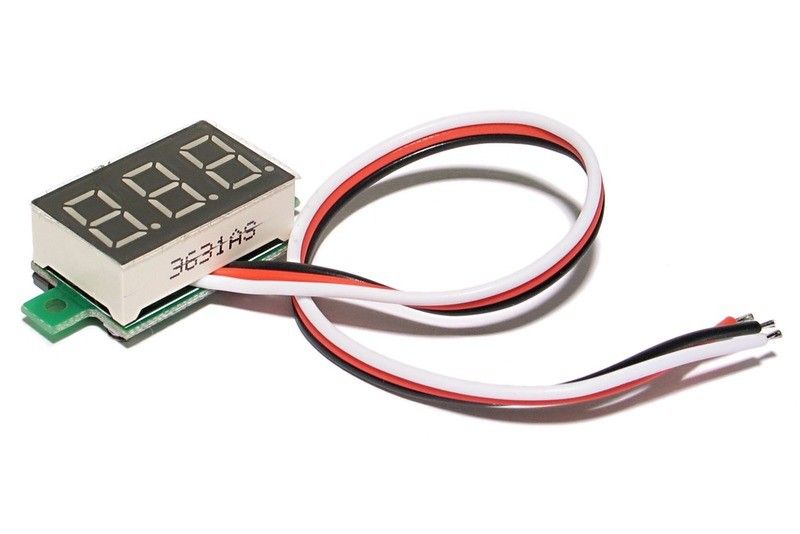

• three green digits - display shows reading x.yy or xx.y
• display refresh interval approx. 0.5s, accuracy about 1%
• supply voltage: 3...30VDC
• measurement range: 0...100VDC (recommended value under 48VDC)
• separate measurement lead for measured voltage (white)
• frame outer dimensions: 22 x 14 mm
• distance between mounting holes: approx. 28 mm
• required space at the back approx. 11 mm
• lead length approx. 15 cm

Note! Not for professional use, not to be used as part of a working device. Quality grade suitable for prototyping.
