• measurement voltage range: 0-50VDC
• measurement current range: 0-5A

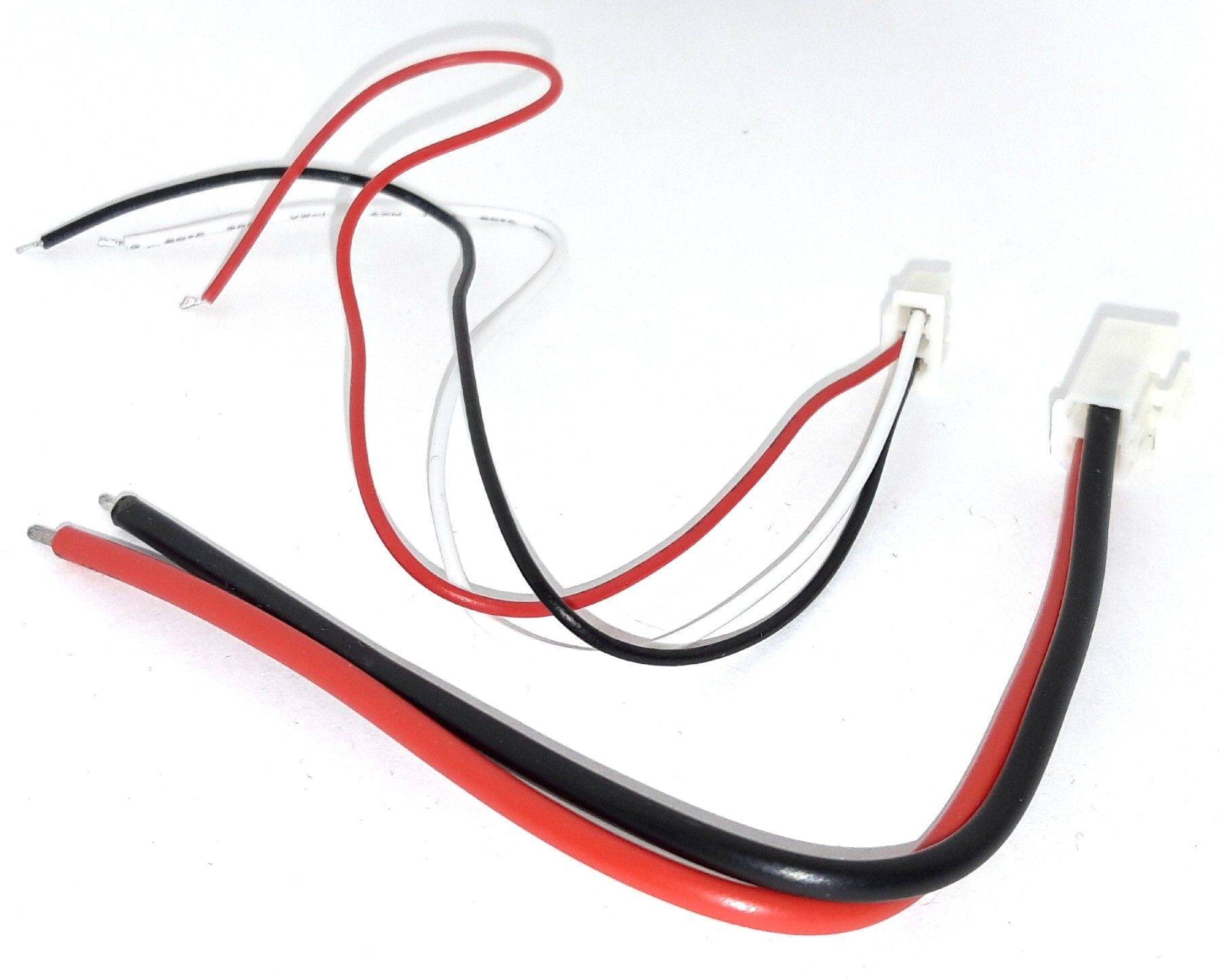

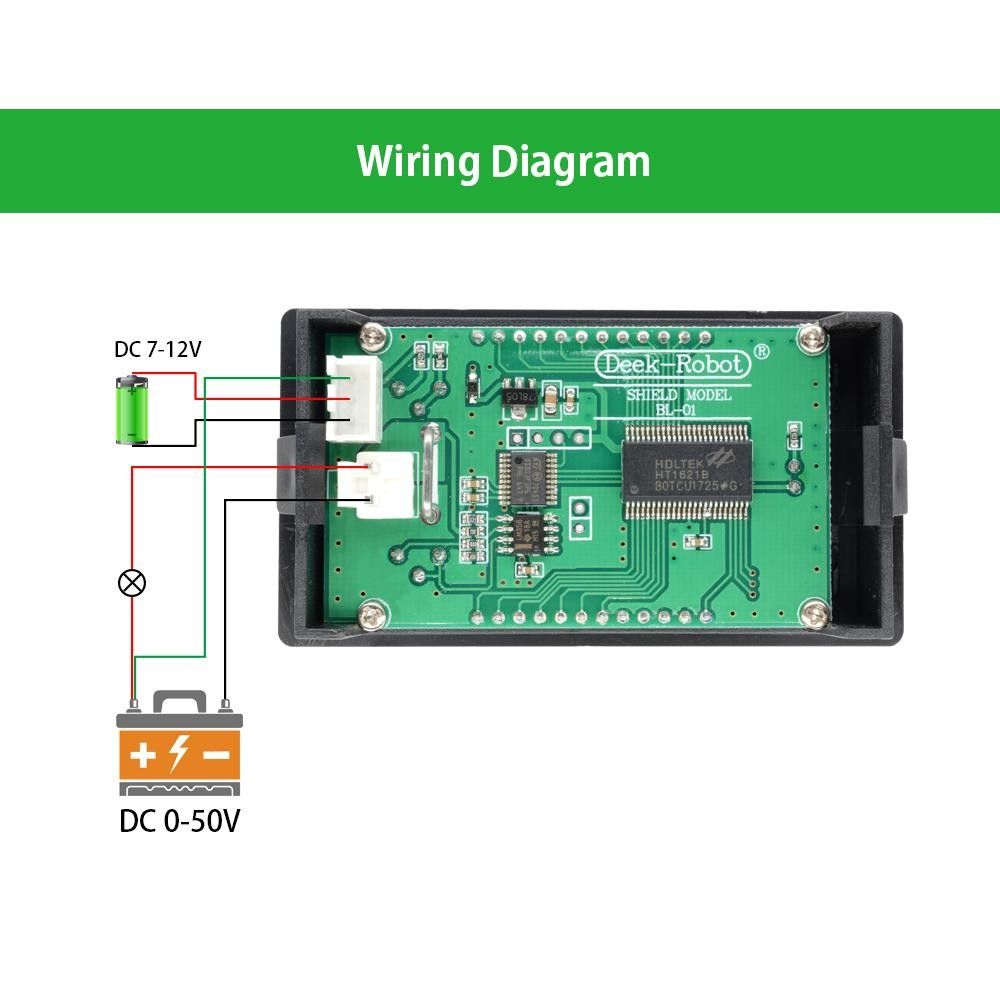

• wires:
  • thick red+black: measured load
  • thin red+black: supply for the meter 7-30VDC 20mA
  • thin white: voltage measurement of the measured load (+)
• cutout: 74 x 40mm -panel 1mm
• required space in the enclosure approx. 35 mm

Note! Not for professional use, not part of a functional device. Quality level is suitable for prototyping.
