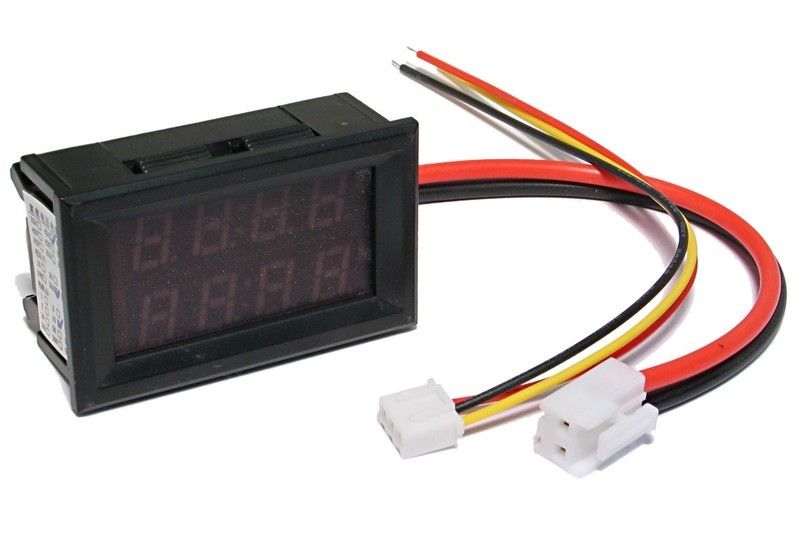

• measurement voltage range: 0-200VDC
• measurement current range: 0-10A
• two wiring methods:

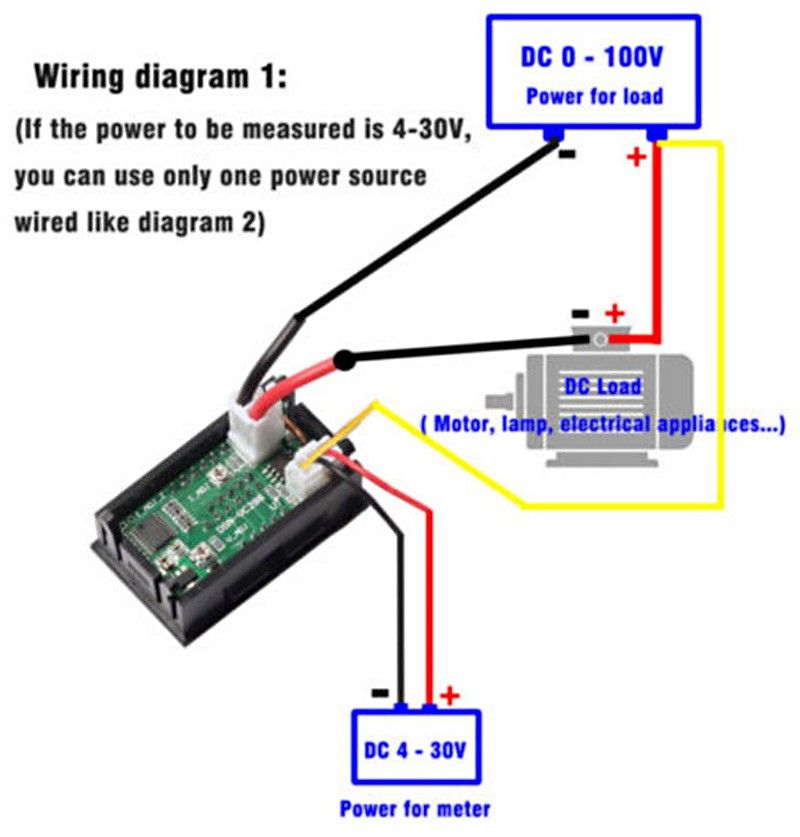

  • separate power supply for the meter (see picture Wiring diagram 1)

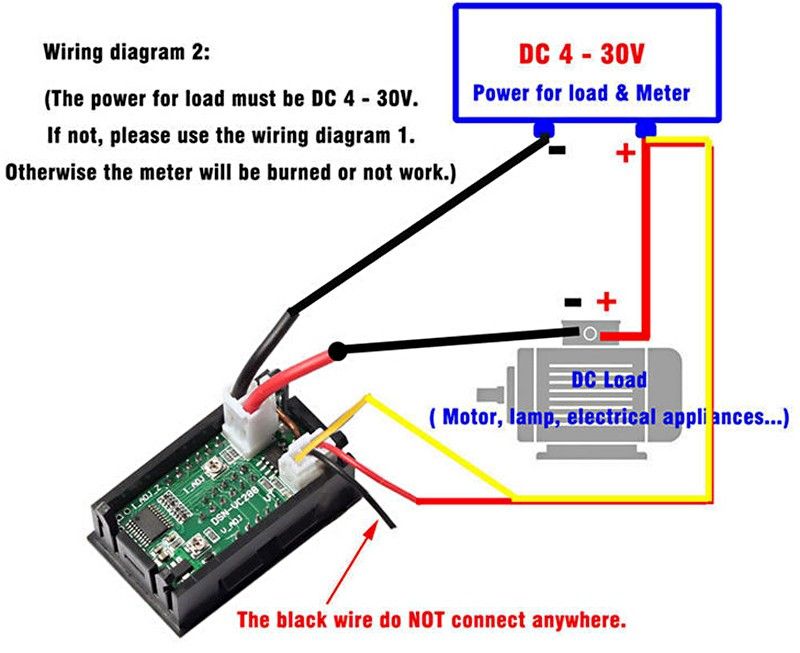

  • for measurements under 30V direct connection to the load (see picture Wiring diagram 2)

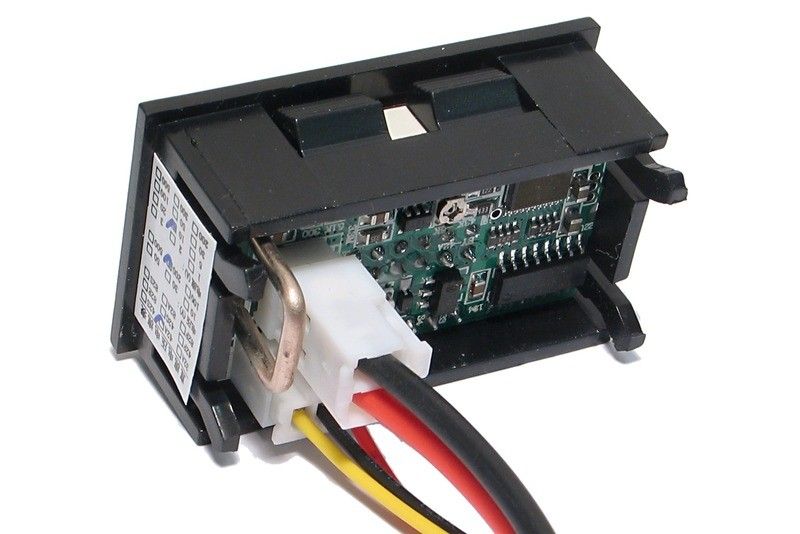

• wires:
  • thick red+black: measured load
  • thin red+black: operating power for meter 3.5-30VDC 20mA
  • thin yellow: voltage measurement of the measured load (+)
• mounting hole: 45,2 x 25,8 mm - panel 4mm
• required depth in enclosure approx. 30 mm

Note! Although the specified measurement voltage range reaches 200VDC, the product should be used for measurements under 48VDC.

Note! Not for professional use, not to be part of a functioning device. Quality level is suitable for prototyping.
