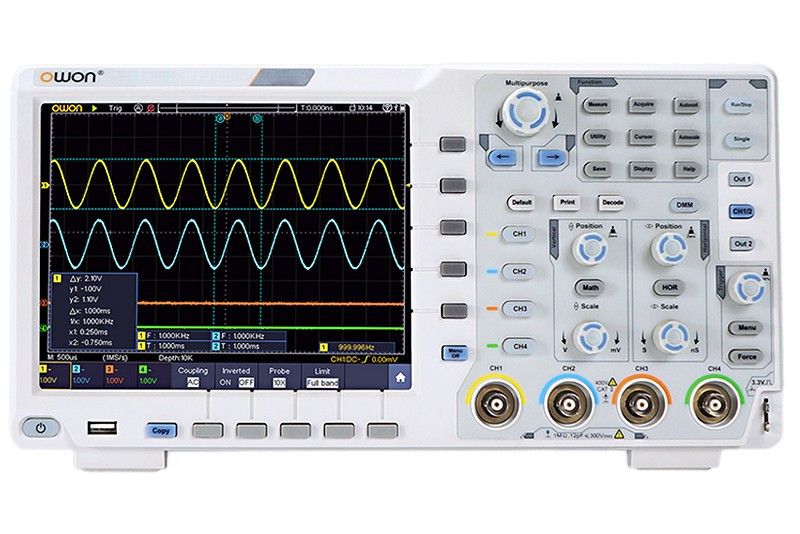

Owon XDS3104E advanced - four-channel 100MHz touchscreen benchtop oscilloscope with extras such as multimeter, signal generator, decoders, USB, WiFi and VGA.

907,85 €

Temporarily out of stock in the online store

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Features

large 8" 800x600 TFT color display
100MHz analog bandwidth
1GS/s sampling rate, depth 8 bits
40M sample memory for both channels
light and smooth design
Pass / Fail function helps verifying production runs
SCPI and LabVIEW supported
comprehensive interfaces such as Trigger output (BNC), USB, LAN and VGA

Presentation video

Specifications

Model	XDS3104E
Bandwidth	100MHz
Sample Rate	1GS/s
Vertical Resolution (A/D)	8 bits
Record length	40M
Waveform Refresh Rate	45,000 wfms/s
Horizontal Scale (s/div)	2ns/div - 1000s/div, step by 1 - 2 - 5
Channel	4
Display	8" color LCD, 800 x 600 pixels display
Sample Rate / Relay Time Accuracy	±2.5 ppm
Input Coupling	DC, AC, GND
Vertical Sensitivity	1mV/div - 10V/div (at input)
Trigger Type	Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN (optional)
Bus Decoding(optional)	I2C, SPI, RS232, CAN
Trigger Mode	Auto, Normal, and Single
Vertical Range	±2V(1mV/div～50mV/div)；±20V(100mV/div～1V/div)；±200V(2V/div～10V/div)
Waveform Math	+, -, *, /, FFT, Intg, Diff, Sqrt, and user defined function
Communication Interface	USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional)
Frequency Counter	available
Power Supply	100V - 240V AC, 50/60Hz, CAT II
Fuse	2A, T class, 250V
Battery (optional)	3.7V, 13200mA
Dimension (W x H x D)	340 x 177 x 90 mm

Module options (included)
VGA	VGA+AV output
MTS	Touchscreen, capacitive

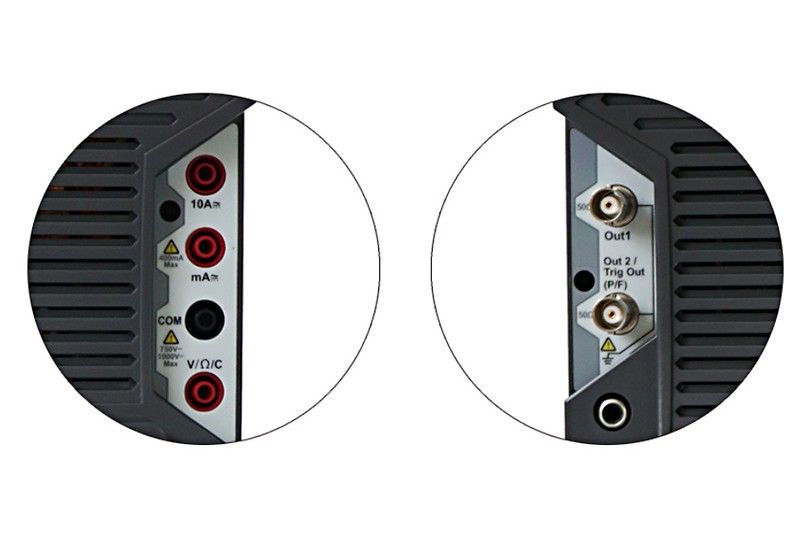

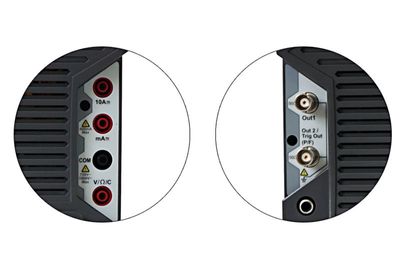

DMM	Multimeter
25M	Signal generator 25MHz
WIFI	Wireless network interface for remote access

Decoding options (included)
RS232	RS232
SPI	SPI
I2C	I2C
CAN	CAN

Package contents

Includes: XDS3104E oscilloscope with options (VGA,TOUCH,CAN,I2C,RS232,SPI,DMM,25M,WIFI), four probes, English software and user manual CD, power cable, USB cable

Finnish user manual available on request.

Product Information

Availability Temporarily out of stock in the online store
Manufacturer Owon
Product path Home Measuring Instruments Electronic Measuring Instruments Oscilloscopes Owon XDS3104E OSCILLOSCOPE 100MHZ 4CH +DMM+GEN
SKU XDS3104E-ADV
Attributes
- Size category 8 tuumaa
- Resolution 800x600
- Channels 4+1
- Bandwidth 100MHz
- Sample memory 40M
- Sampling frequency 1GS/s
- Sample resolution 8bit
- Manufacturer's model XDS3104E (VGA, TOUCH, CAN, I2C, RS232, SPI, DMM, 25M)
- Click for more details https://www.owon.com.hk/products_owon_xds3000-e_series_4ch_8_|_14bit_touchscreen_digital_oscilloscope
- Dimensions 340 x 177 x 90 mm
- Factory delivery time 4 weeks
- Instructions for use English; Finnish available on request (PDF format)
