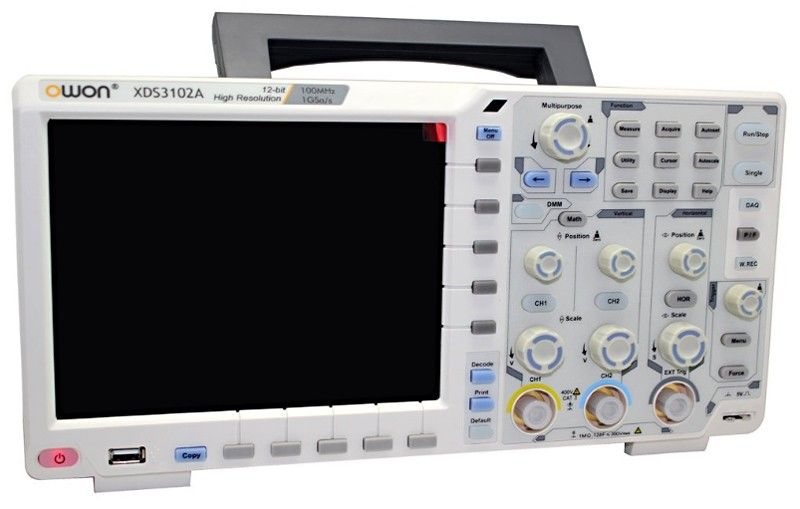

This scope model is well suited to the lab bench due to its versatility. Various measurement setup aids in one device. Suitable applications include e.g. education, product development, and production testing.

• versatile 2-channel DSO oscilloscope
• large 8" 800x600 color TFT touchscreen
• 100MHz analog bandwidth
• sampling rates: 8-bit 1GS/s, 12-bit 500MS/s
• 40MSa sample memory
• low background noise
• wide vertical sensitivity 1mV/div - 10V/div
• integrated 25MHz signal generator (option installed)
• integrated 3 DMM multimeter function (option installed)
• serial bus debugging (SPI, I2C, RS232, CAN options installed)
• extensive interfaces such as USB, VGA, LAN and Wifi (options installed)
• electronic circuit debugging circuit testing design and manufacture education and training

Included: XDS3102A oscilloscope equipped with additional options, two probes, DMM test leads, English software and user manual CD

Finnish user manual available upon request.

Note! Available separately with a 16-ch logic analyzer option and battery. Ask!
