This scope model is excellently suited for the lab bench due to its versatility. Various measurement setup aids in the same instrument. Suitable applications include e.g. education, product development, and production testing.

• two-channel versatile DSO oscilloscope
• large 8" 800x600 color TFT touchscreen
• 100MHz analog bandwidth
• sampling rates: 8-bit 1GS/s, 12-bit 500MS/s
• 40MSa sample memory
• low background noise
• wide vertical sensitivity 1mV/div - 10V/div
• integrated 25MHz signal generator (option installed)

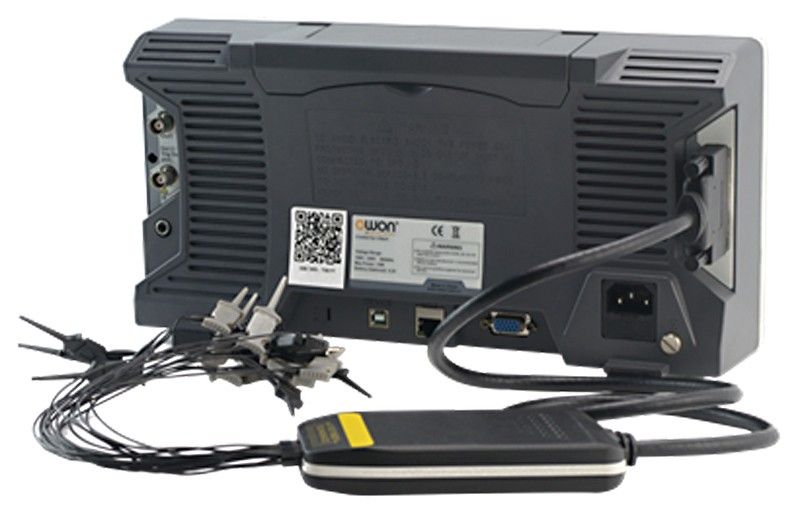

• integrated 16-channel logic analyzer (option installed)
  • the device operates in two modes: either as an oscilloscope or a logic analyzer
• serial bus debugging (SPI, I2C, RS232, CAN options installed)
• extensive connections such as USB, VGA, LAN and Wifi (options installed)
• electronic circuit debugging circuit testing design and manufacture education and training

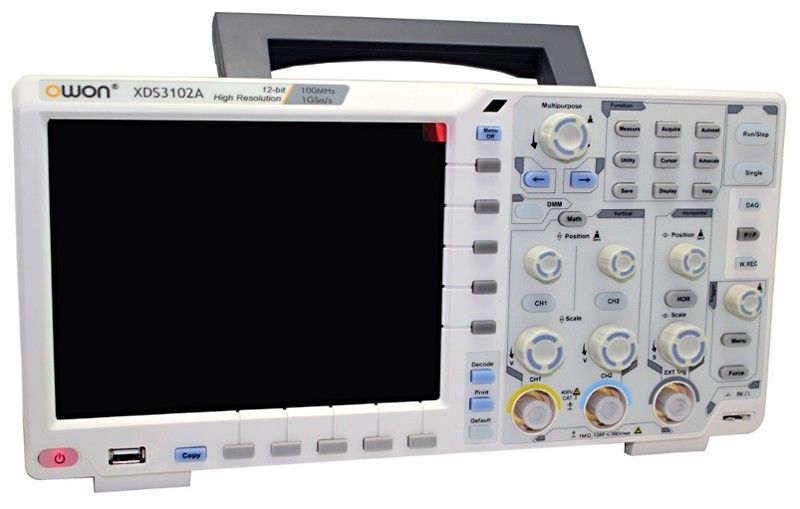

Included: XDS3102A oscilloscope equipped with additional options, two probes, logic analyzer test leads, English software and user manual CD

Note! The YM XDSBAT battery is not compatible with this model due to the LA option occupying the slot!
