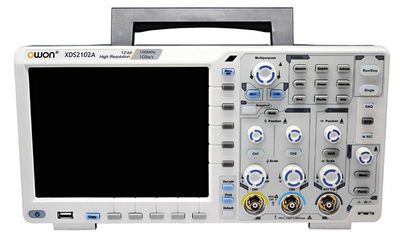

Owon XDS2102A OSCILLOSCOPE 100MHZ 2CH (VGA)

Name: Owon XDS2102A OSCILLOSCOPE 100MHZ 2CH (VGA)
Brand: Owon
SKU: XDS2102A-VGA
Price: 443.30 EUR
Availability: InStock

Temporarily out of stock

SKU#: XDS2102A-VGA

Temporarily out of stock

SKU#: XDS2102A-VGA

Owon XDS2102A - oscilloscope equipped with a large 8" display, 100MHz, 2CH, 12-bit, 20Ms sample memory, VGA output

443,30 €

Made to order, delivery time usually 7-14 days

Add a comment about the product

Product Description

large 8" 800x600 TFT color display
100MHz analog bandwidth
two channels
Sampling rates: 8-bit 1GS/s, 12-bit 500MS/s
55000 wfms/s waveform capture rate
20M sample memory
serial protocol analyzer: RS232, SPI, I2C and CAN
lightweight and sleek form
Pass / Fail function helps verify production runs
SCPI and LabVIEW supported
Extensive connections such as USB and LAN and VGA for an external additional display or a projector in teaching situations

Model	XDS2102A
Bandwidth	100MHz
Sample Rate	1GS/s
Vertical Resolution (A/D)	12 bits
Record length	20M
Horizontal Scale (s/div)	2ns/div - 1000s/div, step by 1 - 2 - 5
Channel	2 + 1 (external)
Display	8" color LCD, 800 x 600 pixels
Trigger Type	Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN (standard for XDS2102A/optional for other models)
Bus Decoding	I2C, SPI, RS232, and CAN (standard for XDS2102A/optional for other models)
Communication Interface	USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional)
Power Supply	100V - 240V AC, 50/60Hz, CAT II
Fuse	2A, T class, 250V
Battery (optional)	Not support
Dimension (W x H x D)	340 x 177 x 90 mm
Weight	2.60 kg

Delivery includes: XDS2102A oscilloscope with VGA option, two probes, English software and user manual CD

Finnish user manual available on request.

Availability Made to order, delivery time usually 7-14 days
Manufacturer Owon
Product path Home Measuring Instruments Electronic Measuring Instruments Oscilloscopes Owon XDS2102A OSCILLOSCOPE 100MHZ 2CH (VGA)
SKU XDS2102A-VGA
Attributes
- Size category 8 tuumaa
- Resolution 800x600
- Channels 2
- Bandwidth 100MHz
- Sample memory 20M
- Sampling frequency 1GS/s
- Sample resolution 12bit
- Weight 2.6kg
- Manufacturer's model Owon XDS2102A +VGA
- Click for more details http://www.owon.com.hk/products_owon_2ch_12_bits_xds2000_series_economical_digital_oscilloscope
- Dimensions 340 x 177 x 90 mm
- Factory delivery time 4 weeks
- Instructions for use English; Finnish available on request (PDF format)
