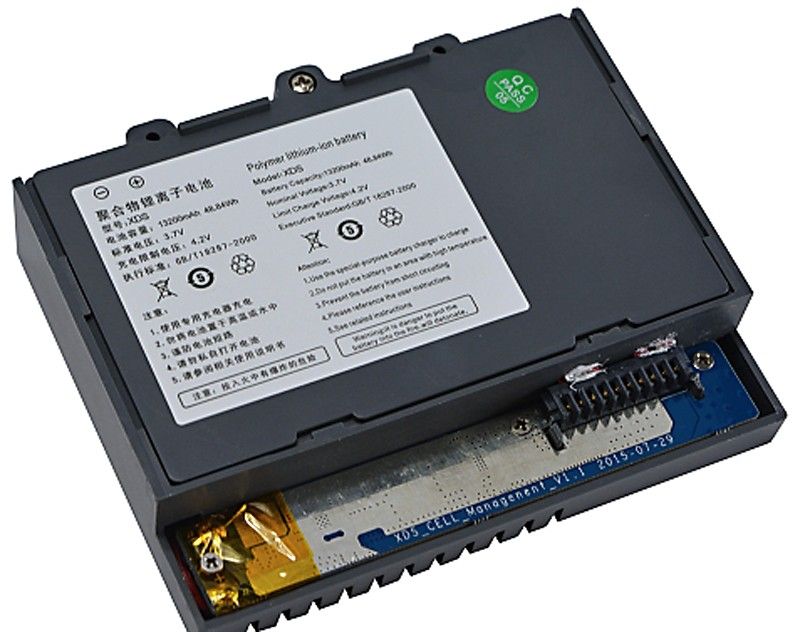

Desktop-model scopes can usually be used only when connected to mains power. With this battery you can take the scope wherever you need.

• fits Owon XDS-series desktop oscilloscopes such as XDS3102, XDS3202, XDS3062A, XDS3202E, XDS3302, XDS3104E, XDS3104AE, XDS3064E, XDS3064AE
• technology: Li-ion Polymer
• capacity: 13200mAh (48,8Wh)
• charging time approx. 8 hours
• run time when fully charged approx. 3,5 hours
• easy to install afterwards

Links

• YouTube video of removing XDS battery

Note! Not compatible with the XDS2102A series.
