Features

• clear color display: 4'' 480x320
• resolution up to 5 1/2 digits
• measurement rate 150 per second
• true RMS AC voltage / current measurement
• dual display support
• the change trend analysis accessible via special chart mode
• SCPI support - remote control and data transfer via LAN, USB, RS232 port

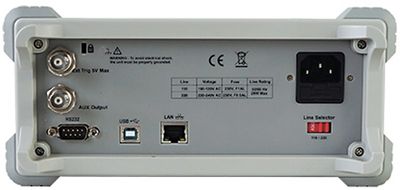

• comprehensive interfaces: USB Device/Host, RS232, LAN, and external trigger input (BNC)

Specifications

• DC voltage: 200mV, 2V, 20V, 200V, 1000V / 0.015±0.004
• True RMS AC voltage: 200mV, 2V, 20V, 200V, 750V
• DC current: 200μA/2 mA/20mA/200mA/2A/10A/ 0.055% + 0.005 ~ 0.250% + 0.010
• Resistance: 200Ω/2kΩ/ 20kΩ/200kΩ/2MΩ/10MΩ/100MΩ
• Diode test: 2.0000 V / 0.05 + 0.01
• Continuity test: 2000 Ω / 0.05 + 0.01
• Capacitance: 2 nF/20nF/200nF/2μF/ 200 μF/10000 μF
• Temperature: preconfigured conversions for ITS-90 B, E, J, K, N, R, S, T thermocouple types and Pt100, Pt385
• Data logging functions

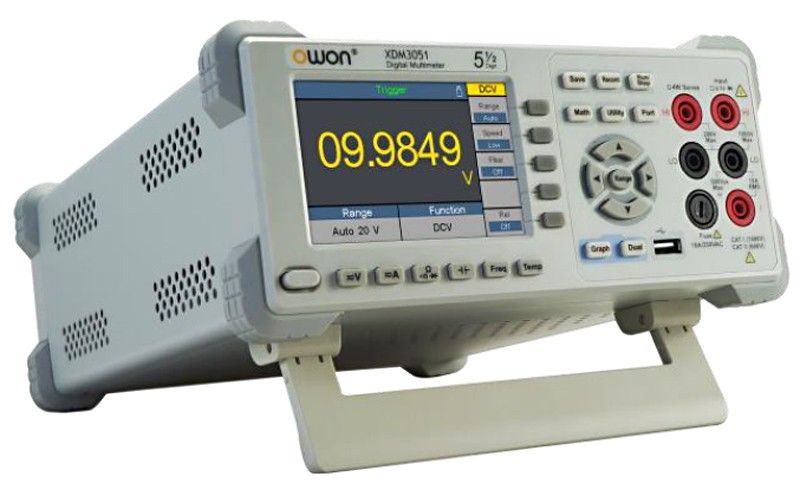

Package contents: XDM3051, spare fuses, safety test leads, large alligator clips, quick guide, CD, power cord, USB cable
