Owon XDM3041 BENCH MULTIMETER TRUE RMS

Name: Owon XDM3041 BENCH MULTIMETER TRUE RMS
Brand: Owon
SKU: XDM3041
Price: 401.60 EUR
Availability: InStock

In stock under 5 pcs

SKU#: XDM3041

Owon XDM3041 BENCH MULTIMETER TRUE RMS

In stock under 5 pcs

SKU#: XDM3041

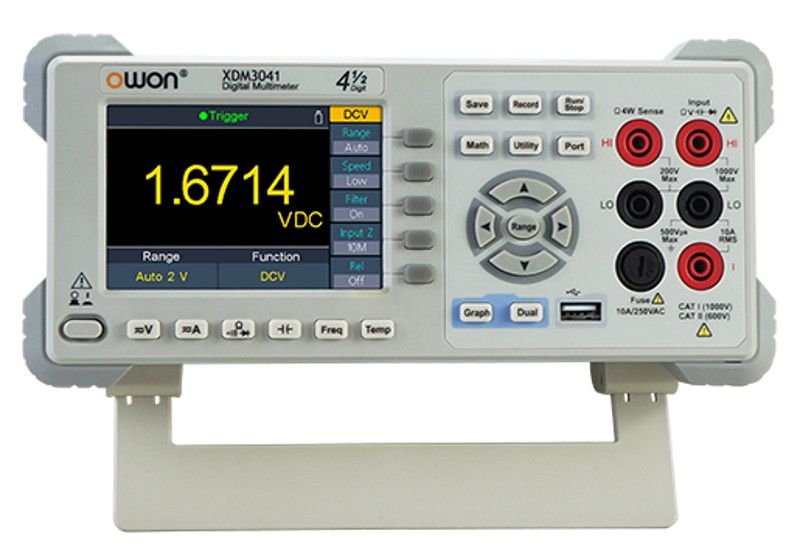

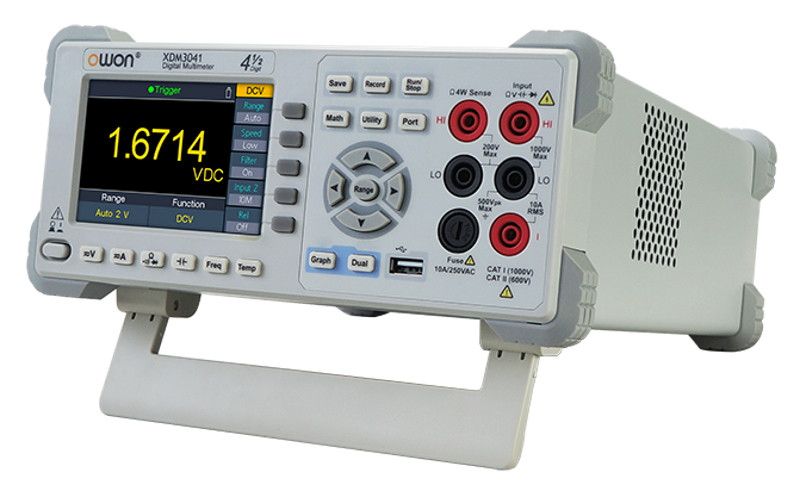

Owon XDM3041 - benchtop DMM multimeter, 4 1/2 digit display, graphical color display, comprehensive connections. Support for four-terminal (4-wire) measurements.

401,60 €

In stock

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Oninaisuudet

4 tuuman 480 x 320 pikselin suuriresoluutioinen LCD-näyttö
resoluutio jopa 4 1/2 numeroa
lukunopeus jopa 150 lukemaa/s
todellinen RMS-vaihtojännitteen/virran mittaus
tuettu kaksirivinen näyttö
muutostrendianalyysi käytettävissä erityisellä kaaviotilalla
SCPI-tuki - etäohjaus ja tietojen jakaminen mahdollista LAN-, USB-, RS232-portin ja WiFi-moduulin (lisävaruste) kautta.

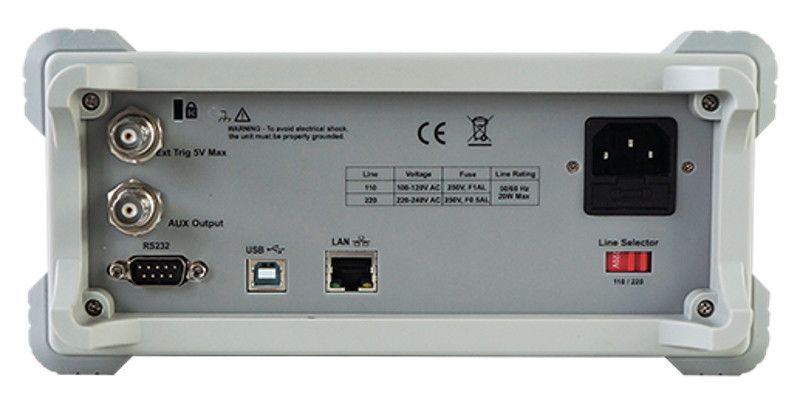

usean IO:n liitäntä: USB-laite / isäntä, RS232, LAN ja laajennettu liipaisintulo

Speksit

XDM3041	Measurement Range	Frequency Range	Accuracy: 1 Year ±(% of reading +% of range)
DC Voltage	600mV, 6V, 60V, 600V, 1000V	/	0.02±0.01
True RMS AC Voltage	600mV, 6V, 60V, 600V, 750V	20 Hz - 50 Hz	2 + 0.10
		50 Hz - 10 kHz	0.2 + 0.06
		10 kHz - 50 kHz	1.0 + 0.05
		50 kHz - 100 kHz	3.0 + 0.08
DC Current	600.00 μA	/	0.06 + 0.02
	6.0000 mA		0.06 + 0.02
	60.000 mA		0.1 + 0.05
	600.00 mA		0.2 + 0.02
	6.000 A		0.2 + 0.05
	10.0000 A		0.250 + 0.05
True RMS AC Current	60.000 mA, 600.00 mA, 6.0000 A, 10.000 A	20 Hz - 45 Hz	2 + 0.10
		45 Hz - 2 kHz	0.50 + 0.10
		2 kHz - 10 kHz	2.50 + 0.20
Resistance	600.00 Ω	/	0.040 + 0.01
	6.0000 kΩ		0.030 + 0.01
	60.000 kΩ		0.030 + 0.01
	600.00 kΩ		0.040 + 0.01
	6.0000 MΩ		0.120 + 0.03
	60.000 MΩ		0.90 + 0.03
	100.00 MΩ		1.75 + 0.03
Diode Test	3.0000 V	/	0.5 + 0.01
Continuity	1000 Ω	/	0.5 + 0.01
Frequency Period	600 mV - 750 V	20 Hz - 2 kHz	0.01 + 0.003
		2 kHz - 20 kHz	0.01 + 0.003
		20 kHz - 200 kHz	0.01 + 0.003
		200 kHz - 1 MHz	0.01 + 0.006
	60 mA - 10 A	20 Hz - 2 kHz	0.01 + 0.003
	60 mA - 10 A	2 kHz - 10 kHz	0.01 + 0.003
		Test Current
Capacitance	2.000 nF	200 nA	3 + 1.0
	20.00 nF	200 nA	1 + 0.5
	200.0 nF	2 μA	1 + 0.5
	2.000 μF	10 μA	1 + 0.5
	200 μF	100 μA	1 + 0.5
	10000 μF	1 mA	2 + 0.5
Temperature	temperature sensors under 2 categories supported - thermocouple (ITS-90 conversion between B / E / J / K / N / R / S / T type), and thermal resistance (RTD sensor conversion between Pt100 and Pt385 type)
Data-logger Function
Logging Duration	5ms
Logging Length	1M points

Toimitus

XDM3041 digitaalinen yleismittari
Verkkojohto
Englanninkielinen pikaopas
USB kaapeli
Mittajohdot
Varasulake
Krokoklipsit

Linkit

Video

Product Information

Availability In stock
Manufacturer Owon
Product path Home Measuring Instruments Electronic Measuring Instruments Table Multimeters Owon XDM3041 BENCH MULTIMETER TRUE RMS
SKU XDM3041
Attributes
- Weight 3.0kg
- Manufacturer's model XDM3041
- Click for more details http://www.owon.com.hk/products_owon_4_1|2_bench-type_xdm3041_digital_multimeter
- Dimensions 235 x 110 x 295 mm
- Instructions for use only in English
- Weight 3,0kg
- Manufacturer's model XDM3041
- Click for more details http://www.owon.com.hk/products_owon_4_1|2_bench-type_xdm3041_digital_multimeter
- Dimensions 235 x 110 x 295 mm
- Instructions for use only in English
