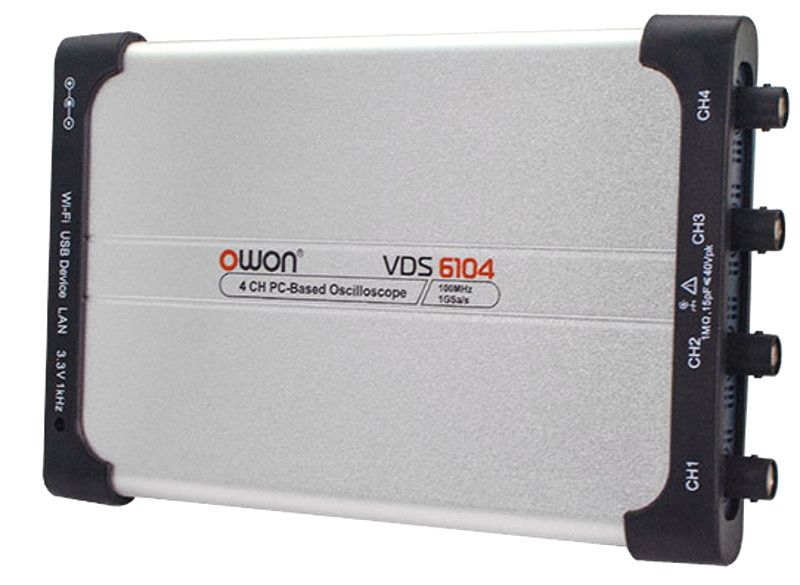

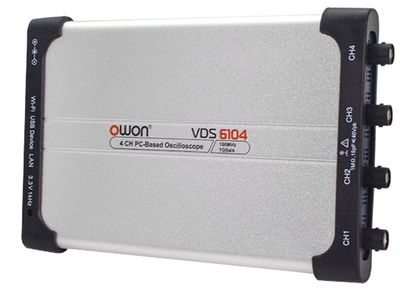

Model

VDS6074

VDS6104

VDS6074A

VDS6104A

Bandwidth

70MHz

100MHz

70MHz

100MHz

Channel

4 channels

Sample Rate

1GSa/s

Horizontal Scale (s/div)

1ns/div～100s/div， step by 1～2～5

General sampling, peak detection, average

Record Length

10M

Input Coupling

DC, AC, GND

Input Impedance

1MΩ±2%，in parallel with15pF±5pF

Vertical Sensitivity

2mV/div～5V/div

Vertical Resolution (A/D)

8 bits

8 bits/12 bits/14 bits

Max Input Voltage

40V Peak value (DC + AC Peak value)

Bandwidth limitation

20 MHz，full bandwidth

Probe Attenuation Factor

1X，10X，100X，1000X

Trigger Type

Edge, Pulse,Video, Slope,

Trigger Mode

Auto, Normal, and Single

Cursor Measurement

△V, and △T between cursors

Automatic Measurement

Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, Delay A→B , Delay A→B , +Width, -Width, +Duty, -Duty

Communication Interface

USB Device (Typ-c); USB Host ; LAN, WiFi (optional)

Frequency counter

support

Dimensions (W × H × D)

190mm×120mm×18mm

Device Weight

About 0.45kg
