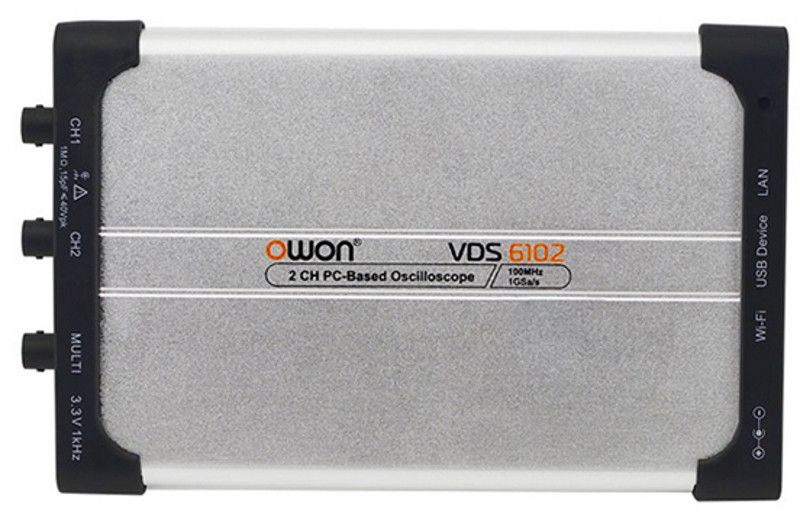

Model

VDS6102

VDS6102A

bandwidth

100MHz

100MHz

channel

2CH scope + 1CH FG

Sample rate

Max 1GSa/s

Rise time

≤3.5 ns

Horizontal scale

5ns/div～100s/div，step by 1～2～5

Sampling Mode

sample, peak detect, average

Rcord length

10M

Input Coupling

DC, AC, ground

Input Impedance

1 MΩ ± 2%, in parallel with 15 pF ± 5 pF

Vertical Sensitivity

2mV/div～5V/div

Vertical Resolution (A/D)

8bits

14bits

Max Input Voltage

40 V (DC + AC Peak)

Probe Attenuation Factor

1X，10X，100X，1000X

Channel isolation

50Hz:  100 : 1，10MHz:  40 : 1

Interpolation

Sin(x)/x

Vertical Range

±2 V (2 mV/div – 50 mV/div)；
±20 V (100 mV/div – 500m V/div)；
±40 V (1 V/div – 5 V/div)

LF Respond (AC, -3dB)

≥5Hz (at input, AC coupling, -3dB)

Trigger Type

edge, video, slope, pulse

Line/Field Frequency (video)

supported standards: NTSC, PAL and SECAM broadcast systems

Trigger Mode

auto, normal, single

Lissajous Figure

Bandwidth

full bandwidth

Phase Difference

±3 degrees

Automatic Measurement

Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, Delay A→B, Delay A→B, +Width, -Width, +Duty, -Duty

Communication Interface

USB (Type-c)；LAN, WIFi (optional)

Power Consumption

≤8W

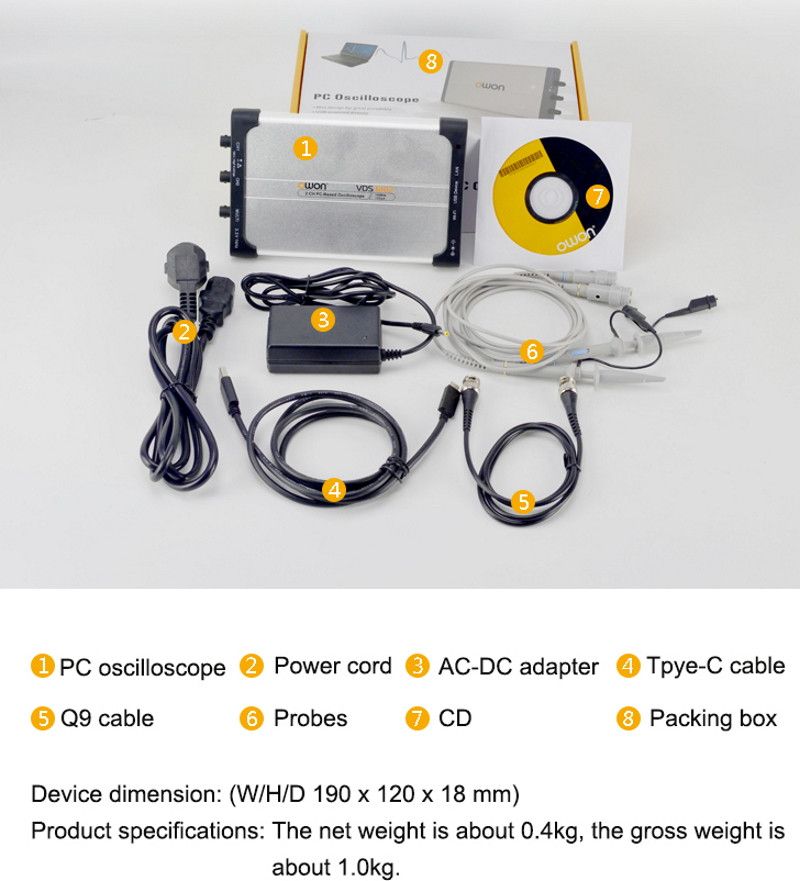

Dimensions (W × H × D)

190mm×120mm×18mm

Device Weight

≈0.38 kg

Function Generator

Standard Waveforms

Sine (0.1 Hz - 5 MHz), Square（0.1 Hz-200 kHz), Ramp（1 Hz-10 kHz), Pulse（1 Hz-10 kHz）

Frequency Output

5 MHz

Sampling Rate

25M Sa/s

Channel

1

Vertical Resolution

10bits

Amplitude Range

10mVpp - 5Vpp

DC Offset Range (AC+DC)

±2.5V

Output Impedance

50 Ω (typical)
