Owon VDS3102 PC SCOPE 100MHz 2CH

Name: Owon VDS3102 PC SCOPE 100MHz 2CH
Brand: Owon
SKU: VDS3102
Price: 294.54 EUR
Availability: InStock

Temporarily out of stock

SKU#: VDS3102

Temporarily out of stock

SKU#: VDS3102

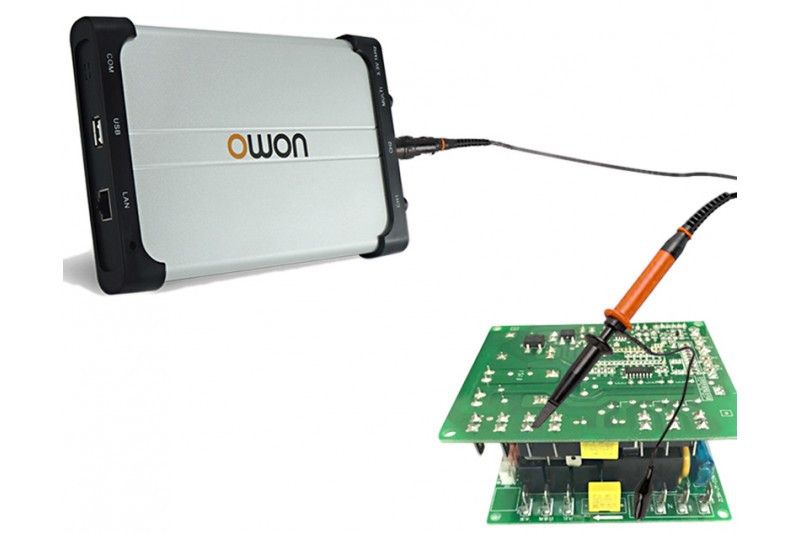

Owon VDS3102 - 100MHz and two-channel PC oscilloscope with USB interface.

294,54 €

Made to order, delivery time usually 7-14 days

Add a comment about the product

Product Description

channels: 2x signal + EXT trigger
connectors: BNC female
analog bandwidth: 100MHz
resolution: 8bit
sample rate: 1GS/s
sample memory: 10M
easy-to-use software: FFT, X-Y, dual-channel display
multiple trigger options: edge, video, slope, pulse, alternate
isolated USB interface ensures less interference to the measured device and the measurement
no separate power supply required, power from the other USB connector
easy to carry

Model		VDS3102
Bandwidth		100MHZ
Channel		2+1 (multi)
Sample Rate		1GSa/s
Horizontal Scale (s/div)		2ns/div～100s/div, step by 1～2～5
Record Length		10M
Max Input Voltage		40V (PK - PK) (DC+AC, PK - PK)
Vertical Resolution (A/D)		8 bits (2 channels simultaneously)
Vertical Sensitivity		2mV/div～5V/div
Trigger Type		Edge, Pulse, Video, Slope, and Alternate
Trigger Mode		Auto, Normal, and Single
Acquisition Mode		Sample, Peak Detect, and Average
Waveform Math		＋, －, ×, ÷, invert, FFT
Communication Interface		USB 2.0, LAN (optional)
Multi-function Interface	Signal Type	synchronized input / output, Pass / Fail , external trigger input
	Level Standard	TTL
Power Supply		5.0V/1A
Power Consumption		≤6.5W
Dimensions (W × H × D)		190 × 120 × 18 (mm)
Device Weight		0.3 kg

Package includes: VDS3102 oscilloscope, two probes, USB cable, English manual

Software and drivers can be downloaded from the manufacturer's website

Availability Made to order, delivery time usually 7-14 days
Manufacturer Owon
Product path Home Measuring Instruments Electronic Measuring Instruments Oscilloscopes Owon VDS3102 PC SCOPE 100MHz 2CH
SKU VDS3102
Attributes
- Channels 2
- Bandwidth 100MHz
- Sample memory 10M
- Sampling frequency 1GS/s
- Sample resolution 8bit
- Weight 0.3kg
- Manufacturer's model Owon VDS3102
- Click for more details https://www.owon.com.hk/products_owon_vds_series_pc_oscilloscope
- Dimensions 190 x 120 x 18 mm
- Factory delivery time 4 weeks
- Instructions for use only in English
