Owon SPE6103 POWER SUPPLY 0-60V/0-10A 300W

Name: Owon SPE6103 POWER SUPPLY 0-60V/0-10A 300W
Brand: Owon
SKU: SPE6103
Price: 182.44 EUR
Availability: InStock

Temporarily out of stock

SKU#: SPE6103

Temporarily out of stock

SKU#: SPE6103

Owon SPE6103 - SPE-series adjustable SMPS power supply with a single channel, 0-60V, 0-10A, 300W

182,44 €

Temporarily out of stock in the online store

Add a comment about the product

Product Description

Toteutettu hakkuritekniikalla (SMPS)

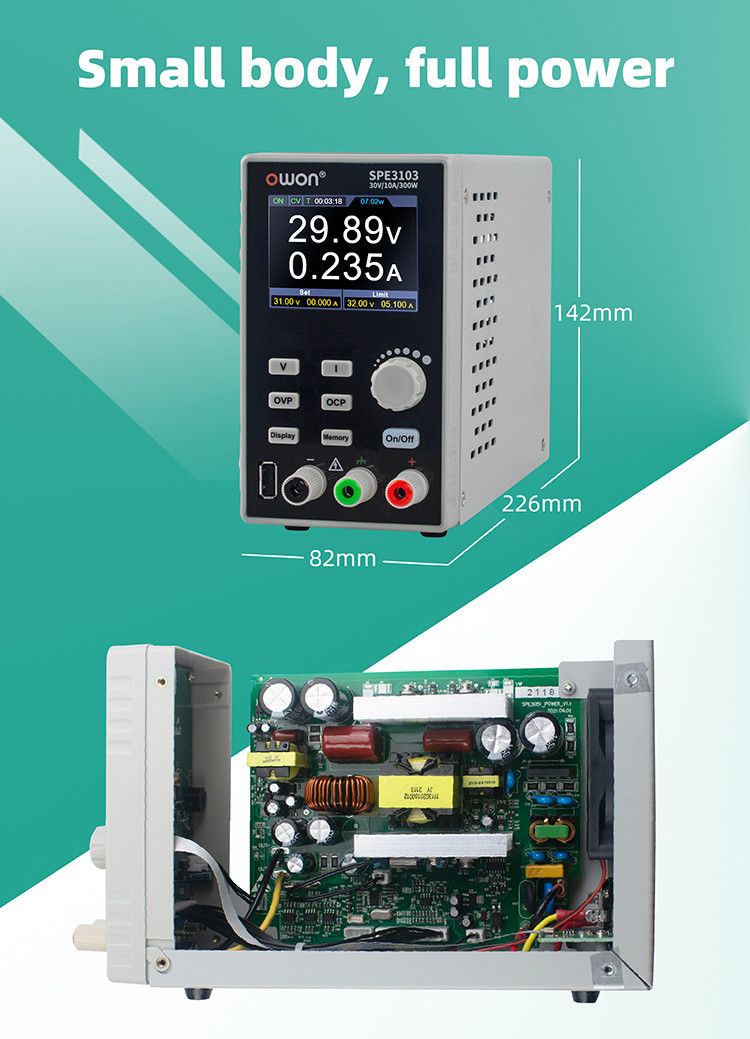

Pieni runko helpottaa kuljettamista
Korkea resoluutio: 10mV / 1mA

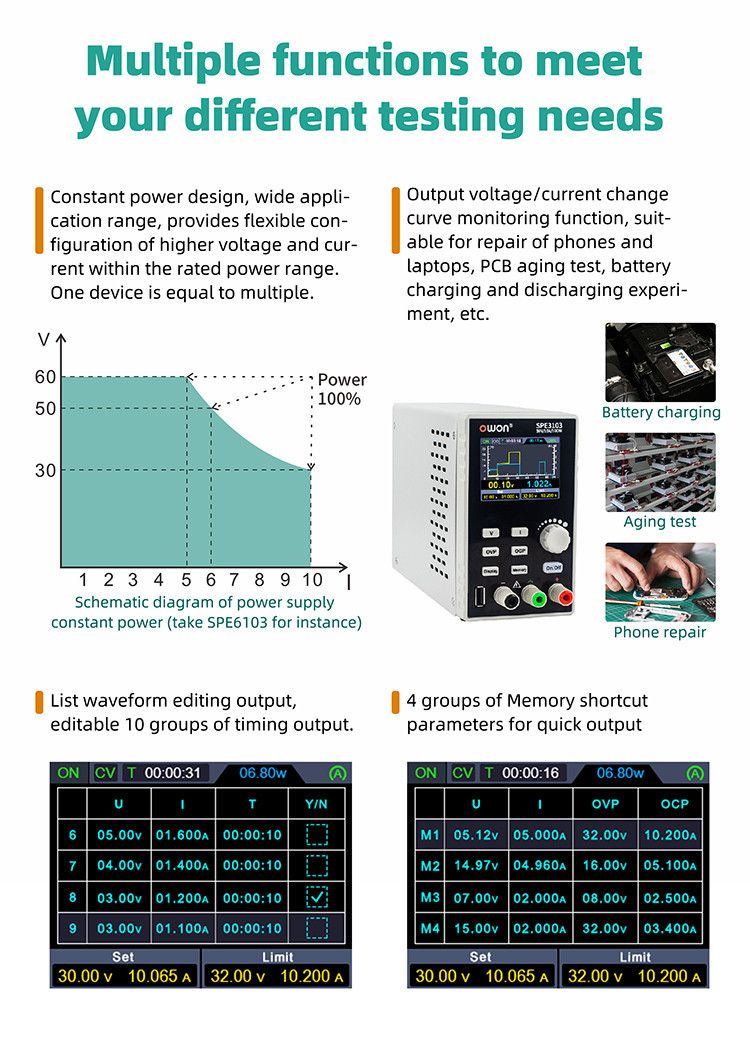

Luettelo aaltomuodon muokkauslähtö, muokattavissa 10 ryhmää ajoituslähtötoiminnolla
Alhainen aaltoilu / kohina
Ylijännite / ylivirtasuojaus
Lähtöjännitteen ja virtakäyrän valvontatoiminto
Älykäs lämpötilan säätö tuulettimen jäähdytys
2,8 tuuman TFT LCD-näyttö
USB-viestintäliitäntä, tuki SCPI

Model		SPE3051(U)	SPE3102(U)	SPE6102(U)	SPE6053(U)	SPE3103(U)	SPE6103(U)
Rated Output (0℃-40℃)	Voltage	0 - 30V	0 - 30V	0 -60V	0 -60V	0 - 30V	0 -60V
	Current	5A	10A	10A	5A	10A	10A
	Output Power	150W	200W	200W	300W	300W	300W
USB Output		5V/1A(SPE Series) or suppout QC2.0, QC3.0, BC1.2, Apple, Huawei, Samsung fast charging protocols (SPE-U Series)
Load Regulation	Voltage	≤30mV
Load Regulation	Current	≤20mA
Power Regulation	Voltage	≤30mV
Power Regulation	Current	≤20mA
Setting Resolution	Voltage	10mV
Setting Resolution	Current	1mA
Readback Resolution	Voltage	10mV
Readback Resolution	Current	1mA
Value Resolution (within 12 months) (25℃±5℃)	Voltage	≤0.1% ± 20mV		≤0.1% ± 30mV	≤0.1% ± 20mV		≤0.1% ± 30mV
Value Resolution (within 12 months) (25℃±5℃)	Current	≤0.05% ± 10mA
Readback Value Resolution (25℃±5℃)	Voltage	≤0.1% ± 20mV		≤0.1% ± 30mV	≤0.1% ± 20mV		≤0.1% ± 30mV
Readback Value Resolution (25℃±5℃)	Current	≤0.1% ± 10mA
Ripple/Noise(*)	Voltage(Vp-p)	≤30mVp-p		≤50mVp-p	≤30mVp-p		≤50mVp-p
	Voltage (rms)	≤3mVrms		≤5mVrms	≤3mVrms		≤5mVrms
	Current (rms)	≤30mAp-p
Output temperature coefficient (0℃-40℃)	Voltage	100ppm/℃
Output temperature coefficient (0℃-40℃)	Current	200ppm/℃
Readback temperature coefficient	Voltage	100ppm/℃
Readback temperature coefficient	Current	200ppm/℃
Response Time(50%-100% rated load)		≤1.0ms
Storage		4 groups of data
Working Temperature		0-40℃

Suomenkielinen käyttöohje saatavilla pyydettäessä.

Huom! Tuuletin on varsin kovaääninen

Availability Temporarily out of stock in the online store
Manufacturer Owon
Product path Home Power Supplies Laboratory Power Supplies Owon SPE6103 POWER SUPPLY 0-60V/0-10A 300W
SKU SPE6103
Attributes
- Voltage class 60V
- Power Class 10A
- Power class 300W
- Channels 1
- Weight 1.5kg
- Manufacturer's model SPE6103
- Click for more details https://www.owon.com.hk/products_owon_spe_series_|_spe-u_series_1_ch_dc_power_supply
- Dimensions 226 x 142 x 82 mm
- Instructions for use English; Finnish available upon request (PDF format)
