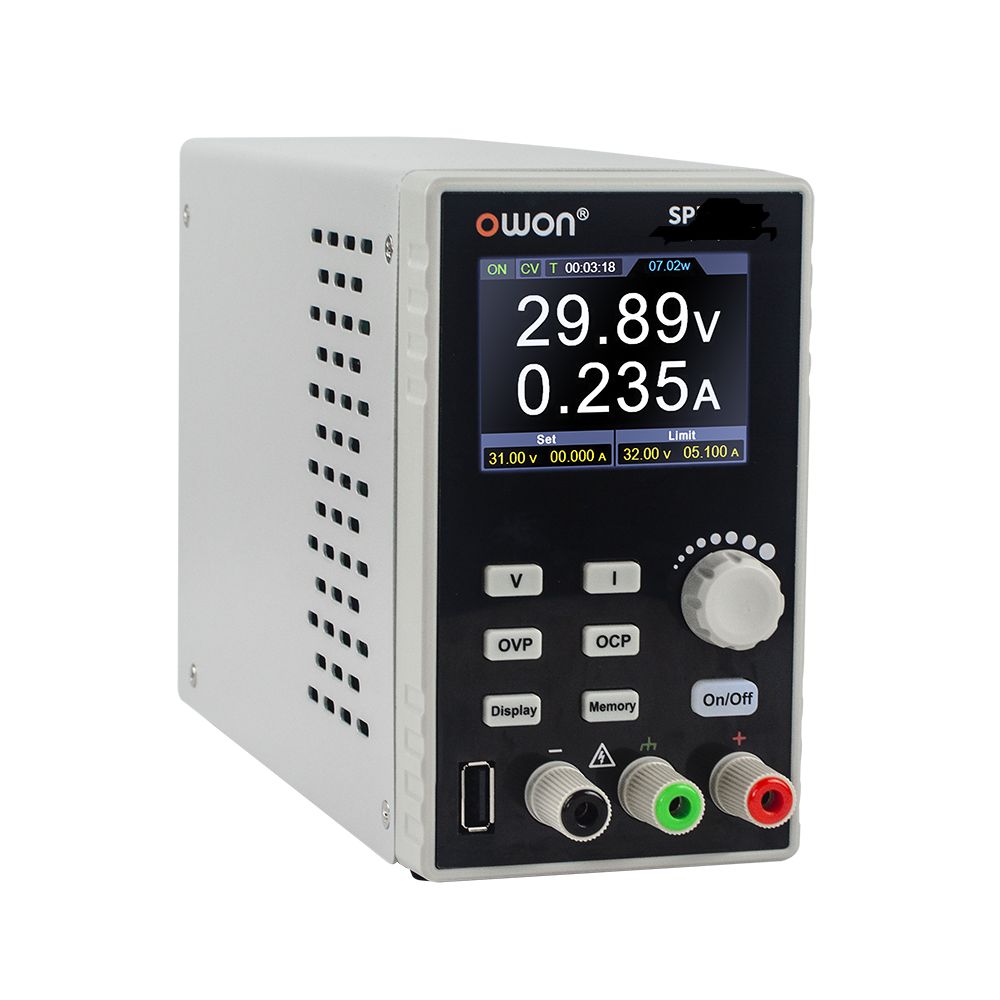

Owon SPE6053 POWER SUPPLY 0-60V/0-5A 300W

Name: Owon SPE6053 POWER SUPPLY 0-60V/0-5A 300W
Brand: Owon
SKU: SPE6053
Price: 161.59 EUR
Availability: InStock

In stock under 5 pcs

SKU#: SPE6053

In stock under 5 pcs

SKU#: SPE6053

Owon SPE6053 - Adjustable SPE-series SMPS power supply with a single channel 0-60V, 0-5A, 300W

161,59 €

In stock

Add a comment about the product

Product Description

Toteutettu hakkuritekniikalla (SMPS)
Pieni runko helpottaa kuljettamista
Korkea resoluutio: 10mV / 1mA

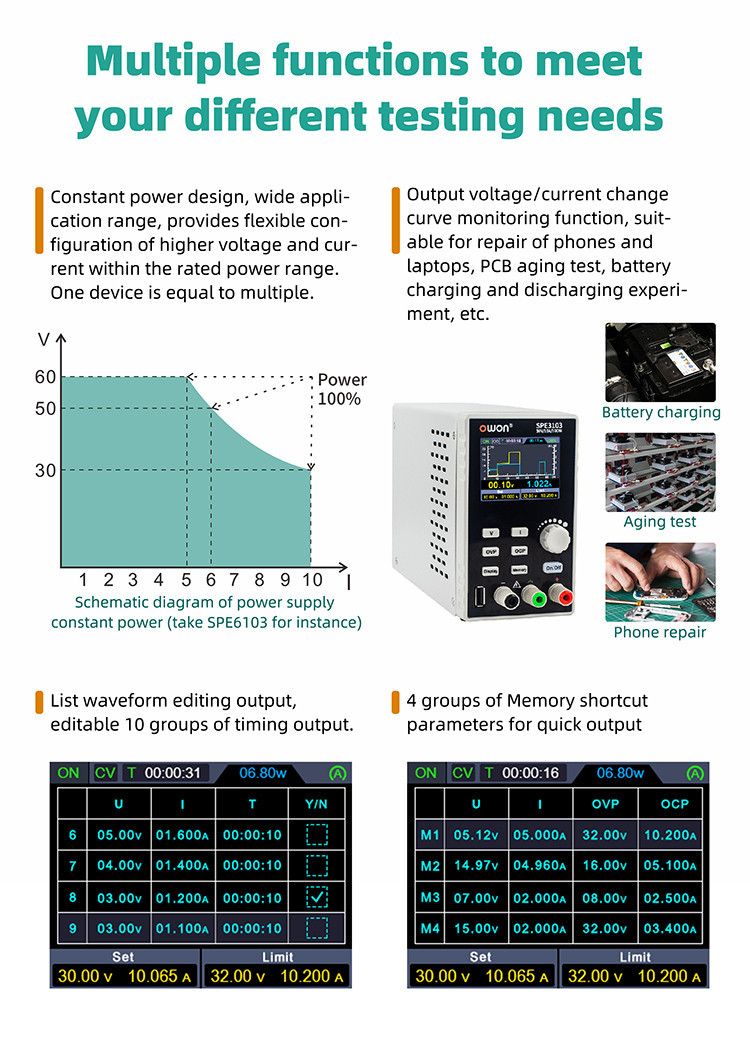

Luettelo aaltomuodon muokkauslähtö, muokattavissa 10 ryhmää ajoituslähtötoiminnolla
Alhainen aaltoilu / kohina
Ylijännite / ylivirtasuojaus
Lähtöjännitteen ja virtakäyrän valvontatoiminto
Älykäs lämpötilan säätö tuulettimen jäähdytys
2,8 tuuman TFT LCD-näyttö
USB-viestintäliitäntä, tuki SCPI

Model		SPE3051(U)	SPE3102(U)	SPE6102(U)	SPE6053(U)	SPE3103(U)	SPE6103(U)
Rated Output (0℃-40℃)	Voltage	0 - 30V	0 - 30V	0 -60V	0 -60V	0 - 30V	0 -60V
	Current	5A	10A	10A	5A	10A	10A
	Output Power	150W	200W	200W	300W	300W	300W
USB Output		5V/1A(SPE Series) or suppout QC2.0, QC3.0, BC1.2, Apple, Huawei, Samsung fast charging protocols (SPE-U Series)
Load Regulation	Voltage	≤30mV
Load Regulation	Current	≤20mA
Power Regulation	Voltage	≤30mV
Power Regulation	Current	≤20mA
Setting Resolution	Voltage	10mV
Setting Resolution	Current	1mA
Readback Resolution	Voltage	10mV
Readback Resolution	Current	1mA
Value Resolution (within 12 months) (25℃±5℃)	Voltage	≤0.1% ± 20mV		≤0.1% ± 30mV	≤0.1% ± 20mV		≤0.1% ± 30mV
Value Resolution (within 12 months) (25℃±5℃)	Current	≤0.05% ± 10mA
Readback Value Resolution (25℃±5℃)	Voltage	≤0.1% ± 20mV		≤0.1% ± 30mV	≤0.1% ± 20mV		≤0.1% ± 30mV
Readback Value Resolution (25℃±5℃)	Current	≤0.1% ± 10mA
Ripple/Noise(*)	Voltage(Vp-p)	≤30mVp-p		≤50mVp-p	≤30mVp-p		≤50mVp-p
	Voltage (rms)	≤3mVrms		≤5mVrms	≤3mVrms		≤5mVrms
	Current (rms)	≤30mAp-p
Output temperature coefficient (0℃-40℃)	Voltage	100ppm/℃
Output temperature coefficient (0℃-40℃)	Current	200ppm/℃
Readback temperature coefficient	Voltage	100ppm/℃
Readback temperature coefficient	Current	200ppm/℃
Response Time(50%-100% rated load)		≤1.0ms
Storage		4 groups of data
Working Temperature		0-40℃

Suomenkielinen käyttöohje saatavilla pyydettäessä.

Availability In stock
Manufacturer Owon
Product path Home Power Supplies Laboratory Power Supplies Owon SPE6053 POWER SUPPLY 0-60V/0-5A 300W
SKU SPE6053
Attributes
- Voltage class 60V
- Power Class 5A
- Power class 300W
- Channels 1
- Weight 1.5kg
- Manufacturer's model SPE6053
- Click for more details https://www.owon.com.hk/products_owon_spe_series_|_spe-u_series_1_ch_dc_power_supply

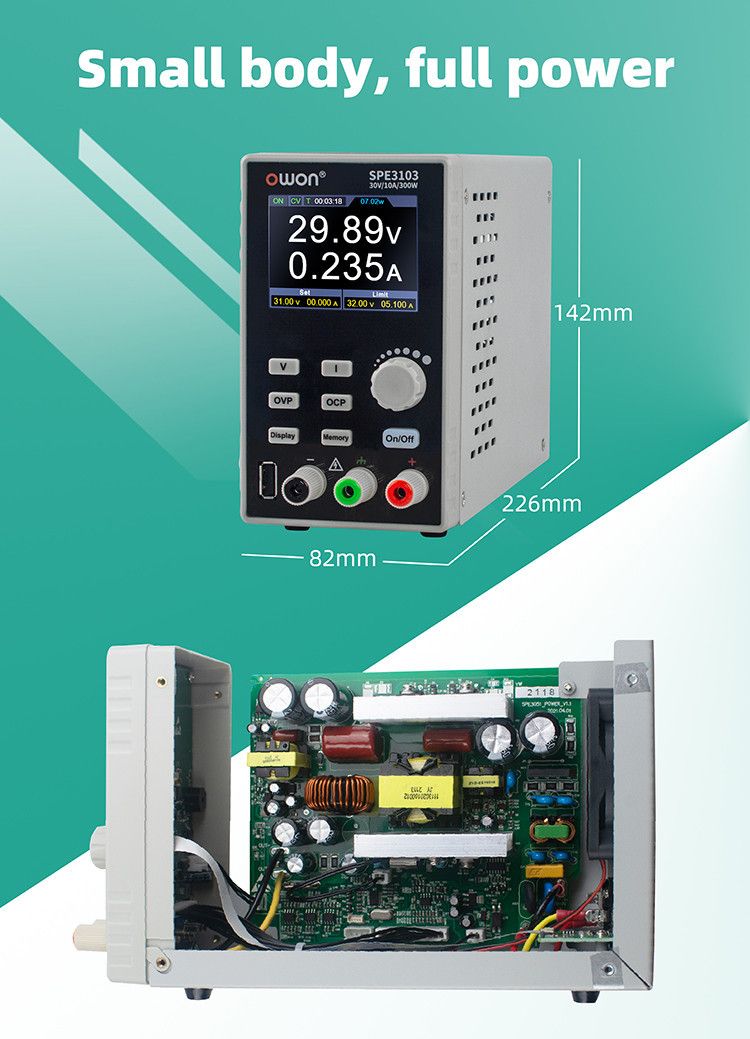

- Dimensions 226 x 142 x 82 mm
- Instructions for use In English; Finnish available on request (PDF format)
