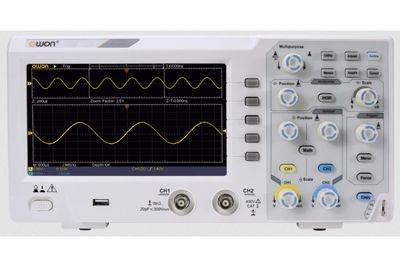

Owon SDS1202 OSCILLOSCOPE 200MHZ 2CH

Name: Owon SDS1202 OSCILLOSCOPE 200MHZ 2CH
Brand: Owon
SKU: SDS1202
Price: 383.00 EUR
Availability: OutOfStock

Temporarily out of stock

SKU#: SDS1202

Temporarily out of stock

SKU#: SDS1202

Owon SDS1202 - Affordable two-channel basic oscilloscope for more serious hobbyist use. 200MHz, 1GS/s, 8-bit, 7-inch display.

Would you like to buy a similar product? No worries, you can:

Buy products from the brand Owon
Or you can request product availability notifications to your email at the bottom of the page.

Add a comment about the product to my order

Product Description

Affordable two-channel basic oscilloscope for more serious hobby use. On a 100 MHz bandwidth you can already clearly see edge distortion and ringing.

Model	SDS1202
Bandwidth	200MHz
Sample Rate	1GS/s
Horizontal Scale (s/div)	2ns/div - 1000s/div, step by 1 - 2 - 5
Channel	2
Display	7" color LCD, 800 x 480 pixels
Input Coupling	DC, AC, and GND
Vertical Resolution (A/D)	8 bits (2 channels simultaneously)
Vertical Sensitivity	5mV/div - 5V/div (at input)
Trigger Type	Edge, Video
Trigger Mode	Auto, Normal, and Single
Waveform Math	＋, －, x, ÷, invert, FFT
Fuse	2A, T class, 250V
Dimension (W x H x D)	301 x 152 x 70 mm
Device Weight	1.10 kg

Included in delivery: SDS1202 oscilloscope, two measurement probes, power cord, USB cable, software and user manual CD

Finnish user manual available upon request.

Availability Temporarily out of stock
Manufacturer Owon
Product path Home Measuring Instruments Electronic Measuring Instruments Oscilloscopes Owon SDS1202 OSCILLOSCOPE 200MHZ 2CH
SKU SDS1202
Attributes
- Size category 7 tuumaa
- Resolution 800x480
- Channels 2
- Bandwidth 200MHz
- Sample memory 10K
- Sampling frequency 1GS/s
- Sample resolution 8bit
- Weight 1.1kg
- Manufacturer's model Owon SDS1202
- Click for more details https://www.owon.com.hk/products_owon_sds1000_2ch_series_super_economical_type_digital_oscilloscope
- Dimensions 301 x 152 x 70 mm
- Factory delivery time 4 weeks
- Instructions for use In English; Finnish available upon request (PDF format)
