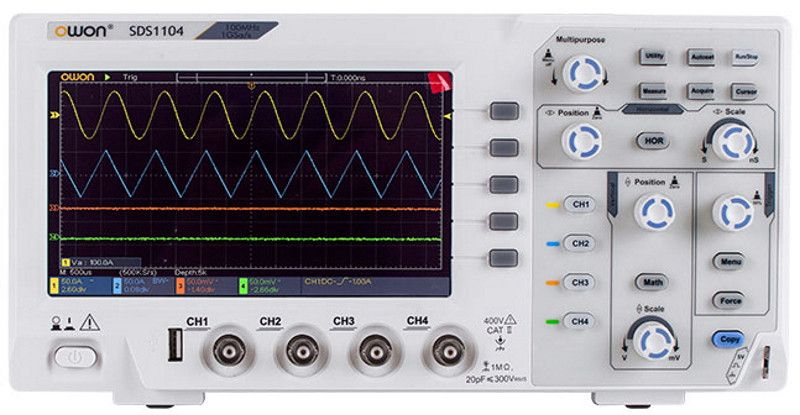

Model

SDS1104

Bandwidth

100MHz

Sample Rate

1GS/s

Horizontal Scale (s/div)

2ns/div - 1000s/div, step by 1 - 2 - 5

Channel

4

Display

7" color LCD, 800 x 480 pixels

Record Length

20K (80K optional)

Input Coupling

DC, AC , and GND

Vertical Resolution (A/D)

8 bits (4 channels simultaneously)

Vertical Sensitivity

5mV/div - 5V/div (at input)

Trigger Type

Edge, Video

Trigger Mode

Auto, Normal, and Single

Cursor Measurement

△V,  △T between cursors, △V and △T between cursors, Auto-cursors

Automatic Measurement

Vmax, Vmin, Vpp, Vtop, Vbase, Vamp, Vavg, Vrms, Cycle RMS, Cursor RMS, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, +Width, -Width, +Duty Cycle, -Duty Cycle, Screen Duty, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF, Delay A→B ↑, Delay A→B↓, Phase A→B ↑, Phase A→B↓, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count, Area, Cycle Area

Waveform Math

＋, －, x, ÷, invert, FFT

Waveform Storage

16 waveforms

Communication Interface

USB host, USB device

Frequency Counter

available

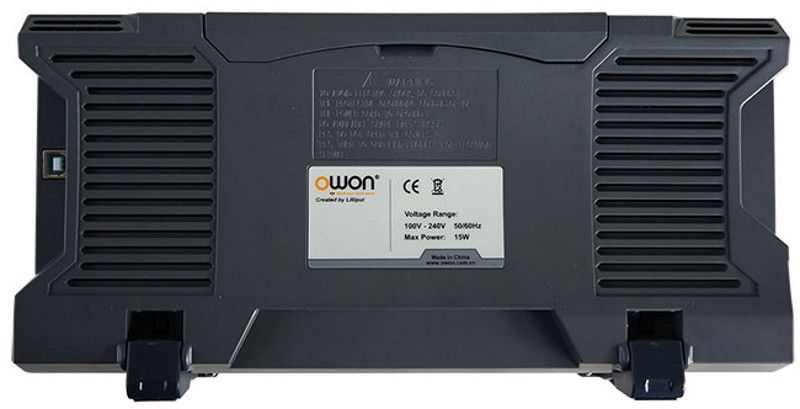

Power Supply

100V - 240V AC, 50/60Hz, CAT II

Power Consumption

＜15W

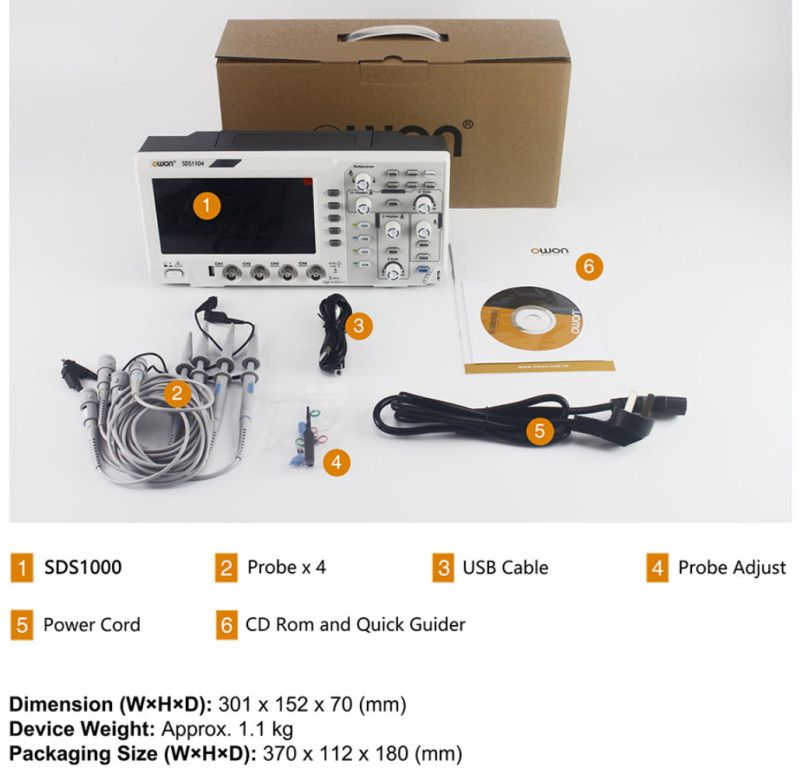

Dimension (W x H x D)

301 x 152 x 70 mm

Device Weight

1.10 kg
