Owon SDS1102 OSKILLOSCOPE 100MHZ 2CH

Name: Owon SDS1102 OSKILLOSCOPE 100MHZ 2CH
Brand: Owon
SKU: SDS1102
Price: 293.59 EUR
Availability: InStock

In stock 14 pcs

SKU#: SDS1102

Owon SDS1102 OSKILLOSCOPE 100MHZ 2CH

In stock 14 pcs

SKU#: SDS1102

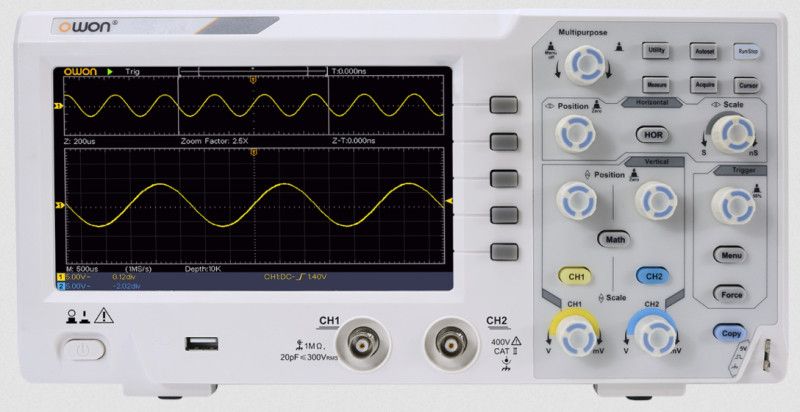

Owon SDS1102 - Affordable two-channel basic oscilloscope for more serious hobbyist use. 100MHz, 1GS/s, 8-bit, 7-inch display.

293,59 €

In stock

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Affordable two-channel basic oscilloscope for more serious hobby use. On a hundred-megahertz bandwidth you can already clearly see the distortion and ringing of a square wave.

Features

analog bandwidth: 100MHz
input channels: 2 pcs
sample rate: 1GS/s, 8-bit
light and thin design
7-inch LCD color display (800x480)
supports SCPI and LabVIEW usage

Specifications

Model	SDS1102
Bandwidth	100MHz
Sample Rate	1GS/s
Horizontal Scale (s/div)	2ns/div - 1000s/div, step by 1 - 2 - 5
Channel	2
Display	7" color LCD, 800 x 480 pixels
Input Coupling	DC, AC , and GND
Vertical Resolution (A/D)	8 bits (2 channels simultaneously)
Vertical Sensitivity	5mV/div - 5V/div (at input)
Trigger Type	Edge, Video
Trigger Mode	Auto, Normal, and Single
Waveform Math	＋, －, x, ÷, invert, FFT
Fuse	2A, T class, 250V
Dimension (W x H x D)	301 x 152 x 70 mm
Device Weight	1.10 kg

Delivery

Included in delivery: SDS1102 oscilloscope, two probes, power cord, USB cable, software and user manual CD

Finnish user manual available on request.

Video

Product Information

Availability In stock
Manufacturer Owon
Product path Home Measuring Instruments Electronic Measuring Instruments Oscilloscopes Owon SDS1102 OSKILLOSCOPE 100MHZ 2CH
SKU SDS1102
Attributes
- Size category 7 tuumaa
- Resolution 800x480
- Channels 2
- Bandwidth 100MHz
- Sample memory 10K
- Sampling frequency 1GS/s
- Sample resolution 8bit
- Weight 1.1kg
- Manufacturer's model Owon SDS1102
- Click for more details https://www.owon.com.hk/products_owon_sds1000_2ch_series_super_economical_type_digital_oscilloscope
- Dimensions 301 x 152 x 70 mm
- Factory delivery time 4 weeks
- Instructions for use English; Finnish available on request (PDF format)
