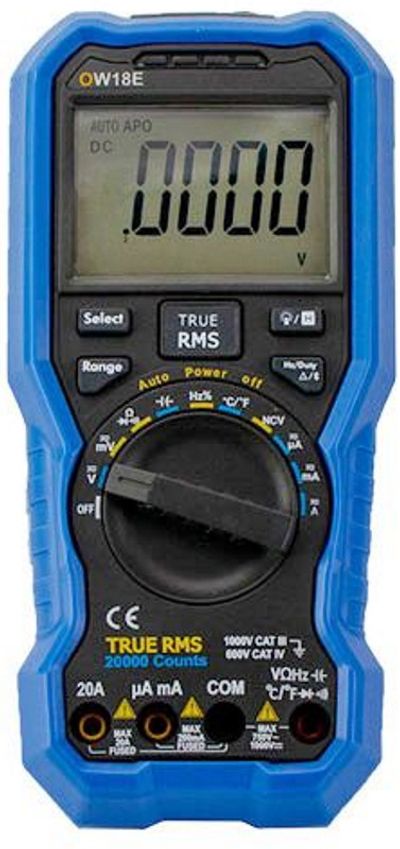

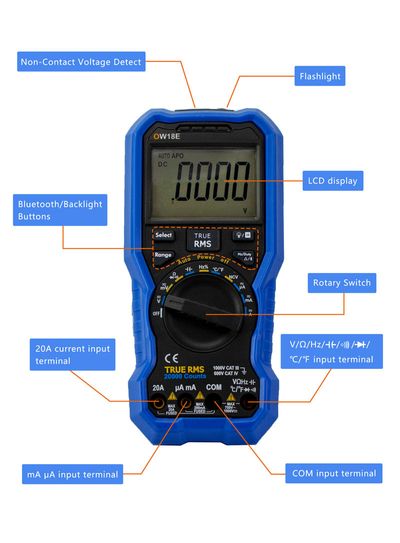

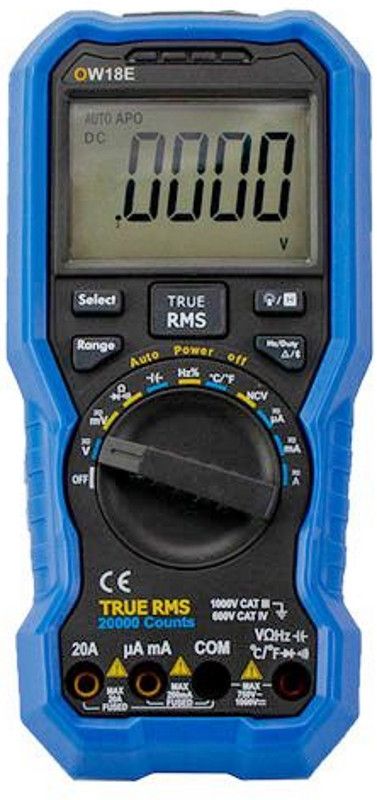

OWON® OW18E is a digital multimeter with remote operation capability. The device has built-in Bluetooth, allowing you to perform measurements, datalogging and analysis of saved measurement results with a smartphone app. Multiple meters can be connected to the app simultaneously. Large 20000-count backlit LCD display with bar graph. True RMS (TRMS) measurement ensures more accurate results for AC voltage and current measurements compared to traditional multimeters. Automatic power-off function to extend battery life. You can measure AC/DC voltage and current, resistance, capacitance, frequency, temperature, diode test and audible continuity test.

Compared to the OW18B meter in the series, this model has a larger display and more accurate measurement results.

Features

• 4 1/2 bit resolution (20000)
• Datalogger + multimeter + thermometer (OW18E only)
• TrueRMS measurement
• BLE 4.0 wireless transmission, more stable, lower power consumption (OW18E only)
• Built-in offline storage function (OW18E only)
• Chart and diagram mode helps analyze data trends (OW18E only)
• Torch/flashlight function
• Non-contact voltage detection (NVC)
• Broadly supported Android, iOS, Windows (OW18E only)

Specifications

• large LCD display 69x52mm 4 1/2 count (19999)
• input impedance: 10MΩ
• sampling: 3x/s
• DC voltage measurement: 20mV-1000V, ±(0.1%+2 digits)
• AC voltage measurement: 20mV-750V, ±(0.5%+10 digits)
• NVC voltage detection = shows AC voltage frequency
• DC current measurement: 200μA-20A, ±(0.5%+10 digits)
• AC current measurement: 200μA-20A, ±(0.8%+10 digits)
• resistance: 200Ω-200MΩ, ±(0.3%+1 digit)
• capacitance: 2nF~20mF, ±(3%+10 digits)
• frequency: 20Hz-20MHz, ±(0.1%+4 digits)
• PWM duty cycle: 0.1%-99.9%, ±(1.2%+3 digits)
• temperature: -50...+400°C, ±(1.0%+3°C)
• continuity test: beeps when below 30Ω
• datalogging: 10000 points, 168 hours
• supports BLE4.0
• built-in LED torch
• protection category: CAT III 1000V, CAT IV 600V
• battery: 9V (battery included)
• fuses: F200mA/250V (resettable) and F20A/250V

Package includes: OW18E multimeter, K-type thermocouple, 9V snap battery, English user manual.

Finnish user manual available upon request.

Note! Test leads are suitable for max. 10A / 60V measurements!

Links

• PC software for OWON OW Series digital multimeter (Bluetooth 4.0 version)
• Quick guide for OW18 Series Digital Multimeter
• User Manual for OW18 Series Digital Multimeter
• app for OWON OW Series digital multimeter (Bluetooth 4.0 version)
