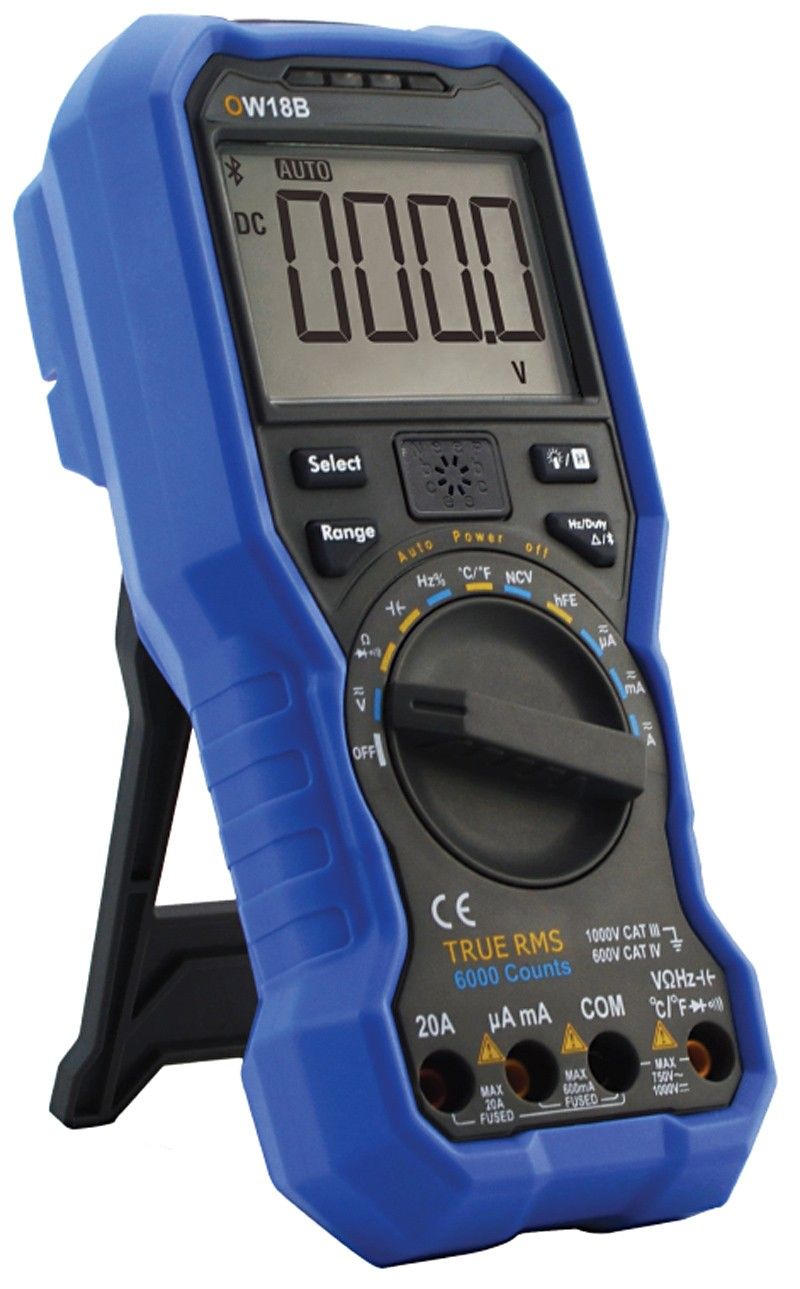

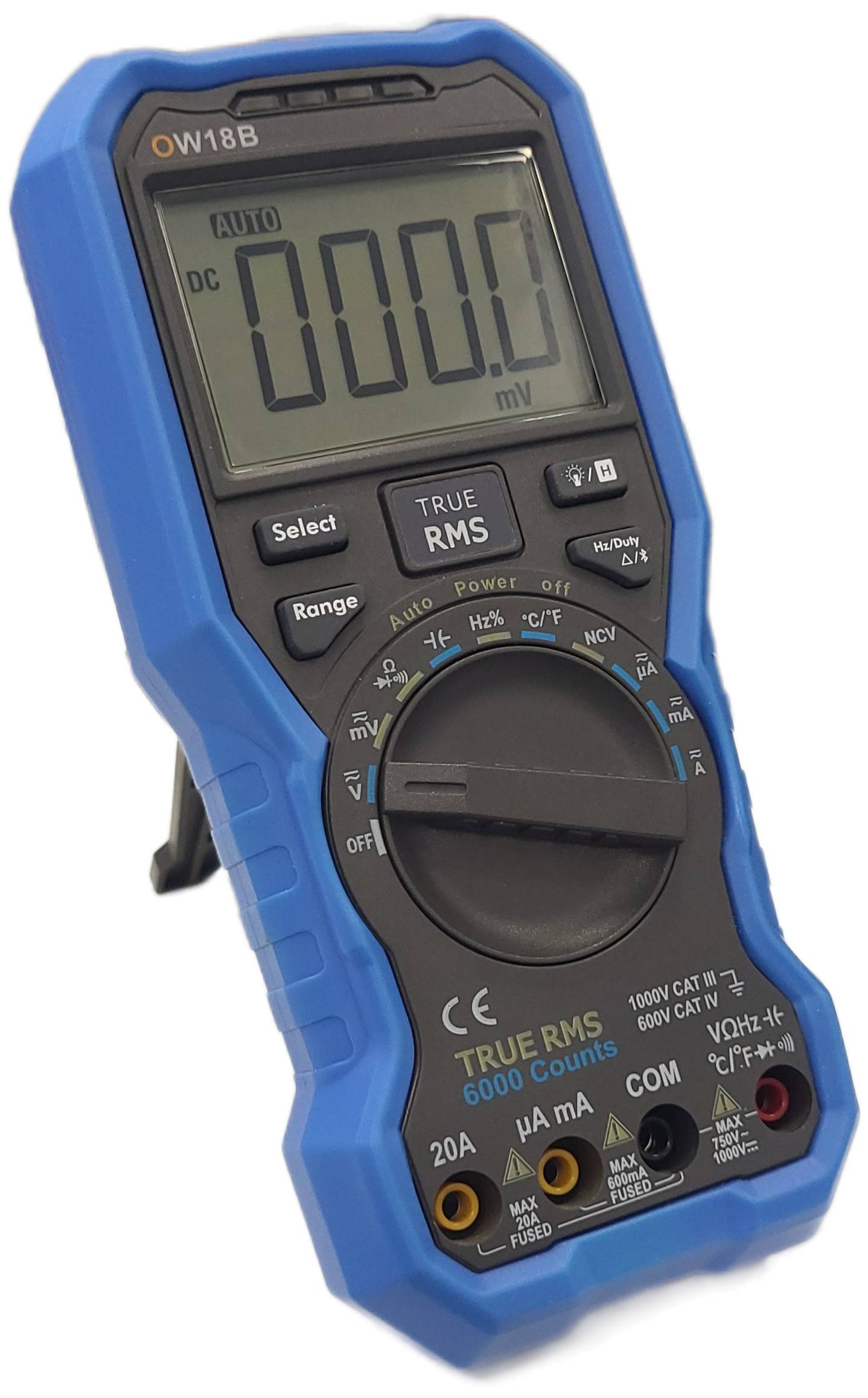

OWON® OW18B is a digital multimeter with remote operation capability. The device has built-in Bluetooth, allowing you to perform measurements, data logging and analysis of saved measurement results with a smartphone app. Multiple meters can be connected to the app simultaneously. Large 6000-count backlit LCD with bar graph. True RMS (TRMS) measurement ensures a more accurate result in AC voltage and current measurements compared to traditional multimeters. Automatic power-off to extend battery life. You can measure AC/DC voltage and current, resistance, capacitance, frequency, temperature, diode test and audible continuity test.

Technical specifications

• large LCD display 69x52mm 3 5/6 digits (5999)
• input impedance: 10MΩ
• DC voltage measurement: 60mV-1000V, ±(0.5%+2dig)
• AC voltage measurement: 6V-750V, ±(1%+2dig)
• NCV voltage measurement = displays AC voltage frequency
• DC current measurement: 60μA-20A, ±(0.8%+2dig)
• AC current measurement: 60μA-20A, ±(1.0%+2dig)
• resistance: 600Ω-60MΩ, ±(0.8%+2dig)
• capacitance: 60nF~60mF, ±(2%+3dig)
• frequency: 9.999Hz-9.999MHz, ±(0.8%+2dig)
• PWM duty cycle: 0.1%-99.9%, ±(1.2%+3dig)
• temperature: -50...+400°C, ±(2.5% of reading +3dig)
• continuity test: beeps when below 30Ω
• data logging: 10000 points, 168 hours
• built-in LED flashlight
• supports BT4.0
• protection class: CAT III 1000V, CAT IV 600V
• battery: 9V (battery included)
• fuses: F1A/250V (resetable) and F20A/250V

Delivery includes: OW18B multimeter, test leads (alligator clips) max. 10 A, K-type thermocouple, 9V snap battery, English user manual.

Finnish user manual available on request.

Note! You can download the app (PC, Android) from the manufacturer's site

Note! The test leads are suitable for max. 10A current measurements!

Greetings from Partcon Workshop - BT connection tested working with e.g. Samsung S20FE. Range in open space approx. 10m. Connection did not work with Samsung SM-7510 tablet.

Links

• PC software for OWON OW Series digital multimeter (Bluetooth 4.0 version)
• Quick guide for OW18 Series Digital Multimeter
• User Manual for OW18 Series Digital Multimeter
• app for OWON OW Series digital multimeter (Bluetooth 4.0 version)
