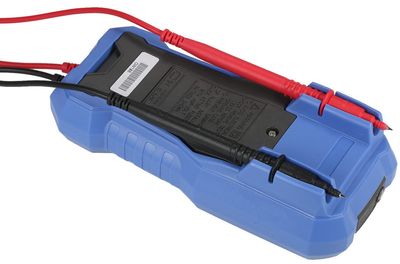

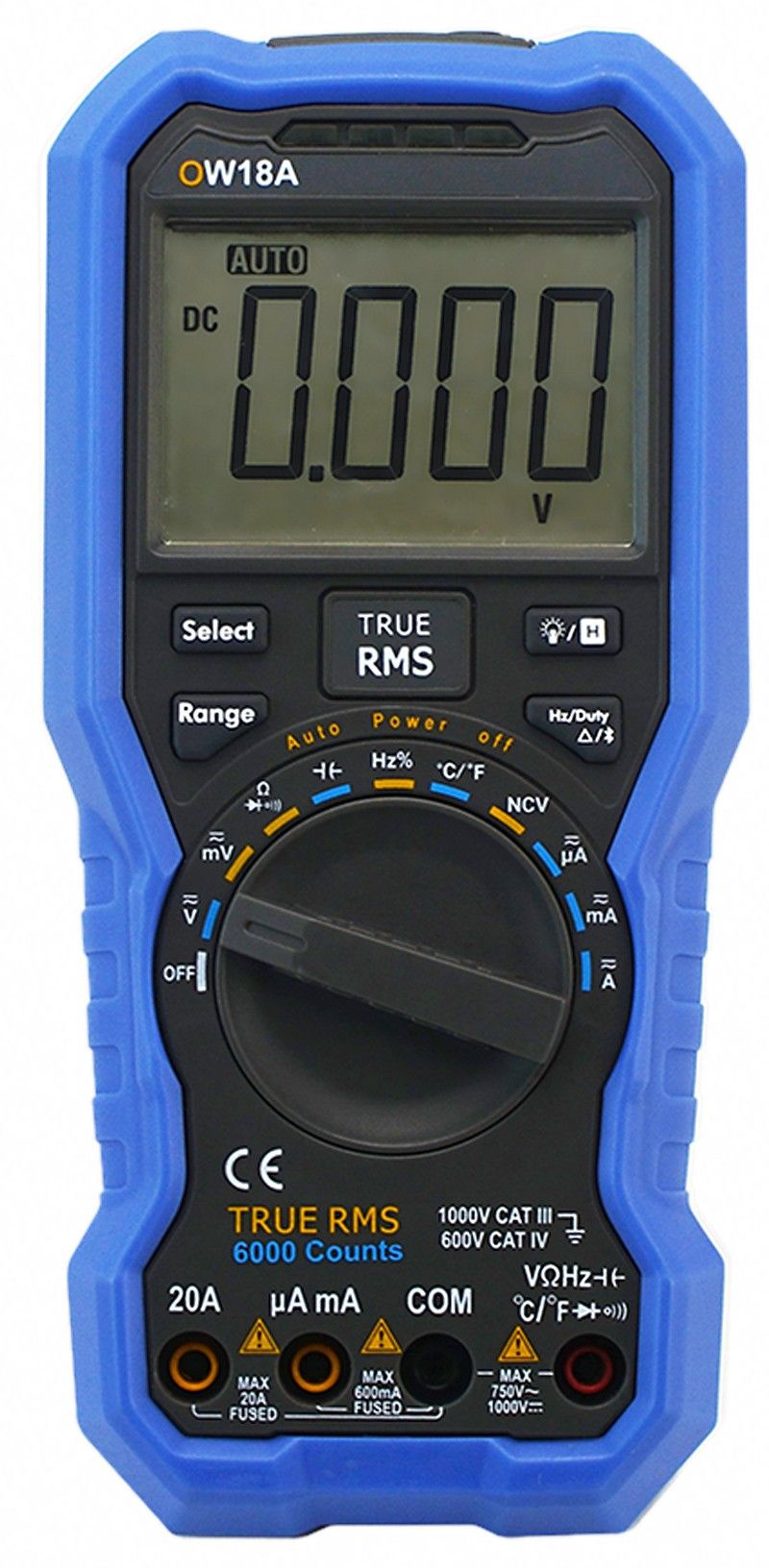

OWON® OW18A is a digital multimeter. Large backlit LCD with bar-graph display. True RMS (TRMS) measurement ensures more accurate readings for AC voltage and current measurements compared to traditional multimeters. Automatic power-off to extend battery life. You can measure AC/DC voltage and current, resistance, capacitance, frequency, temperature, perform diode test and audible continuity test.

Technical specifications

• large LCD display 69x52mm 3 5/6 digits (5999)
• input impedance: 10MΩ
• DC voltage measurement: 60mV-1000V, ±(0.5%+2 digits)
• AC voltage measurement: 6V-750V, ±(1%+2 digits)
• NVC voltage measurement = displays the frequency of the AC voltage
• DC current measurement: 60μA-20A, ±(0.8%+2 digits)
• AC current measurement: 60μA-20A, ±(1.0%+2 digits)
• resistance: 600Ω-60MΩ, ±(0.8%+2 digits)
• capacitance: 60nF~60mF, ±(2%+3 digits)
• frequency: 9.999Hz-9.999MHz, ±(0.8%+2 digits)
• PWM duty cycle: 0.1%-99.9%, ±(1.2%+3 digits)
• temperature: -50...+400°C, ±(2.5% of reading +3 digits)
• continuity test: beeps when below 30Ω
• built-in LED flashlight
• protection class: CAT III 1000V, CAT IV 600V
• battery: 9V (battery included)
• fuses: F1A/250V (resetable) and F20A/250V

Delivery includes: OW18A multimeter, K-type thermocouple, 9V snap battery, English user manual.

Finnish user manual available on request.

Note! Test leads are suitable for max. 10A / 60V measurements!
