You can build comprehensive test setups by chaining timed voltage and current settings.
Features
- one programmable output (0-30V 3A)
- one fixed-voltage output: selectable by button 5VDC or 3.3VDC 3A
- adjustable output resolution: 1mV / 1mA
- low ripple / low noise: <300 μVrms / 2 mVpp
- 100 group timers
- 10 group settings
- protections against overvoltage and short circuit
- automatic cooling
- color and graphical LCD display 3.9 inches, RGB, 480 × 320
- comprehensive interfaces: USB (host, device), RS232
- SCPI and LabVIEW support

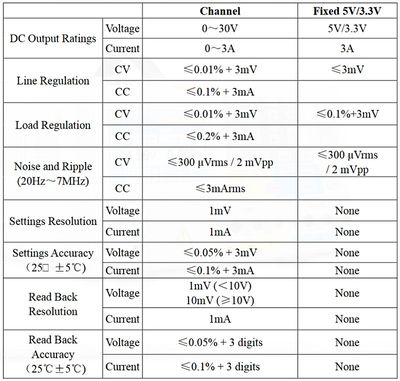

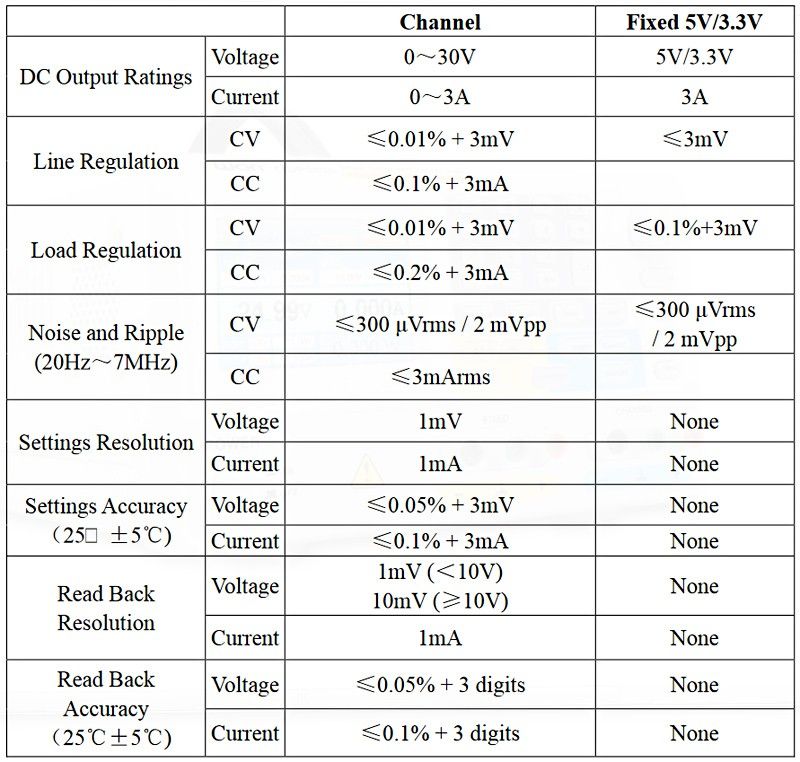

Specifications
| Model | ODP3031 |
|---|
| Output Power |
105W |
| Channel |
1 |
Fixed 3.3V / 5V |
| DC Output Rating |
Voltage |
0 - 30V |
3.3V / 5V |
| Current |
0 - 3A |
3A |
| Line Regulation |
CV |
≤0.01%+3mV |
≤3mV |
| CC |
≤0.1%+3mA |
/ |
| Load Regulation |
CV |
≤0.01%+3mV |
≤0.1% + 3mV |
| CC |
≤0.2%+3mA |
/ |
Noise and Ripple
(20Hz～7MHz) |
CV |
≤300μVrms/2mVpp |
| CC |
≤3mArms |
/ |
| Settings Resolution |
Voltage |
1mV |
/ |
| Current |
1mA |
/ |
Settings Accuracy
(25℃±5℃) |
Voltage |
≤0.05%+3mV |
/ |
| Current |
≤0.1%+3mA |
/ |
| Read Back Resolution |
Voltage |
1mV (＜10V), 10mV (≥10V) |
/ |
| Current |
1mA |
/ |
Read Back
Accuracy
(25℃±5℃) |
Voltage |
≤0.05%+3 digit |
/ |
| Current |
≤0.1%+3 digit |
/ |
| Communication Interface |
USB Host, USB Device and RS232 |
| Display |
|---|
| Display Type |
3.9 inch colored LCD |
| Display Resolution |
480 × 320 pixels |
| Display Color |
65536 colors |
| Mechanical Specifications |
|---|
| Dimension (W×H×D) |
250 × 158 × 358 (mm) |
| Device Weight |
7.00 kg |
Delivery
Included in delivery: ODP3031 power supply, CD software, spare fuse, power cord, USB cable, English quick guide
Finnish user manual available on request.
