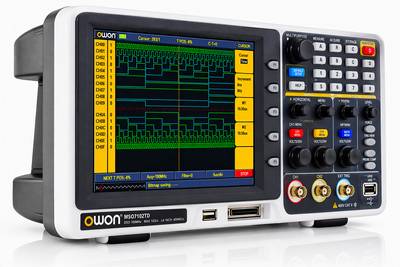

OWON MSO7102TD – 100 MHz mixed-signal oscilloscope

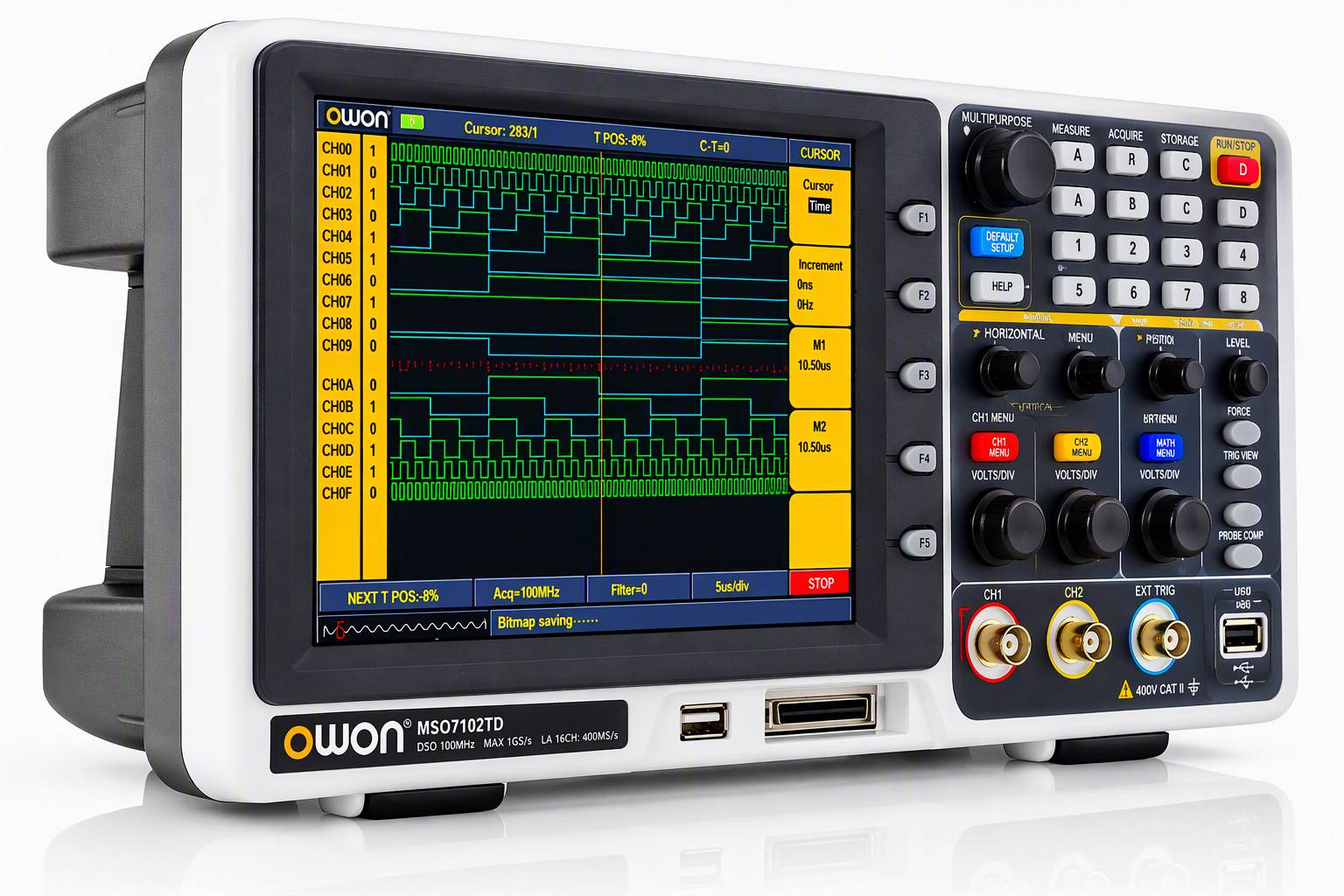

OWON MSO7102TD is a digital mixed-signal oscilloscope (MSO) that combines a 2-channel digital oscilloscope and a logic analyzer. The device is suitable for electronics design, troubleshooting, maintenance, testing and educational use.

Key features

• Bandwidth: 100 MHz
• Analog channels: 2
• Max. sampling rate: 1 GS/s
• Memory depth: 2 Mpts
• Typical rise time: 3.5 ns
• Input impedance: 1 MΩ / 15 pF
• Color LCD display

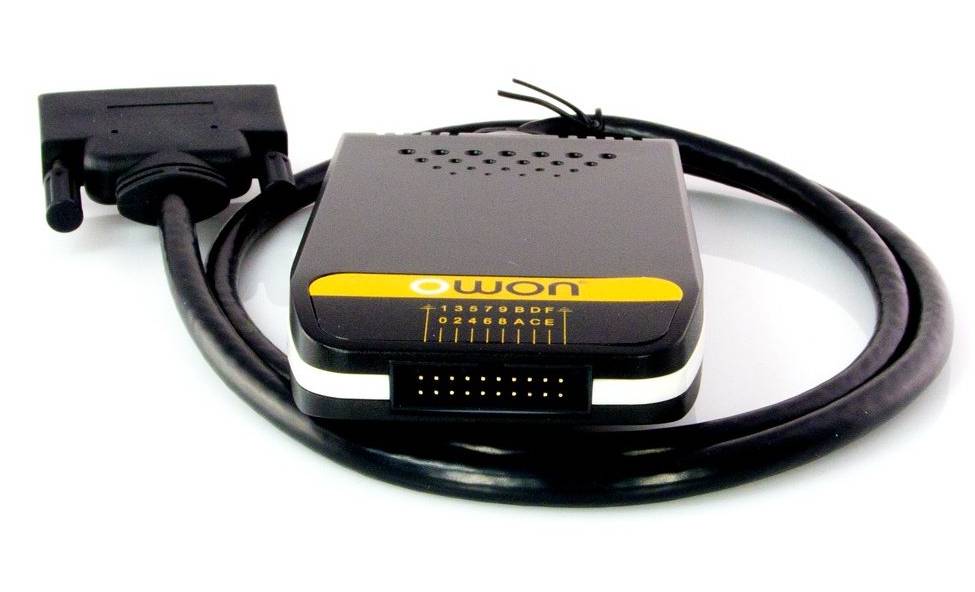

• Includes logic analyzer module
• USB interface
• Automatic measurement functions and cursor measurements
• FFT function for signal frequency-domain analysis
• Waveform recording and playback
• Autoscale function

Applications

• Electronics product development and prototype testing
• Troubleshooting of digital and analog circuits
• Testing of microcontroller and embedded systems
• Maintenance and repair work
• Laboratory and educational use

Manufacturer: OWON
Model: MSO7102TD
Product group: Mixed Signal Oscilloscope (MSO)

Package contents

• OWON MSO7102TD mixed-signal oscilloscope
• 2 × oscilloscope probes

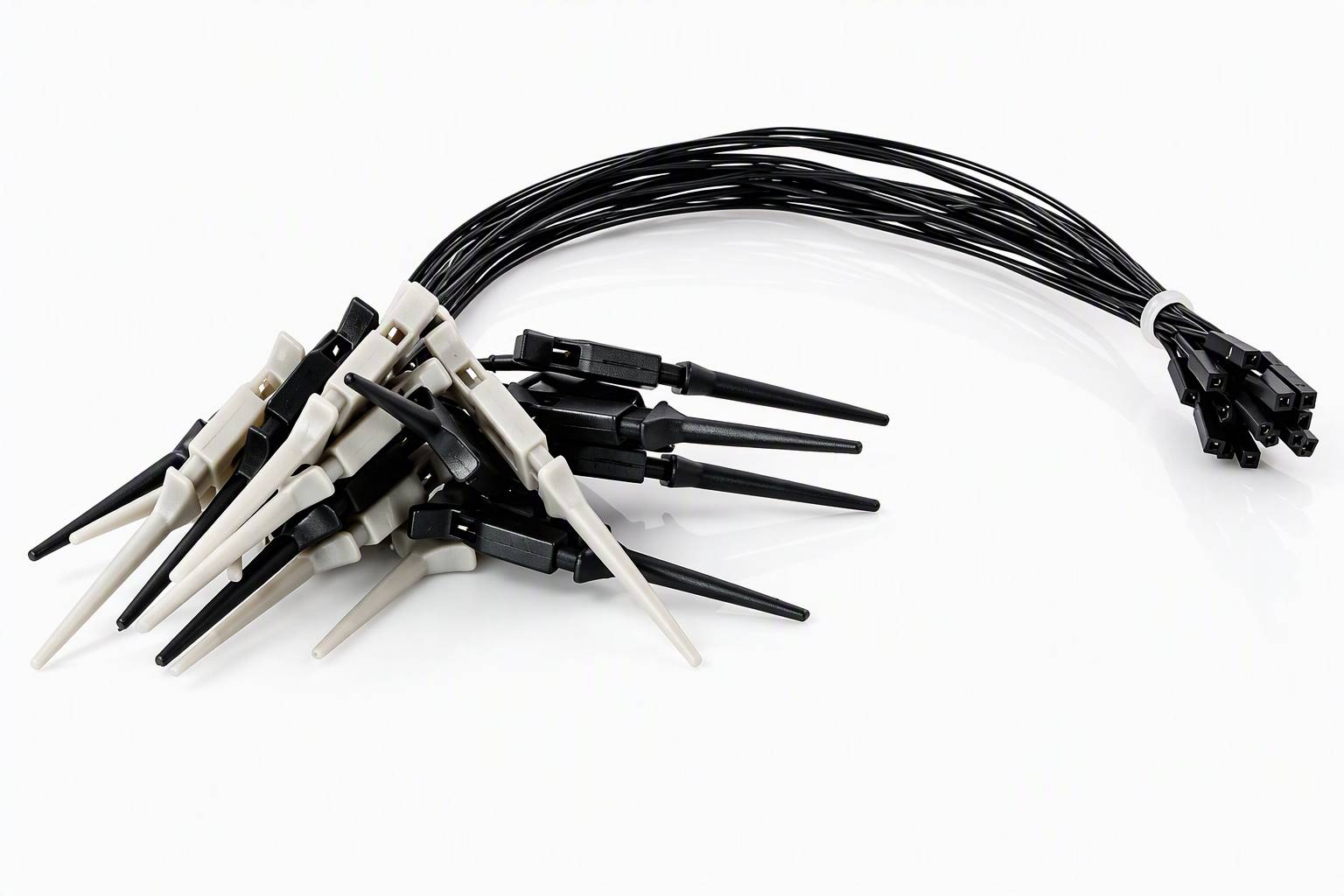

• Logic analyzer probe cable / sensor kit
• USB cable
• Power cord
• User manual / software according to the manufacturer's delivery method
