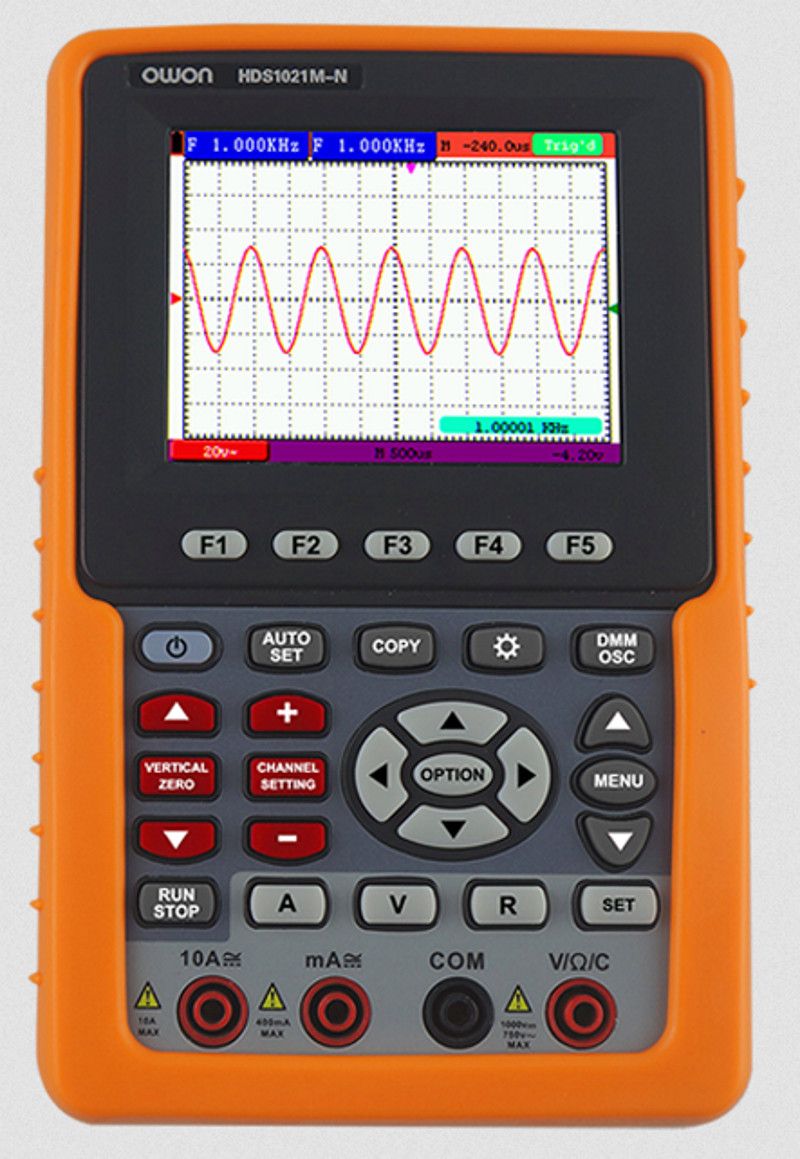

Model

HDS3102M-N

Bandwidth

100MHz

Sample Rate (real time )

1GS/s

Horizontal Scale (s/div)

5ns/div～100s/div, step by 1～2～5

Display

3.7” color TFT display (640 × 480 pixels)

Channel

dual

Record Length

6K points

Input Coupling

DC, AC, and GND

Vertical Sensitivity

5mV/div～5V/div (at input)

Vertical Resolution (A/D)

8 bits

Trigger Type

Edge, Video, and Alternate

Acquisition Mode

Sample, Peak Detect, and Average

Waveform Math

＋, －, ×, ÷, invert, FFT

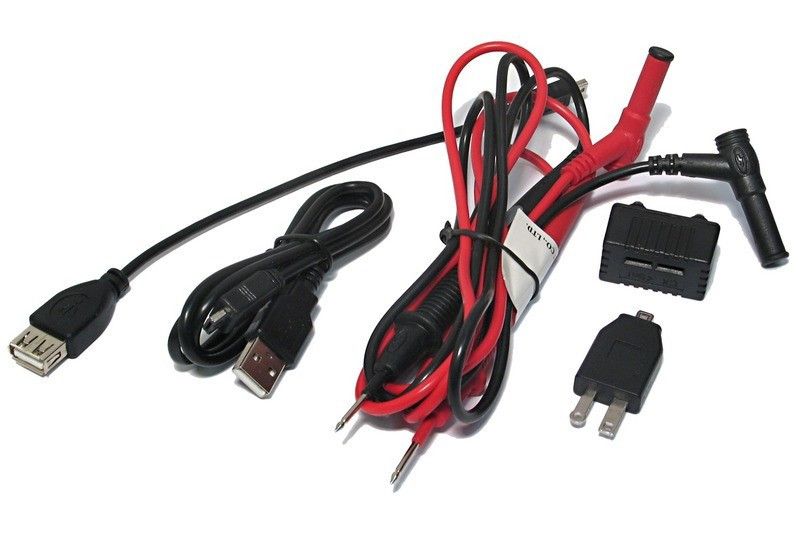

Communication Interface

USB

Power Supply

100V-240V AC, 50/60Hz

Li-ion Battery

7.4V, 6 hours’ operation

Dimensions (W × H × D)

115 × 180 × 40 (mm)

Weight (without package)

645.00 g

Multimeter Specifications

Full Scale Reading

3(3/4) digit (max 4000-count)

diode

0V-1V

Input Impedance

10 MΩ

On / Off Test

< 50 (± 30) beeping

Voltage

VDC : 400mV, 4V, 40V, 400V, 1000V : ±(1% ± 1 digit); max input : DC 1000V
VAC : 4V, 40V, 400V : ±(1% ± 3 digits), 750V : ±(2% ± 3 digits); Frequency : 40Hz - 400Hz;
max input : AC 750V (virtual value)

Current

DC : 40mA, 400mA : ±(1.5% ± 1 digit), 10A : ±(3% ± 3 digits)
AC : 40mA : ±(1.5% ± 3 digits), 400mA : ±(2% ± 1 digit), 10A : ±(5% ± 3 digits)

Impedance

400Ω : ±(1% ± 3 digits), 40ΚΩ - 4ΜΩ : ±(1% ± 1 digit), 40MΩ : ±(1.5% ± 3 digits)

Capacitance

51.2nF - 100uF : ±(3% ± 3 digits)
