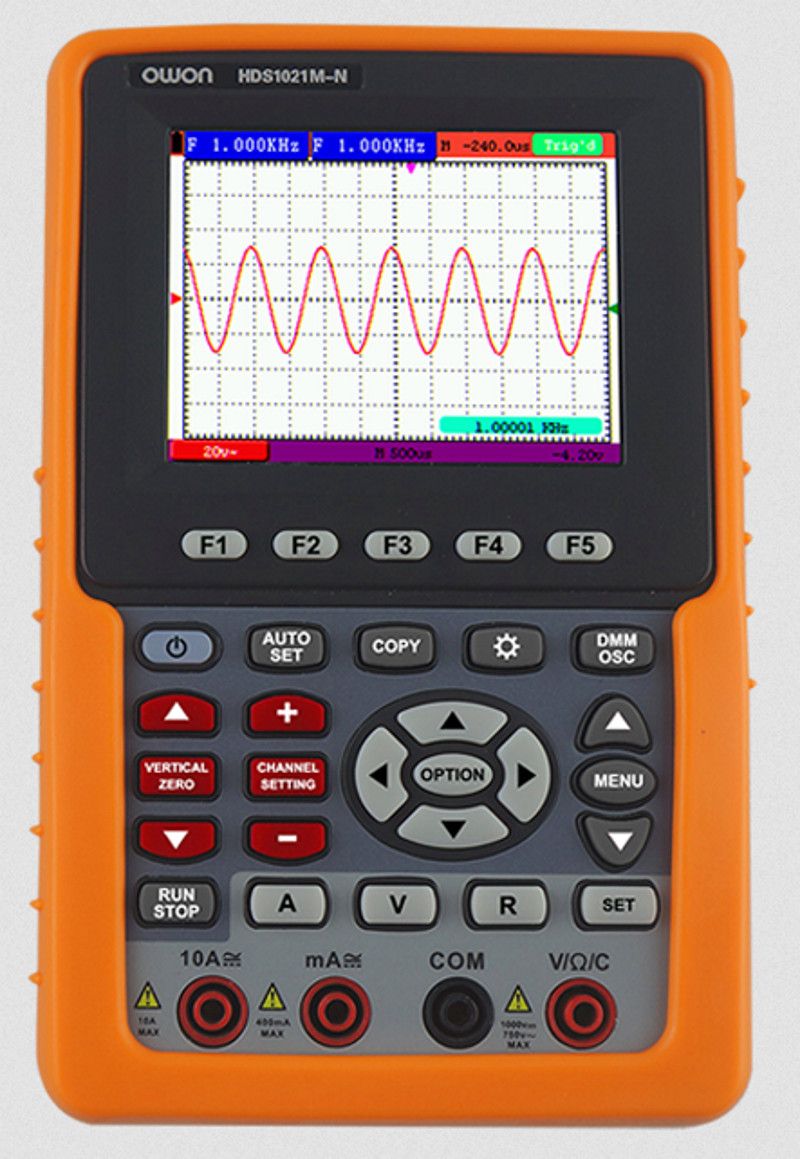

Features
- large 3.7" 640x480 TFT color display
- 100MHz analog bandwidth
- one channel, 1GSa/s sampling rate, 8-bit sample depth, memory 24K points
- scope input voltage rating: 400Vpp (CAT II)
- scope includes versatile measurement displays, triggers and FFT
- multimeter for basic measurements such as voltage, current, resistance, continuity, capacitance, diode test
- comprehensive interfaces such as USB device and USB HOST
- supports USB flash drive for saving measurements
- built-in battery 7.4V approx. 6h runtime
Specs
|
Model
|
HDS3101M-N
|
|
Bandwidth
|
100MHz
|
|
Sample Rate (real time )
|
1GS/s
|
|
Horizontal Scale (s/div)
|
5ns/div～100s/div, step by 1～2～5
|
|
Display
|
3.7” color TFT display (640 × 480 pixels)
|
|
Channel
|
single
|
|
Record Length
|
24K points
|
|
Vertical Sensitivity
|
5mV/div～5V/div (at input)
|
|
Vertical Resolution (A/D)
|
8 bits
|
|
Trigger Type
|
Edge, Video, and Alternate
|
|
Trigger Mode
|
Auto, Normal, and Single
|
|
Trigger Level
|
±6 divisions from screen center
|
|
Acquisition Mode
|
Sample, Peak Detect, and Average
|
|
Waveform Storage
|
4 waveforms
|
|
Communication Interface
|
mini-USB，mini-RS232
|
|
Power Supply
|
100V-240V AC, 50/60Hz
|
|
Li-ion Battery
|
7.4V, 6 hours’ operation
|
|
Dimensions (W × H × D)
|
115 × 180 × 40 (mm)
|
|
Weight (without package)
|
645.00 g
|
|
Multimeter Specifications
|
|
Full Scale Reading
|
3(3/4)digits (max 4000-count)
|
diode
|
0V-1V
|
|
Input Impedance
|
10 MΩ
|
On / Off Test
|
< 50 (± 30) beeping
|
|
Voltage
|
VDC : 400mV, 4V, 40V, 400V, 1000V : ±(1% ± 1 digit); max input : DC 1000V
VAC : 4V, 40V, 400V : ±(1% ± 3 digits), 750V : ±(2% ± 3 digits); Frequency : 40Hz - 400Hz;
max input : AC 750V (virtual value)
|
|
Current
|
DC : 40mA, 400mA : ±(1.5% ± 1 digit), 10A : ±(3% ± 3 digits)
AC : 40mA : ±(1.5% ± 3 digits), 400mA : ±(2% ± 1 digit), 10A : ±(5% ± 3 digits)
|
|
Impedance
|
400Ω : ±(1% ± 3 digits), 40ΚΩ - 4ΜΩ : ±(1% ± 1 digit), 40MΩ : ±(1.5% ± 3 digits)
|
|
Capacitance
|
51.2nF - 100uF : ±(3% ± 3 digits)
|
Delivery

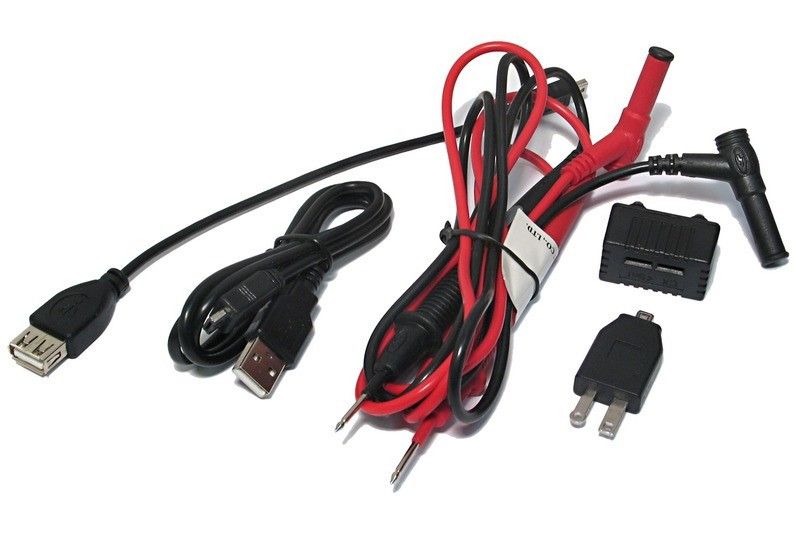

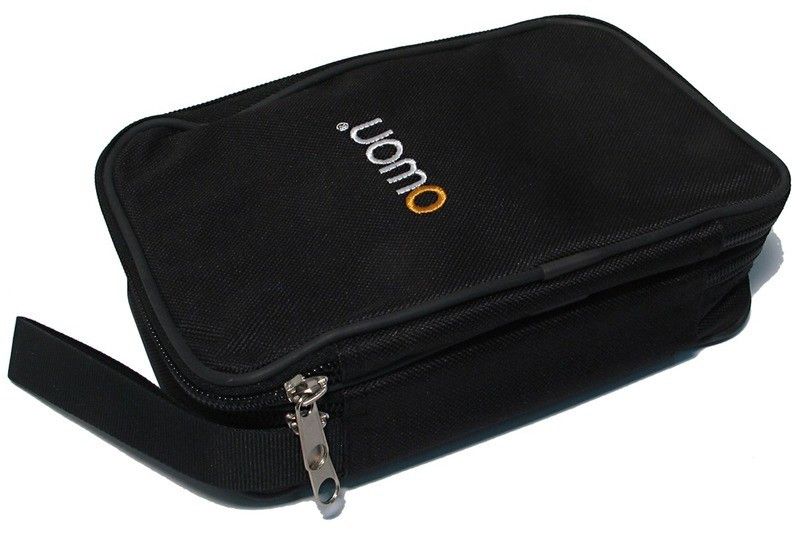

Included in the delivery: HDS3101M-N handheld scope, measurement probe, charger, test leads, adapter for capacitance measurement, adapter for probe calibration, USB adapter cables, soft carrying case, English user manual and CD
