Owon HDS272 HANDHELD SCOPE 70MHz 2CH

Name: Owon HDS272 HANDHELD SCOPE 70MHz 2CH
Brand: Owon
SKU: HDS272
Price: 237.90 EUR
Availability: InStock

In stock under 5 pcs

SKU#: HDS272

In stock under 5 pcs

SKU#: HDS272

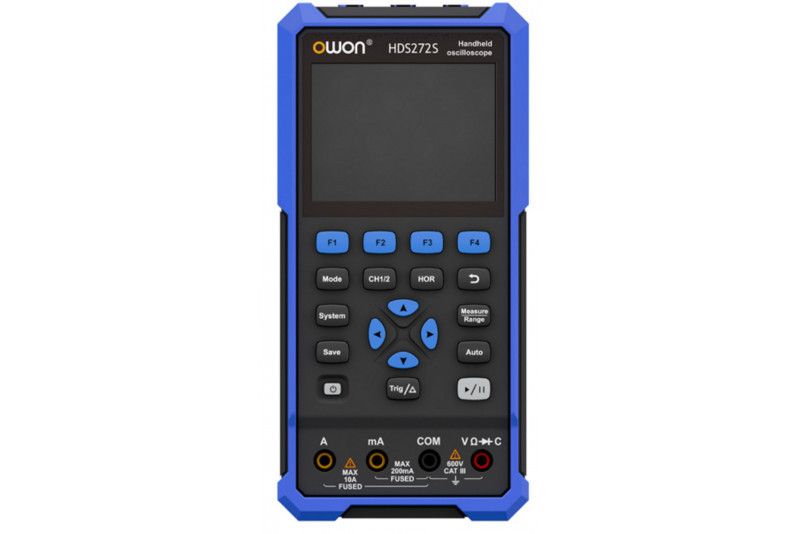

Owon HDS272 is a handheld 70MHz digital oscilloscope with two channels, multimeter functions and a USB-C interface.

237,90 €

In stock

Add a comment about the product

Product Description

selkeä 3,5" 320x240 TFT-värinäyttö
70MHz analoginen kaistanleveys
kaksi kanavaa, 250MSa/s (1ch) / 125MSa/s (2ch) näytteenottonopeus, 8-bit näytesyvyys, muisti 8Kpoints
skoopin jännitekesto: 400Vpp (CAT II)
skoopissa monipuoliset mitta-arvonäytöt, triggerit
seitsemän eri kursorimittausta
yleismittarilla perusmittaukset kuten Trms jännite, virta, resistanssi, jatkuvuus, kapasitanssi, dioditestaus
USB-C liitäntä jonka kautta latausmahdollisuus ja etäkäyttö PC-ohjelmistolla (USB)
kaksi 18650 akkukennoa, tehonkulutus alle 3W, n. 6h työskentelyaika
sisäinen kalibrointi -toiminto
standardi SCPI tuki

HDS272 käsiskooppi, mittaprobe, laturi, mittajohdot, BNC/kroko-johto, USB-johdo, pehmyt kantolaukku, englanninkielinen ohjekirjanen ja CD

Oscilloscope Specifications

Model	HDS242	HDS272	HDS242S	HDS272S
Bandwidth	40MHz	70MHz	40MHz	70MHz
Channels	2-CH Oscilloscope		2-CH Oscilloscope+1-CH Generator
Sample Rate	250MSa/s
Acquisition Model	Normal, Peak detect
Record Length	8K
Display	3.5-inch LCD
Waveform Refresh Rate	10,000 wfrms/s
Input Coupling	DC, AC, and Ground
Input Impedance	1 MΩ±2%, in parallel with 16pF±10pF
Probe Attenuation Factors	1X,10X,100X,1000X,10000X
Max. input Voltage	400V (DC+AC, PK-PK, 1MΩ input impedance) (10:1 probe attenuation)
Bandwidth Limit (typical)	20MHz
Horizontal Scale	5ns/div - 1000s/div, step by 1 - 2 - 5
Vertical Sensitivity	10mV/div - 10V/div
Vertical Resolution	8 bits
Trigger Type	Edge
Trigger Modes	Auto, Normal, single
Automatic Measurement	Period, Frequency, Mean, PK-PK, Max, Min
Cursor Measurement	ΔV, ΔT, ΔT&ΔV between cursors
Communication Interface	USB Type-C

Multimeter Specifications (Standard)

Max. Resolution	20,000 counts
Testing Mode	Voltage, Current, Resistance, Capacitance, Diode ,and Continuity test
Input Impedance	10MΩ
Max Input Voltage	AC 750V, DC 1000V
Max Input Current	DC : 10A AC : 10A
Diode	0 - 2V

Waveform GeneratorSpecifications (Only for HDS242S & HDS272S & HDS2102S & HDS2202S)

Availability In stock
Manufacturer Owon
Product path Home Measuring Instruments Electronic Measuring Instruments Oscilloscopes Owon HDS272 HANDHELD SCOPE 70MHz 2CH
SKU HDS272
Attributes
- Size category 3,5 tuumaa
- Resolution 320x240
- Channels 2
- Bandwidth 70MHz
- Sample memory 8K
- Sampling frequency 250MS/s
- Sample resolution 8bit
- Weight 0.6kg
- Manufacturer's model HDS272
- Click for more details https://www.owon.com.hk/products_owon_hds200_series_digital_oscilloscope
- Dimensions 198 x 96 x 38 mm
- Factory delivery time 4 weeks
- Instructions for use English; Finnish available on request (PDF format)
