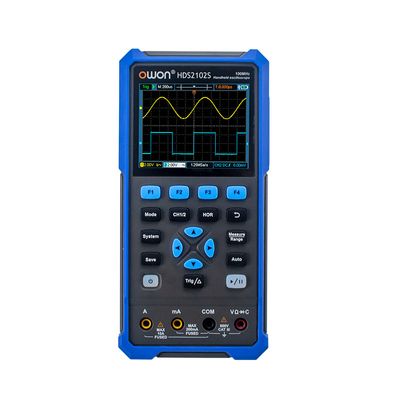

Owon HDS2202S HANDHELD SCOPE 200MHz 2CH+GEN

Name: Owon HDS2202S HANDHELD SCOPE 200MHz 2CH+GEN
Brand: Owon
SKU: HDS2202S
Price: 367.00 EUR
Availability: InStock

Temporarily out of stock

SKU#: HDS2202S

Temporarily out of stock

SKU#: HDS2202S

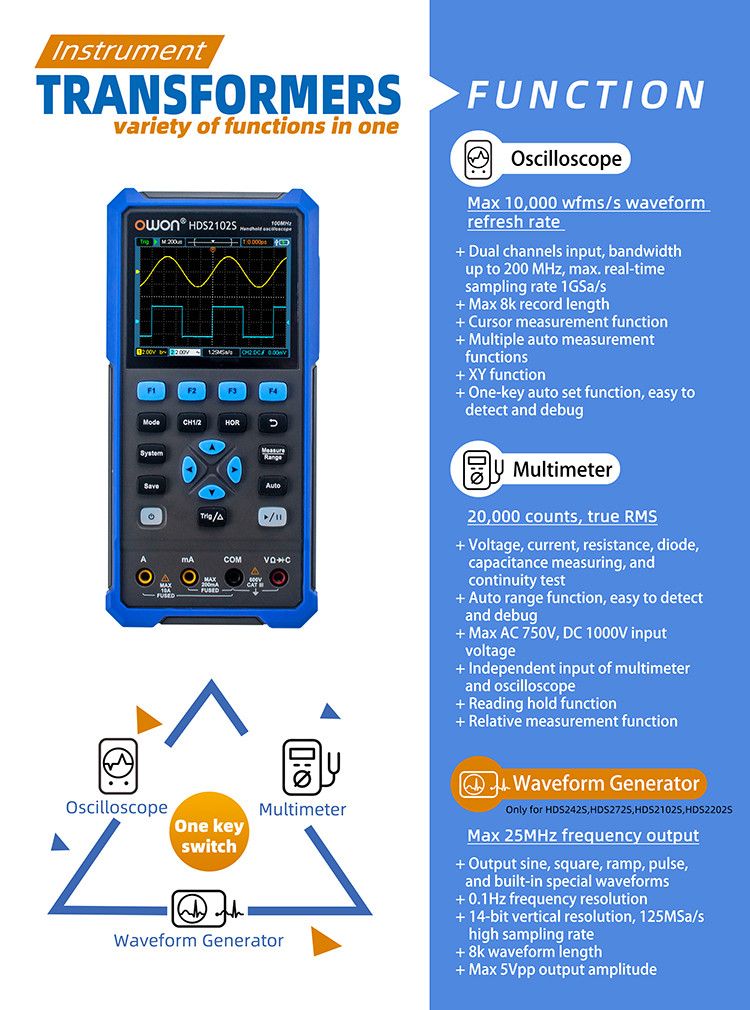

Owon HDS2202S is a handheld 200MHz digital oscilloscope with two channels, a signal generator, multimeter functions and USB-C connectivity.

367,00 €

Temporarily out of stock

Add a comment about the product to my order

Product Description

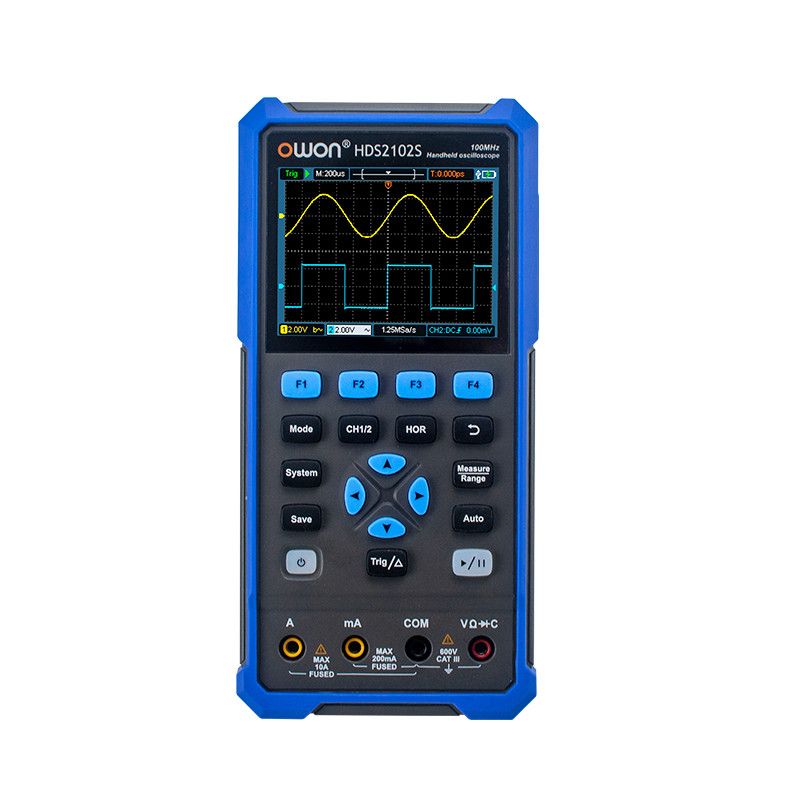

clear 3,5" 320x240 TFT color display
200MHz analog bandwidth
25Mhz signal generator with multiple waveforms
two channels, 1GSa/s (1ch) / 500MSa/s (2ch) sampling rate, 8-bit sample depth, memory 8Kpoints

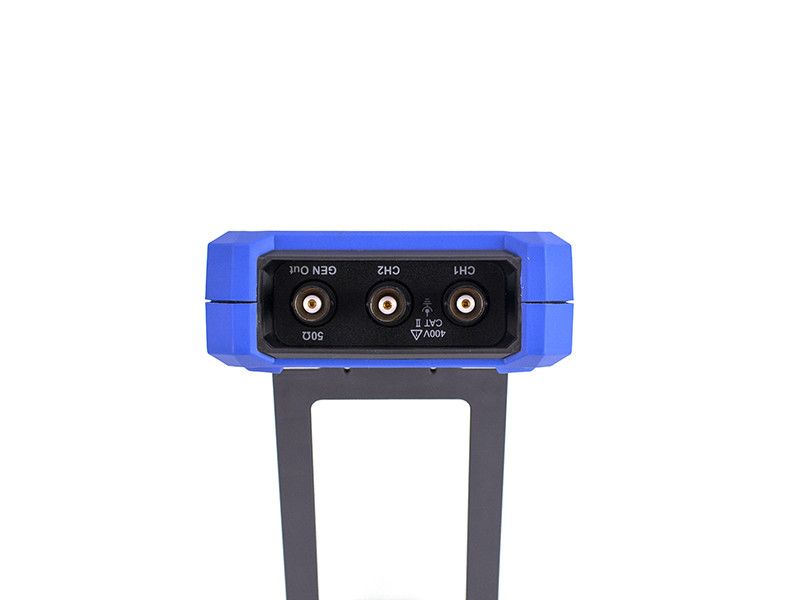

scope voltage withstand: 400Vpp (CAT II)
scope with versatile measurement displays, triggers
seven different cursor measurements

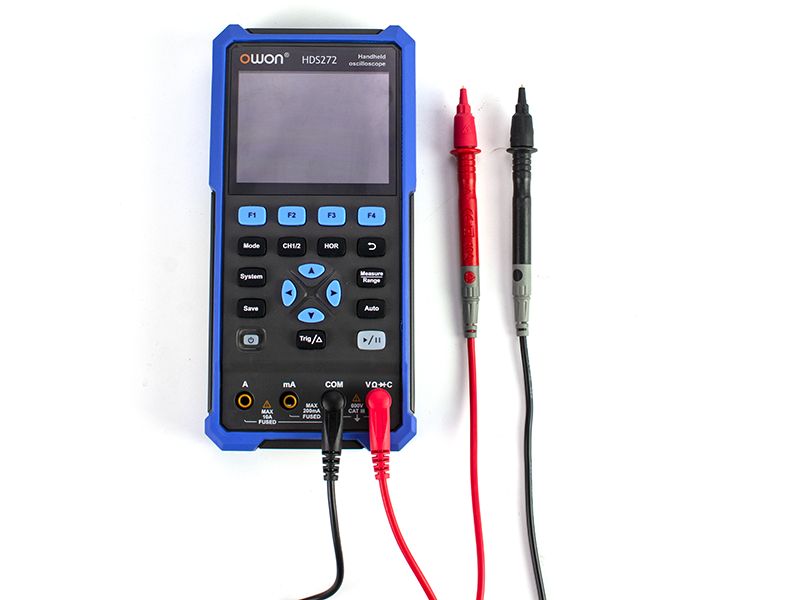

multimeter with basic measurements such as Trms voltage, current, resistance, continuity, capacitance, diode test
USB-C interface providing charging capability and remote control with PC software (USB)
two 18650 battery cells, power consumption under 3W, approx. 6h operating time
internal calibration function
standard SCPI support

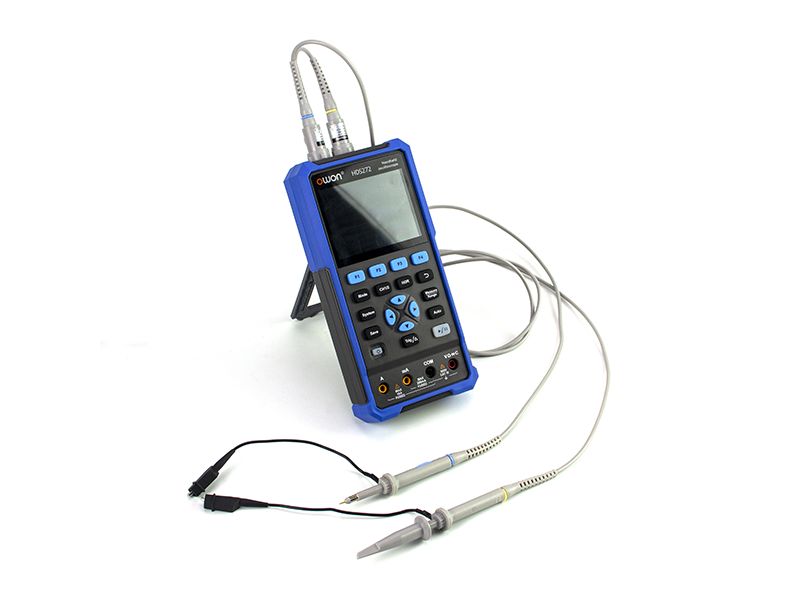

HDS2202S handheld oscilloscope, measurement probe, charger, test leads, BNC/crocodile lead, USB cable, soft carrying case, English manual and CD

Finnish user manual available on request.

Oscilloscope Specifications

Model	HDS2202S
Bandwidth	200MHz
Channels	2-CH Oscilloscope+1-CH Generator
Sample Rate	1000MSa/s
Acquisition Model	Normal, Peak detect
Record Length	8K
Display	3.5-inch LCD
Waveform Refresh Rate	10,000 wfrms/s
Input Coupling	DC, AC, and Ground
Input Impedance	1 MΩ±2%, in parallel with 16pF±10pF
Probe Attenuation Factors	1X,10X,100X,1000X,10000X
Max. input Voltage	400V (DC+AC, PK-PK, 1MΩ input impedance) (10:1 probe attenuation)
Bandwidth Limit (typical)	20MHz
Horizontal Scale	2ns/div - 1000s/div, step by 1 - 2 - 5
Vertical Sensitivity	10mV/div - 10V/div
Vertical Resolution	8 bits
Trigger Type	Edge
Trigger Modes	Auto, Normal, single
Automatic Measurement	Period, Frequency, Mean, PK-PK, Max, Min
Cursor Measurement	ΔV, ΔT, ΔT&ΔV between cursors
Communication Interface	USB Type-C

Multimeter Specifications (Standard)

Max. Resolution	20,000 counts
Testing Mode	Voltage, Current, Resistance, Capacitance, Diode ,and Continuity test
Input Impedance	10MΩ
Max Input Voltage	AC 750V, DC 1000V
Max Input Current	DC : 10A AC : 10A
Diode	0 - 2V

Waveform GeneratorSpecifications (Only for HDS242S & HDS272S & HDS2102S & HDS2202S)

Availability Temporarily out of stock
Manufacturer Owon
Product path Home measuring-instruments Electronic Measuring Instruments Oscilloscopes Owon HDS2202S HANDHELD SCOPE 200MHz 2CH+GEN
SKU HDS2202S
Attributes
- Size category 3,5 tuumaa
- Resolution 320x240
- Channels 2+1
- Bandwidth 200MHz
- Sample memory 8K
- Sampling frequency 1GS/s
- Sample resolution 8bit
- Weight 0.6kg
- Manufacturer's model HDS2202S
- Click for more details https://www.owon.com.hk/products_owon_hds200_series_digital_oscilloscope

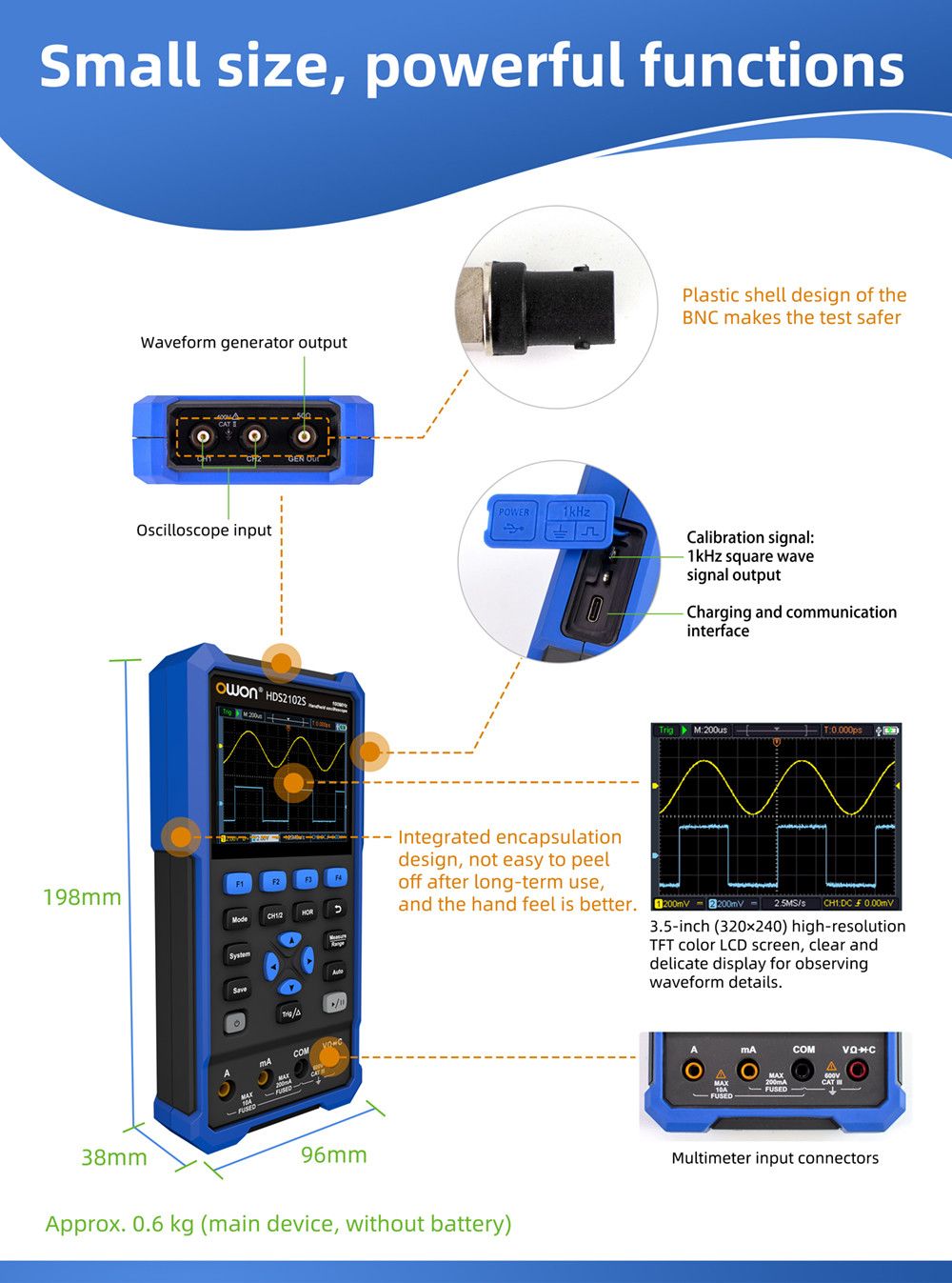

- Dimensions 198 x 96 x 38 mm
- Factory delivery time 4 weeks
- Instructions for use In English; Finnish available upon request (PDF format)
