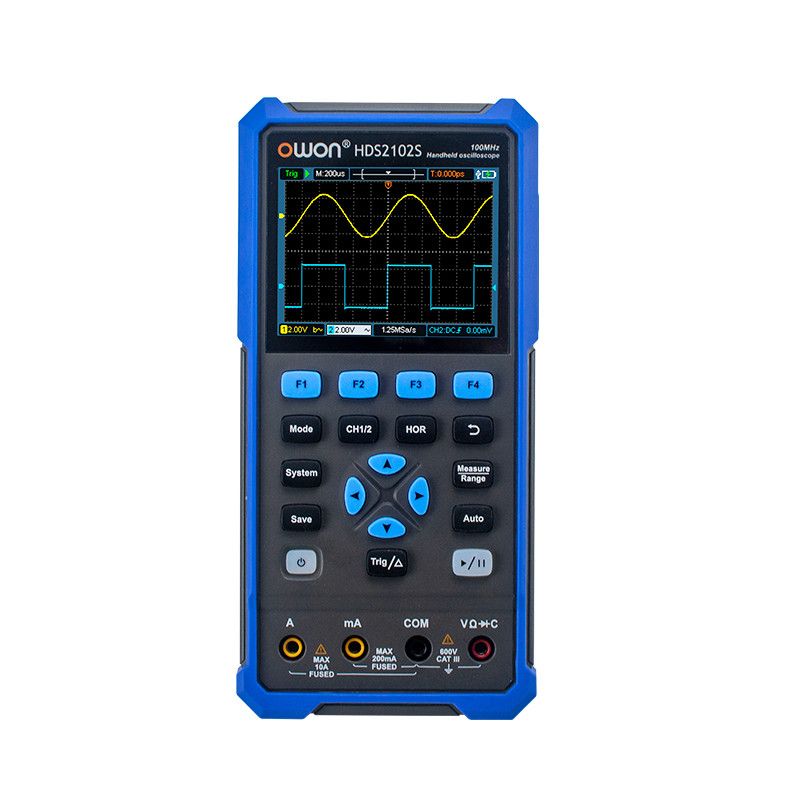

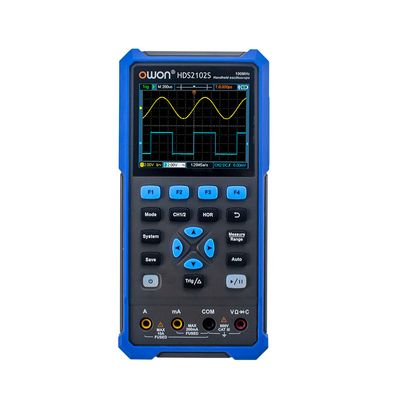

The Owon HDS2102 is a handheld 100MHz digital oscilloscope with two channels, multimeter functions, and a USB-C interface.

269,83 €

Temporarily out of stock in the online store

Add a comment about the product

Product Description

clear 3,5" 320x240 TFT color display
100MHz analog bandwidth
two channels, 500MSa/s (1ch) / 250MSa/s (2ch) sampling rate, 8-bit sample depth, memory 8Kpoints
scope voltage withstand: 400Vpp (CAT II)
scope has versatile measurement displays, triggers
seven different cursor measurements

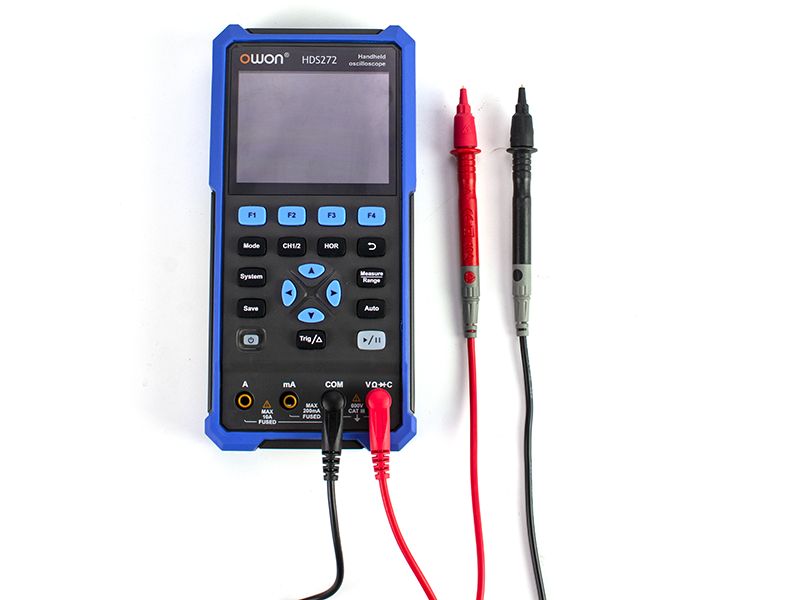

multimeter basic measurements such as Trms voltage, current, resistance, continuity, capacitance, diode test
USB-C connector providing charging capability and remote control with PC software (USB)
two 18650 battery cells, power consumption under 3W, approx. 6h operating time
internal calibration function
standard SCPI support

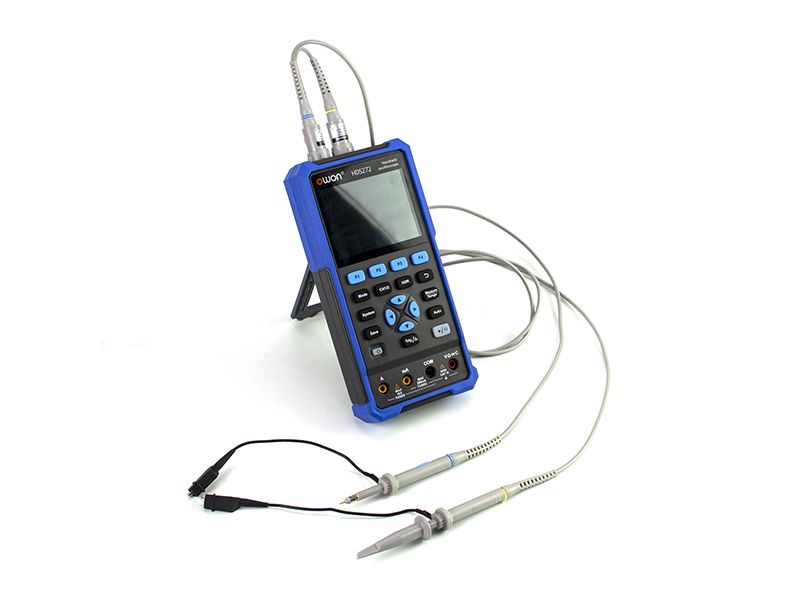

HDS2102 handheld oscilloscope, measurement probe, charger, test leads, BNC/crocodile lead, USB cable, soft carrying case, English manual and CD

Finnish user manual available upon request.

Oscilloscope Specifications

Model	HDS2102
Bandwidth	100MHz
Channels	2-CH Oscilloscope
Sample Rate	500MSa/s
Acquisition Model	Normal, Peak detect
Record Length	8K
Display	3.5-inch LCD
Waveform Refresh Rate	10,000 wfrms/s
Input Coupling	DC, AC, and Ground
Input Impedance	1 MΩ±2%, in parallel with 16pF±10pF
Probe Attenuation Factors	1X,10X,100X,1000X,10000X
Max. input Voltage	400V (DC+AC, PK-PK, 1MΩ input impedance) (10:1 probe attenuation)
Bandwidth Limit (typical)	20MHz
Horizontal Scale	2ns/div - 1000s/div, step by 1 - 2 - 5
Vertical Sensitivity	10mV/div - 10V/div
Vertical Resolution	8 bits
Trigger Type	Edge
Trigger Modes	Auto, Normal, single
Automatic Measurement	Period, Frequency, Mean, PK-PK, Max, Min
Cursor Measurement	ΔV, ΔT, ΔT&ΔV between cursors
Communication Interface	USB Type-C

Multimeter Specifications (Standard)

Max. Resolution	20,000 counts
Testing Mode	Voltage, Current, Resistance, Capacitance, Diode ,and Continuity test
Input Impedance	10MΩ
Max Input Voltage	AC 750V, DC 1000V
Max Input Current	DC : 10A AC : 10A
Diode	0 - 2V

Waveform GeneratorSpecifications (Only for HDS242S & HDS272S & HDS2102S & HDS2202S)

Availability Temporarily out of stock in the online store
Manufacturer Owon
Product path Home Measuring Instruments Electronic Measuring Instruments Oscilloscopes Owon HDS2102 HANDHELD SCOPE 100MHz 2CH
SKU HDS2102
Attributes
- Size category 3,5 tuumaa
- Resolution 320x240
- Channels 2
- Bandwidth 100MHz
- Sample memory 8K
- Sampling frequency 500MS/s
- Sample resolution 8bit
- Weight 0.6kg
- Manufacturer's model HDS2102
- Click for more details https://www.owon.com.hk/products_owon_hds200_series_digital_oscilloscope

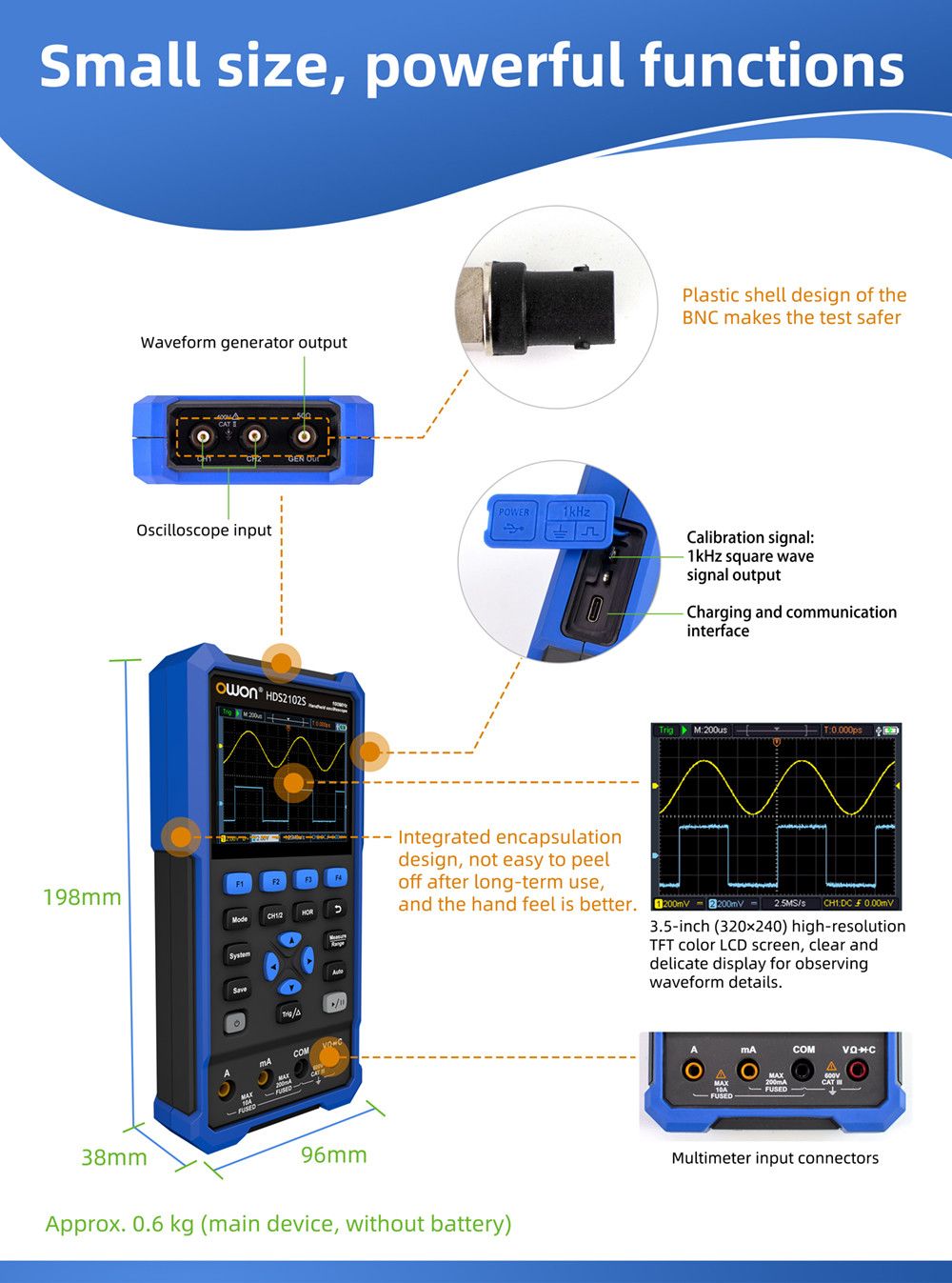

- Dimensions 198 x 96 x 38 mm
- Factory delivery time 4 weeks
- Instructions for use In English; Finnish available on request (PDF format)
