Owon HDS1021M-N HANDHELD SCOPE 20MHZ 1CH

Name: Owon HDS1021M-N HANDHELD SCOPE 20MHZ 1CH
Brand: Owon
SKU: HDS1021M-N
Price: 270.23 EUR
Availability: InStock

Temporarily out of stock

SKU#: HDS1021M-N

Owon HDS1021M-N HANDHELD SCOPE 20MHZ 1CH

Owon HDS1021M-N HANDHELD SCOPE 20MHZ 1CH

Temporarily out of stock

SKU#: HDS1021M-N

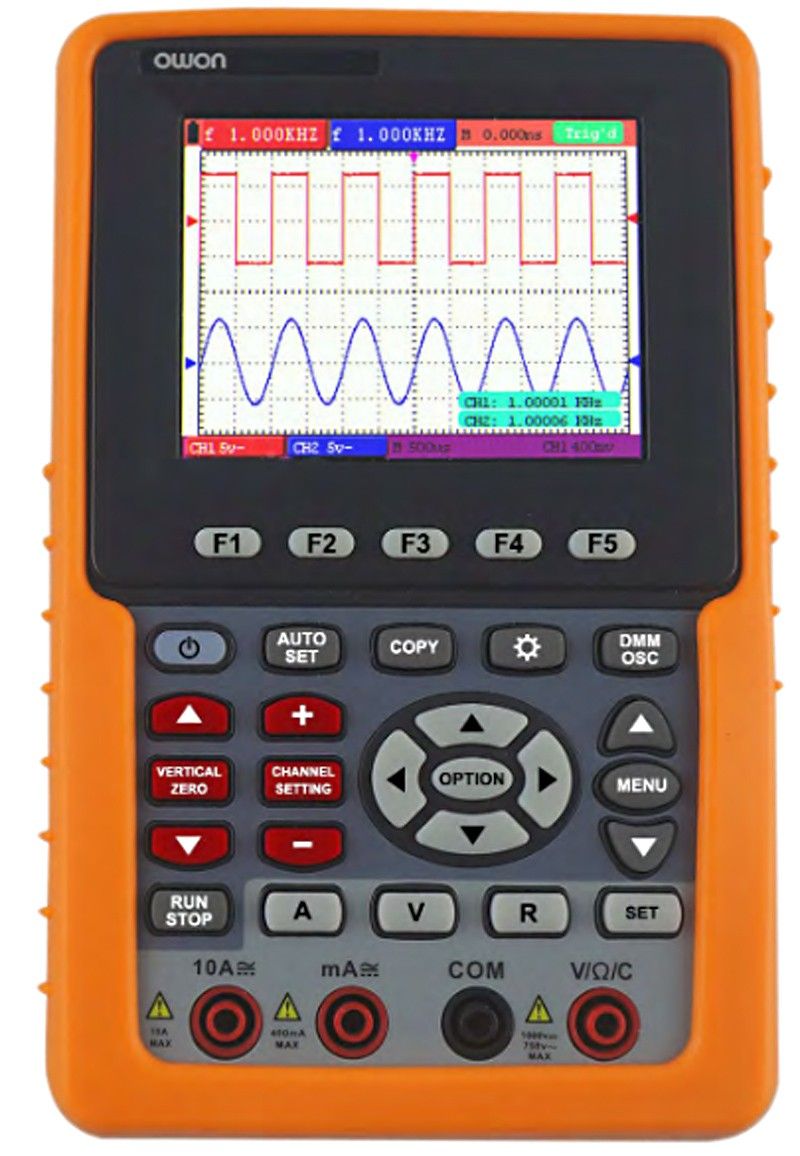

Owon HDS1021M-N - handheld, single-channel digital oscilloscope 20MHz

270,23 €

Made to order, delivery time usually 7-14 days

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

large 3,7" 640x480 TFT color display
20MHz analog bandwidth
one channel, 500MSa/s sampling rate, 8-bit sample depth, 6Kpoints memory
scope voltage rating: 400Vpp (CAT II)
the scope has versatile measurement displays, triggers and FFT
multimeter with basic measurements such as voltage, current, resistance, continuity, capacitance, diode test
comprehensive connections such as USB device and USB HOST
supports USB flash drive for saving measurements
built-in battery 7,4V approx. 6h runtime

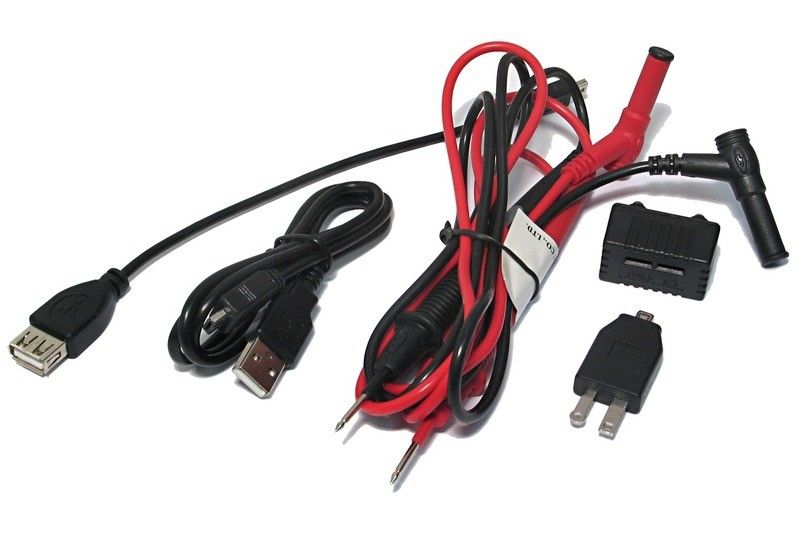

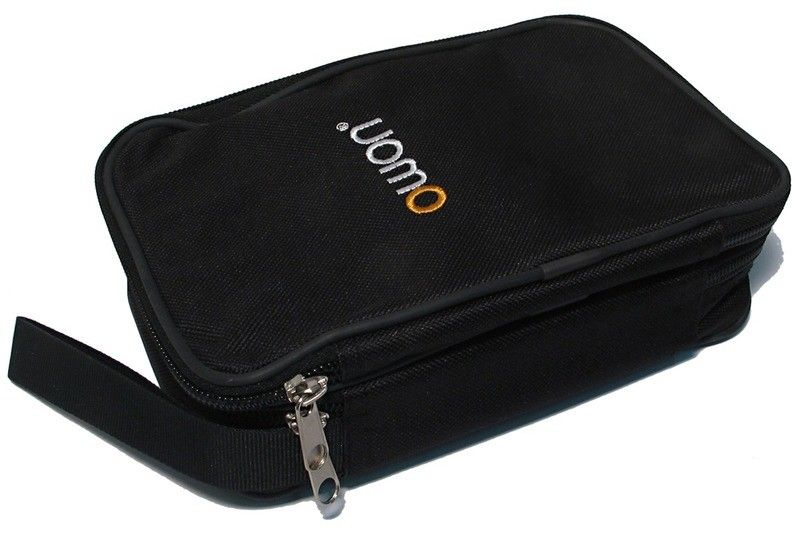

Included in delivery: HDS1021M-N handheld scope, probe, charger, test leads, adapter for capacitance measurement, adapter for probe calibration, USB adapter cables, soft carrying case, English manual and CD

Product Information

Availability Made to order, delivery time usually 7-14 days
Manufacturer Owon
EAN 7102010100004
Product path Home Measuring Instruments Electronic Measuring Instruments Oscilloscopes Owon HDS1021M-N HANDHELD SCOPE 20MHZ 1CH
SKU HDS1021M-N
Attributes
- Size category 3,7 tuumaa
- Resolution 640x480
- Channels 1
- Bandwidth 20MHz
- Sample memory 6K
- Sampling frequency 500MS/s
- Sample resolution 8bit
- Weight 645g
- Manufacturer's model Owon HDS1021M-N
- Click for more details http://www.owon.com.hk/products_owon_hds-n_series_1-ch_digital_oscilloscope
- Dimensions 115 x 180 x 40 mm
- Factory delivery time 4 weeks
- Instructions for use only in English
