Owon FDS1102A OSKILLOSCOPE 100MHZ 2CH

Name: Owon FDS1102A OSKILLOSCOPE 100MHZ 2CH
Brand: Owon
SKU: FDS1102A
Price: 1698.30 EUR
Availability: InStock

Temporarily out of stock

SKU#: FDS1102A

Temporarily out of stock

SKU#: FDS1102A

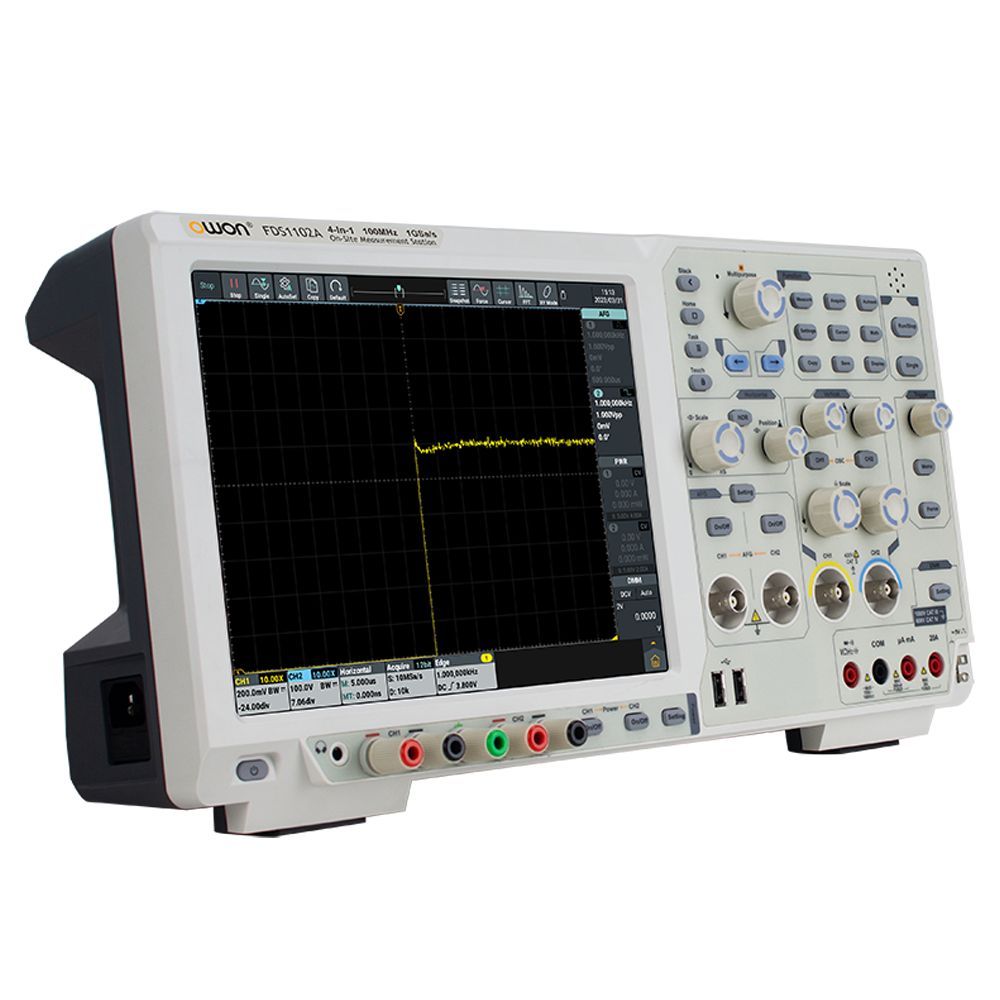

Owon FDS1102A - two-channel oscilloscope with Android operating system, 100MHz, 1GS/s, 14-bit and 10.4 inch touchscreen.

1698,30 €

Made to order, delivery time usually 7-14 days

Add a comment about the product

Product Description

DSO+AG+Power supply + Multimeter 4-in-1
Supports edge trigger, slope, pulse width, window, under amplitude, interval, timeout, code type, Nth edge, video trigger, serial bus trigger, etc.
Supports FRA formula testing
Based on the Android operating system, offers a new user experience and more possibilities
Supports external HDMI display, mouse and keyboard
Supports configuration of multimedia devices such as camera, microphone, speaker and headphone jack

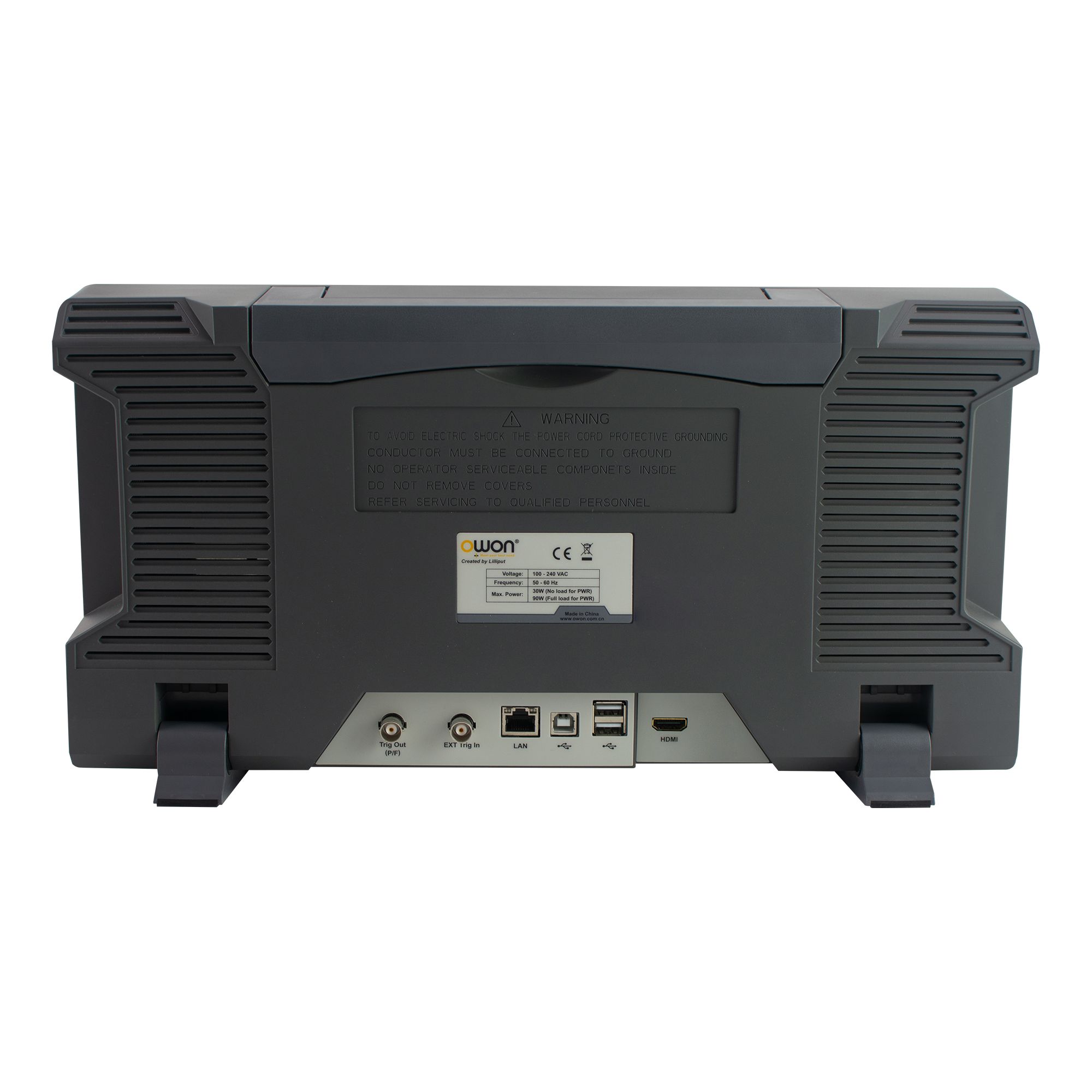

Wide range of interfaces: USB host x4, USB device, LAN, HDMI
10.4-inch capacitive HD touch screen

Model	FDS1102A
Bandwidth	100MHz
Sample Rate	1GS/s
Vertical Resolution (A/D)	14 bits
Input impedance	1 MO ± 2%, in parallel with 15pF ± SpF
Record length	10M
Horizontal Scale (s/div))	2ns/div - 1000s/div, step by 1 - 2 - 5
Max Input Voltage	1MΩ < 300vRMS;
Channel	2 (CH1/CH2)
Display	10.4 inch (1024x768) touch LCD
Input Coupling	DC, AC, GND
Vertical Sensitivity	1mV/div - 10V/div (at input)
Automatic Measurement	Period, Frequency, +Pulse Width, -Pulse Width, Rise Time, Fall Time, Screen Duty, +Duty Cycle, -Duty Cycle, PK-PK, RMS, Overshoot, Max, Min, Top, Cycle RMS, Base, Amplitude, Preshoot, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count, Area, Cycle Area, Delay A—B , Delay A--'B , Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF
Trigger Type	Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, LIN and CAN (optional)
Line / Field Frequency (video)	NTSC, PAL and SCREAM standard
Trigger Mode	Auto, Normal, and Single
Waveform Math	+, -, *, /, FFT, user defined function, digital filter
Waveform Storage	100 waveforms
Interface	HDMI; USB device 1, USB Host 4 ; Trig Out(P/F); LAN; earphone
Frequency Counter	available
WIFI	avaible

Availability Made to order, delivery time usually 7-14 days
Manufacturer Owon
Product path Home Measuring Instruments Electronic Measuring Instruments Oscilloscopes Owon FDS1102A OSKILLOSCOPE 100MHZ 2CH
SKU FDS1102A
Attributes
- Size category 10,4 tuumaa
- Resolution 1024x768
- Channels 2
- Bandwidth 100MHz
- Sampling frequency 1GS/s
- Sample resolution 14bit
- Manufacturer's model FDS1102A
- Factory delivery time 4 weeks
- Instructions for use only in English
