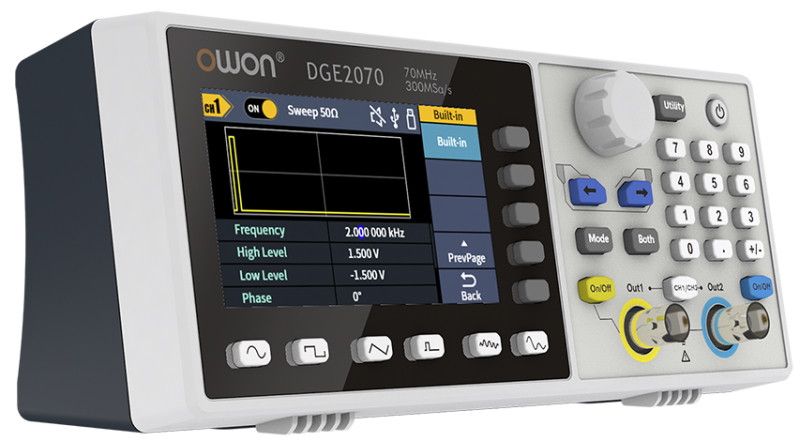

Owon DGE2035 35MHz SIGNAL GENERATOR

Name: Owon DGE2035 35MHz SIGNAL GENERATOR
Brand: Owon
SKU: DGE2035
Price: 200.16 EUR
Availability: InStock

In stock under 5 pcs

SKU#: DGE2035

Owon DGE2035 35MHz SIGNAL GENERATOR

In stock under 5 pcs

SKU#: DGE2035

Owon DGE2035 - compact 35MHz dual-channel function and signal generator with versatile modulation capabilities.

200,16 €

In stock

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Features

35MHz frequency output
125MSa/s sampling rate, vertical resolution 1μHz
14 bits vertical resolution, 8K Arb waveform length
Comprehensive waveform output: 5 basic waveforms and 150 built-in arbitrary waveforms.
Comprehensive modulation functions: AM, FM, PM, FSK, sweep and Burst.
SCPI and LabVIEW support

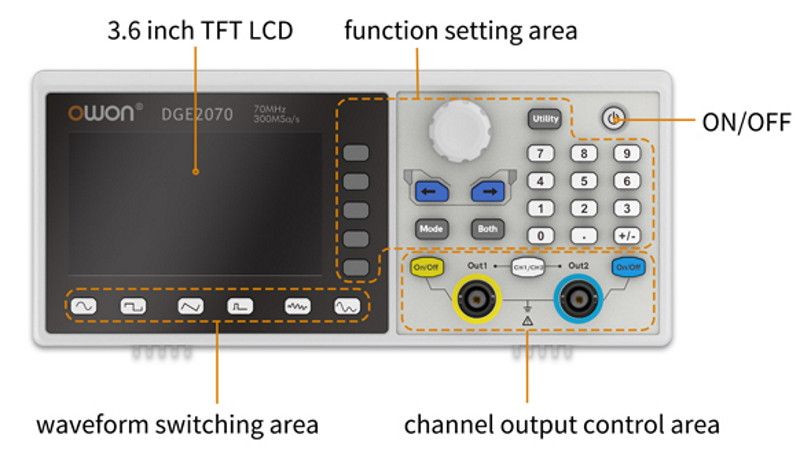

3.6 inch color LCD display (480 × 260 pixels)
Compact size, does not take much desktop space

Specifications

Model	DGE2035	DGE2070
Channel	2
Frequency Output	35MHz	70MHz
Sample Rate	125MSa/s	300MSa/s
Vertical Resolution	14 bits
Waveform
Standard Waveform	sine, square, pulse, ramp, noise
Arbitrary Waveform	exponential rise, exponential fall, sin(x)/x, step wave, and others,total 150 built-in waveforms
Frequency (resolution 1μHz)
Sine	1μHz-35MHz	1μHz-70MHz
Square	1μHz ~ 15MHz	1μHz ~ 20MHz
Pulse	1μHz ~ 15MHz	1μHz ~ 20MHz
Ramp	1μHz ~ 1MHz	1μHz ~ 2MHz
Noise	20MHz (-3dB, typical)
Arbitrary Waveform	1μHz ~ 10MHz
Sine Wave Spectrum Purity
Harmonic Distortion (typical (0dB))	DC - 1MHz：<-65dBc 1MHz - 30MHz：<-60dBc 30MHz - 60MHz：<-50dBc
Total Harmonic Distortion	＜0.2%, 10 Hz to 20 kHz, 1 Vpp
Spurious (non-harmonic) (typical (0dB))	≤10MHz：<-70dBc >10MHz：<-70dBc + 6dB/octave band
Phase Noise (typical (0 dBm, 10 kHz deviation))	typical(0dBm,10kHz offset) 10MHz：-110dBc/Hz
Ramp
Linearity	≤1% of peak output (typical, 1kHz, 1 Vpp, 50% symmetry)
Symmetry	0% ~ 100%
Arbitrary
Waveform Length	2 points – 8K points
Sample Rate	125Ma/s	300Ma/s
Amplitude
into 50Ω load	1mVpp ~ 10Vpp（≤ 10MHz） 1mVpp ~ 5Vpp （≤70MHz）
DC Offset Range (AD+DC)	±(10 Vpk – Amplitude Vpp/2) high resistance ±(5 Vpk – Amplitude Vpp/2) 50 Ω
DC offset resolution	1mV or 4digits
Load Impedance	50Ω (typical)
DC offset Accuracy	±(1 % of \|setting\| + 1 mV + amplitude Vpp * 0.5%)
Modulation
Type	AM、FM、PM、FSK、Sweep、Burst
Sweep characteristic
Trigger source	Internal, external,
Input / Output
Display	3.6 inch 480 x 260 pixels LCD

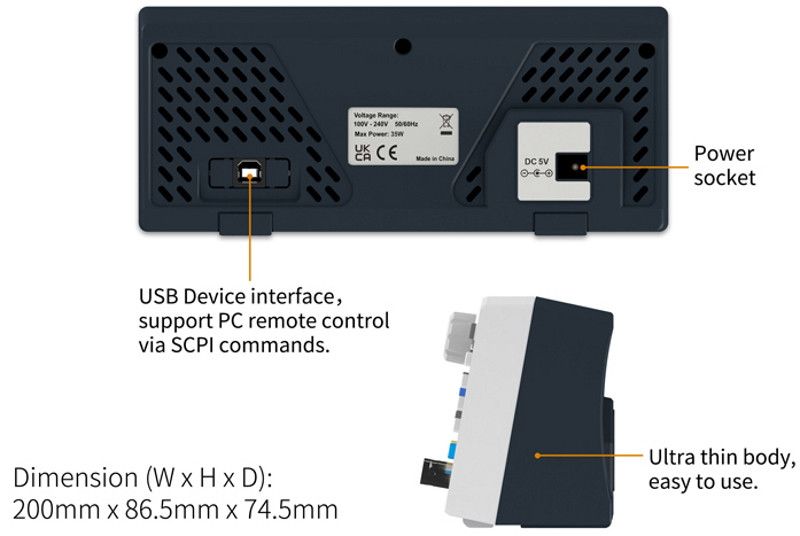

Communication Interface	USB Host
Mechanical specifications
Size	200mm68.5mm74.5mm
Weight	0.45kg

Package contents

DGE2035 signal generator
English quick guide
BNC cable
USB power supply
BNC / alligator clip cable
USB / DC cable

Product Information

Availability In stock
Manufacturer Owon
Product path Home Measuring Instruments Electronic Measuring Instruments Signal Generators Owon DGE2035 35MHz SIGNAL GENERATOR
SKU DGE2035
Attributes
- Channels 2
- Bandwidth 35MHz
- Weight 0.45kg
- Manufacturer's model DGE2035
- Click for more details https://www.owon.com.hk/list_dual_channels
- Dimensions 200 x 68.5 x 74.5 mm
- Instructions for use English only
