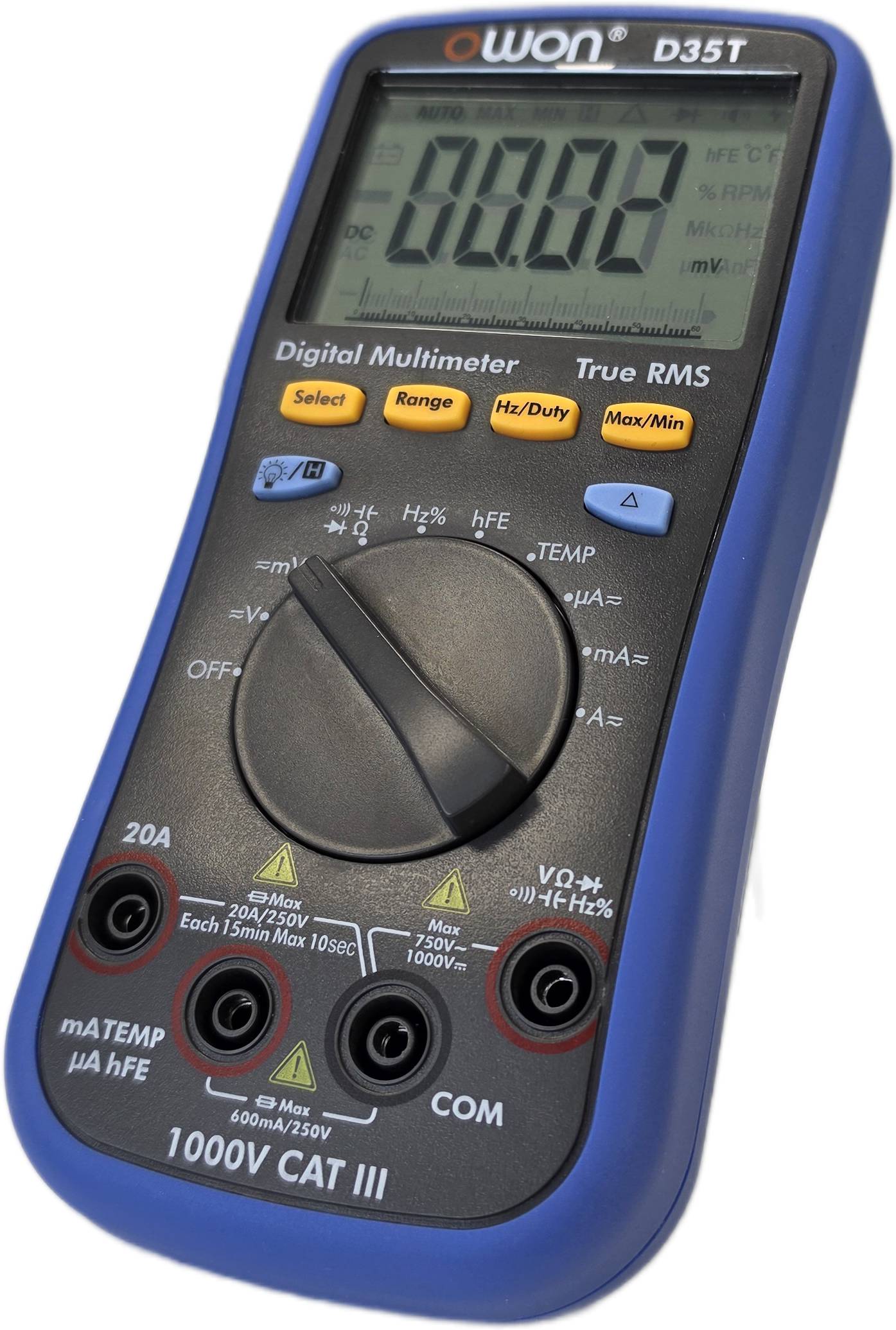

OWON D35T True RMS multimeter
The OWON D35T is an accurate 6000-count (3 5/6-digit) True RMS multimeter suitable for electronics, maintenance and industrial use. The meter combines the functions of a multimeter, thermometer and datalogger in a compact handheld device. A large backlit display, automatic range selection and wide measurement capabilities make it an excellent tool for both professionals and hobbyists.
Features
- True RMS measurement for AC signals
- 6000 count (3 5/6-digit) LCD display
- Voltage measurement up to 1000 VDC / 750 VAC
- Current measurement up to 20 A
- Resistance, capacitance and frequency measurement
- Diode and continuity test with buzzer
- Temperature measurement with supplied K-type probe
- MAX/MIN, HOLD and relative measurement (REL)
- Auto-ranging
- Auto power-off to save batteries
Technical specifications
- DC voltage: 60 mV...1000 V
- AC voltage (True RMS): 60 mV...750 V
- DC/AC current: 600 µA...20 A
- Resistance: 600 Ω...60 MΩ
- Capacitance: 40 nF...4000 µF
- Frequency measurement
- Temperature measurement with K-type probe
- Display: 6000 count LCD with backlight
- Power supply: 2 × AA batteries
Package contents
- OWON D35T multimeter
- Test leads
- Multifunction component test clip
- K-type temperature probe
- User manual
The OWON D35T delivers reliable True RMS measurement, versatile measurement functions and high accuracy for demanding electrical and electronic measurements.
