OWON® D35 is a digital multimeter with a large screen and a 3 5/6 digit display. The device has an automatic shutdown function to extend battery life. You can measure AC/DC voltage and current, resistance, capacitance, frequency, temperature, diode test and audible continuity test.

Note! The cheaper D35 meter lacks TrueRMS measurement and Bluetooth functions compared to, for example, the B35T+ meter.

This multimeter is certified up to 250V CAT III, because the internal fuses are rated only up to 250V. If you are looking for a 1000V alternative, see Owon OW18B.

Features

• automatic range selection
• display backlight
• auto power-off
• data-hold hold function
• relative measurement

Technical specifications

• large LCD screen 69x52mm with 3 5/6 digit display
• input impedance: 10MΩ
• measurement ranges:
  • DC voltage: 60mV-1000V, ±(0.5%+2)
  • AC voltage: 60mV-1000V, ±(0.8%+2)
  • DC current: 600μA-20A, ±(0.8%+2)
  • AC current: 600μA-20A, ±(0.8%+2)
  • resistance: 600Ω-60MΩ, ±(0.8%+2)
  • capacitance: 40nF~4000μF, ±(2%+3)
  • frequency: 9.999Hz-9.999MHz, ±(0.8%+2)
  • PWM duty cycle: 0.1%-99.9%, ±(1.2%+3)
  • temperature: -50...+400°C, ±(2.5% of reading + 3)
• diode test
• continuity test: beeps when under 30Ω
• protection class: CAT III 1000V
• batteries: 2x AA (LR6)
• fuses: F1A/250V and F20A/250V

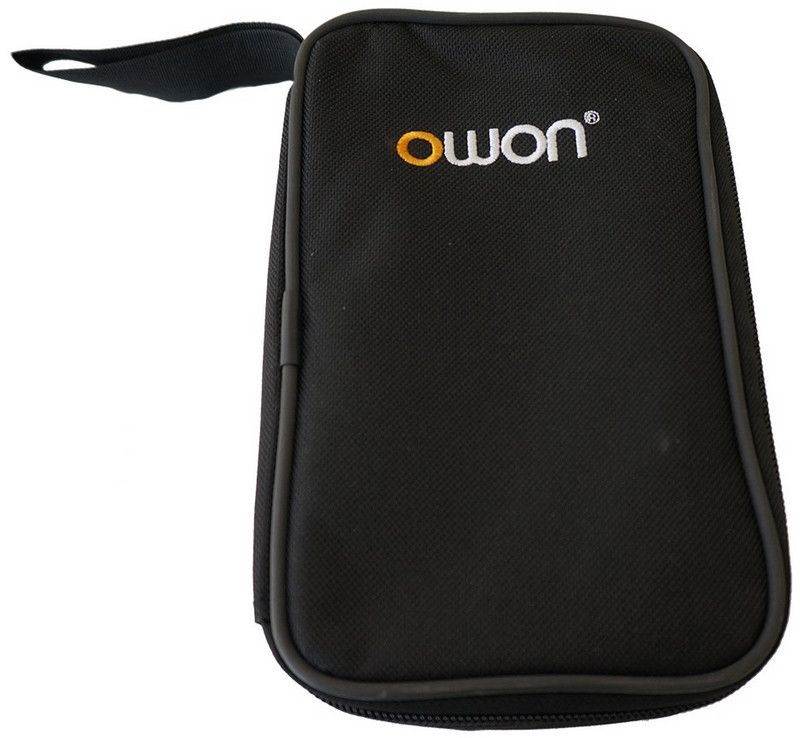

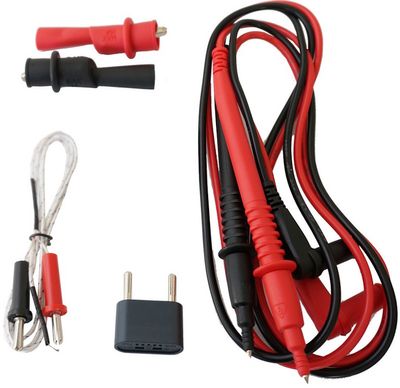

Delivery includes: D35 multimeter, test leads (alligator clips), K-type thermocouple, English user manual and carrying pouch.
