OWON® D33 is a digital multimeter without unnecessary complexity. Large 4000-count backlit LCD with bar graph. Auto power-off to extend battery life. You can measure AC/DC voltage and current, resistance, capacitance, frequency, pulse duty cycle, temperature, diode test and audible continuity test.

Technical specifications

• large LCD display 69x52mm 3 3/4 display (3999)
• input impedance: 10MΩ
• DC voltage measurement: 400mV-1000V, ±(0.5%+2dig)
• AC voltage measurement: 4V-750V, ±(0.8%+2dig)
• DC current measurement: 400μA-10A, ±(0.8%+2dig)
• AC current measurement: 400μA-10A, ±(1.0%+3dig)
• resistance: 400Ω-40MΩ, ±(0.8%+2dig)
• capacitance: 40nF-100μF, ±(2.5%+3dig)
• frequency: 4.999Hz-4.999MHz, ±(0.8%+2dig)
• PWM duty cycle: 0.1%-99.9%, ±(1.2%+3dig)
• temperature: -50...+400°C
• continuity test
• safety category: CAT III 1000V, CAT IV 600V
• battery: 2x AA (not included)
• fuses: 5x20mm F 500mA/250V, 10A/250V

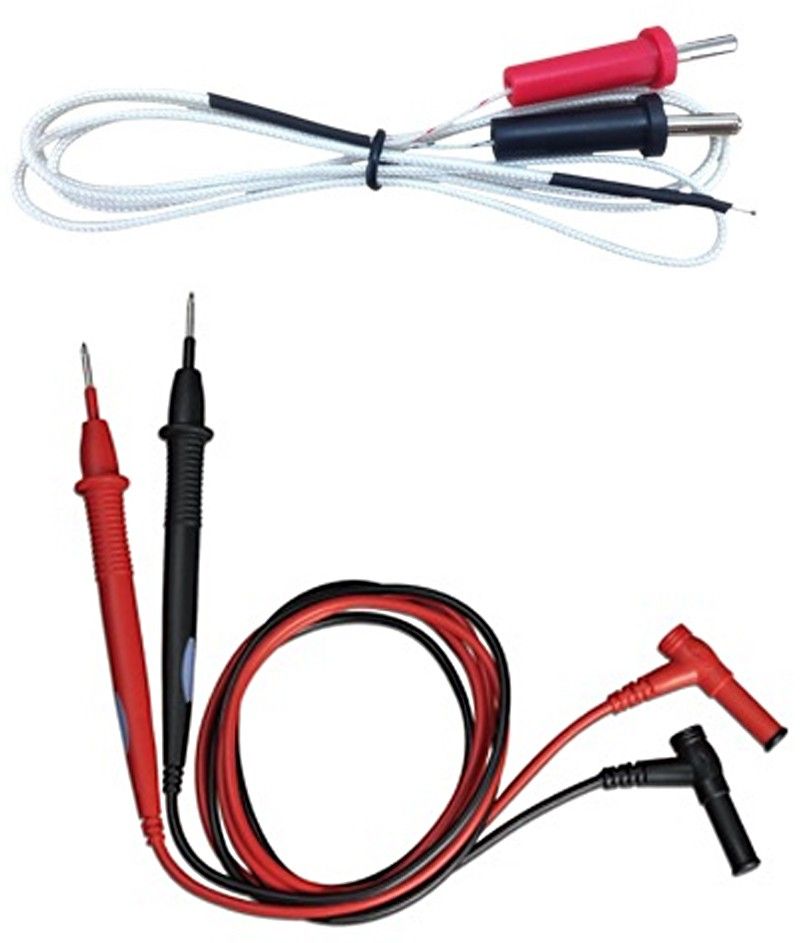

Delivery includes: D33 multimeter, test leads, K-type thermocouple, English user manual.

Finnish user manual available on request.
