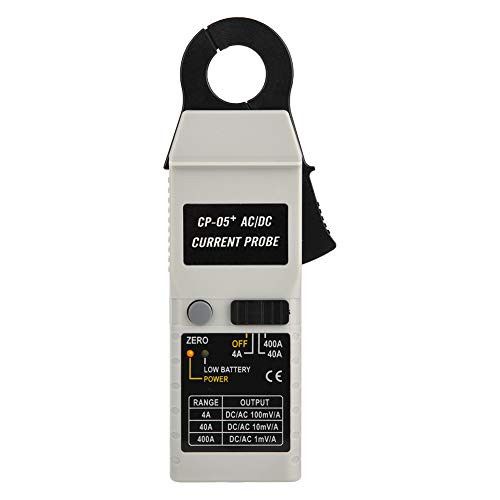

Owon CP-05+ Current Probe

Name: Owon CP-05+ Current Probe
Brand: Owon
SKU: MJ-CP05PLUS
Price: 231.43 EUR
Availability: InStock

In stock under 5 pcs

SKU#: MJ-CP05PLUS

Owon CP-05+ Current Probe

In stock under 5 pcs

SKU#: MJ-CP05PLUS

The Owon CP-05+ current probe is a reliable and accurate measuring instrument suitable for a wide range of applications. It is a useful accessory for an oscilloscope and helps expand current measurement capabilities.

231,43 €

In stock

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Specifications

Model	CP-05+
Test Range	1mA - 400A
Resolution	1mA
Bandwidth	DC - 200KHz (±3dB)
Jaw Size	23mm (max)
Auto Zero at Power-on	√
Power Supply	9V 6F22 Battery
Operating Temperature	0℃ to 50℃
Operating Humidity	15% to 70% RH
DC Current	Range	AC 4A	AC 40A	AC 200A	AC 200A - 400A
Accuracy	±2.0%rdg ± 5-digits	±3.0%rdg ± 5-digits
Sensitivity	1mV/10mA	1mV/0.1A	1mV/1A
AC Current	Range	DC 4A	DC 40A	DC 200A	DC 200 - 400A
Accuracy	±1.5%rdg ± 5-digits	±3.0%rdg ± 5-digits
Sensitivity	1mV/10mA	1mV/0.1A	1mV/1A
Dimensions (W x H x D)	180 x 30 x 44mm
Device Weight	200g

Package contents

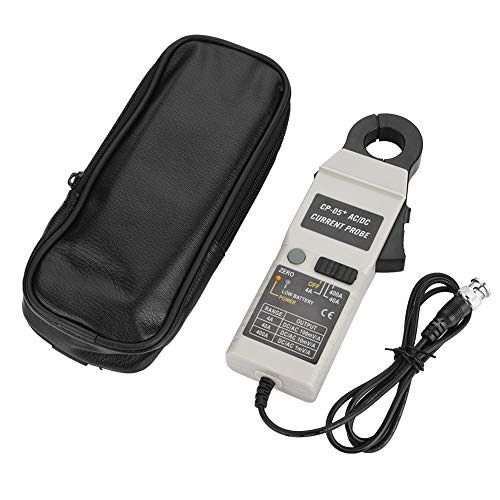

1 x CP-05+ AC/DC 400A Current Clamp Probe
1 x Carrying case

Product Information

Availability In stock
Manufacturer Owon
Product path Home Accessories Measuring Equipment Accessories Samples Owon CP-05+ Current Probe
SKU MJ-CP05PLUS
Attributes
- Weight 200g
- Manufacturer's model CP-05+
- Click for more details https://www.owon.com.hk/products_owon_ac|dc_current_probe
- Dimensions 180 x 30 x 44 mm
