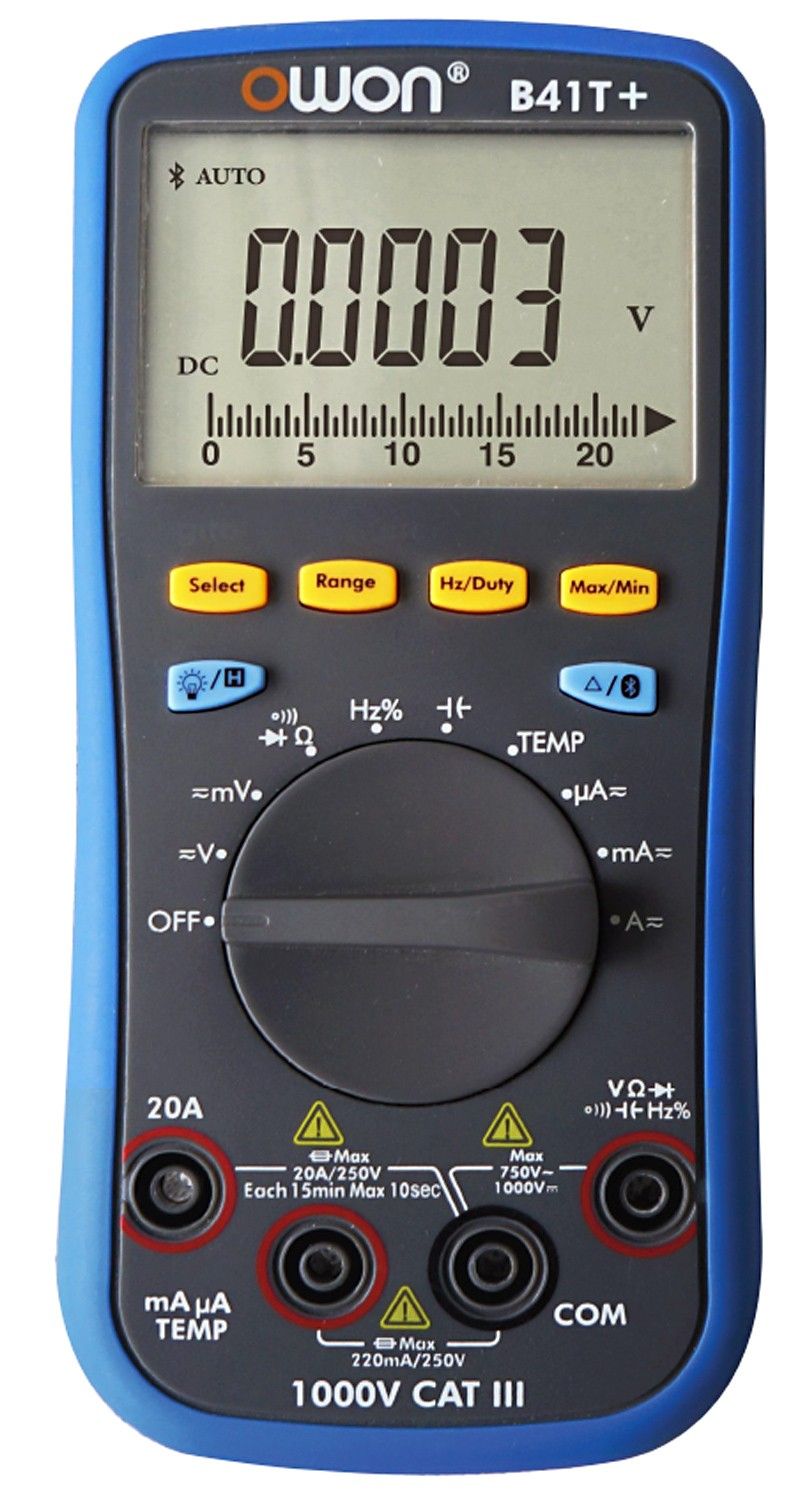

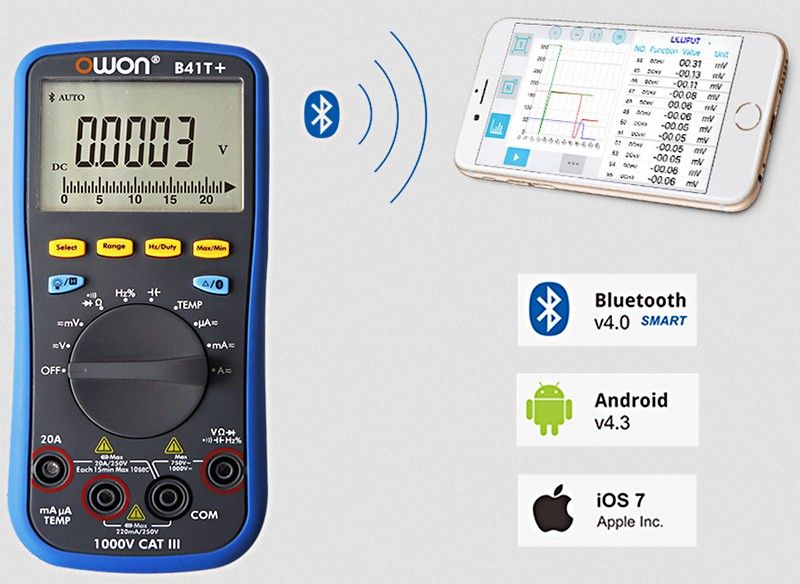

OWON® B41T-PLUS is a digital multimeter with remote operation capability. The device has built-in Bluetooth for taking measurements, datalogging and analyzing stored measurement results with a smartphone app. Multiple meters can be connected to the app simultaneously. Large 21999-count backlit LCD display with bar graph. True RMS (TRMS) measurement ensures more accurate results for AC voltage and current measurements compared to conventional multimeters. Automatic shut-off to extend battery life. You can measure AC/DC voltage and current, resistance, capacitance, frequency, temperature, diode test and audible continuity test.
Technical specifications
- large LCD display 69x52mm 4 1/2 digit display
- input impedance: 10MΩ
- DC voltage measurement: 220mV-1000V, ±(0,1%+10dig)
- AC voltage measurement: 220mV-1000V, ±(0,8%+25dig)
- DC current measurement: 600μA-20A, ±(0,8%+20dig)
- AC current measurement: 600μA-20A, ±(1,5%+25dig)
- resistance: 220Ω-220MΩ, ±(0,4%+5dig)
- capacitance: 22nF~220μF, ±(2,5%+15dig)
- frequency: 22Hz-22MHz, ±(0,1%+4dig)
- PWM duty cycle: 0,1%-99,9%, ±(2,5%+3dig)
- temperature: -50...+400°C, ±(1,0% of reading +5dig)
- continuity test: beeps when below 30Ω
- datalogging: 10000 points, 168 hours
- supports BT4.0 connections (Android 4.3)
- protection class: CAT III 1000V
- batteries: 2x AA (LR6)
- fuses: F1A/250V and F20A/250V (5x20mm)

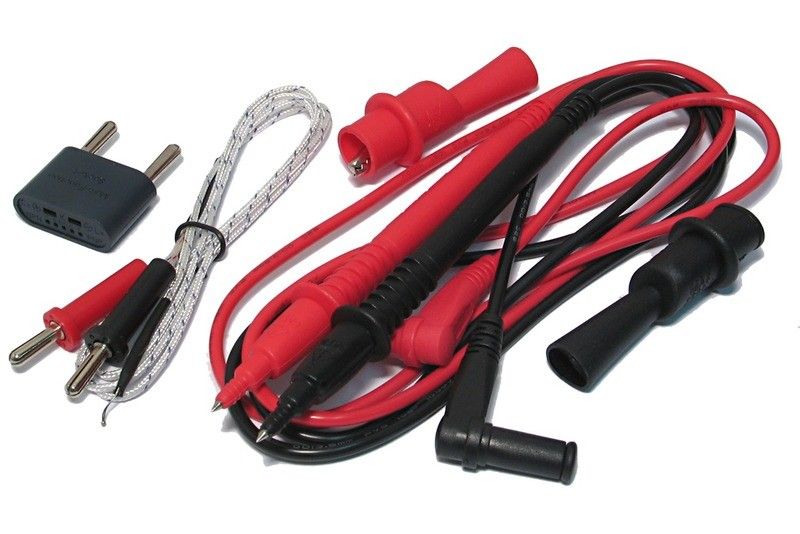

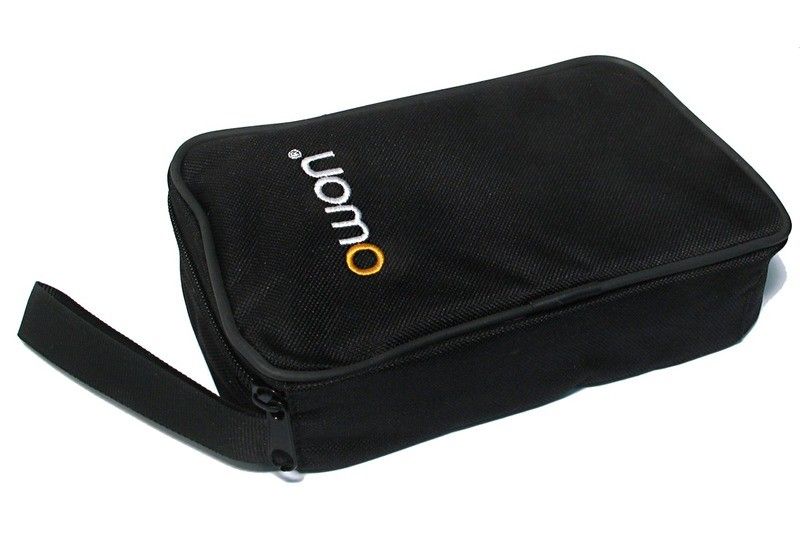

Package includes: B41T+ multimeter, test leads (alligator clips), K-type thermocouple, English user manual and carrying pouch.
Finnish user manual available upon request.
Note! You can download the app (PC, Android) from the manufacturer's website
