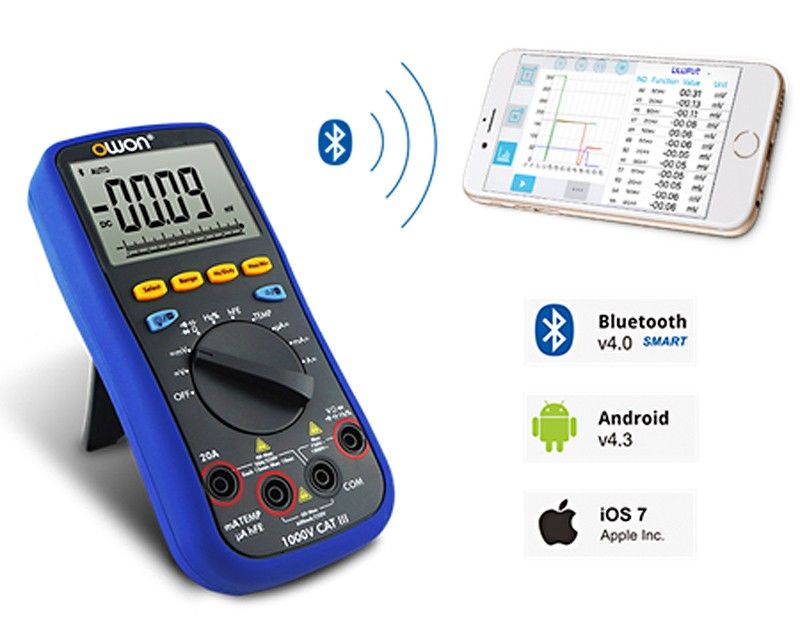

OWON® B35T-PLUS is a digital multimeter with remote operation capability. The device has built-in Bluetooth, allowing you to perform measurements, data logging and analysis of stored measurement results with a smartphone app. Multiple meters can be connected to the app simultaneously. Large 6000-count backlit LCD with bar graph. True RMS (TRMS) measurement ensures more accurate results for AC voltage and AC current measurements compared to traditional multimeters. Auto power-off function to extend battery life. You can measure AC/DC voltage and current, resistance, capacitance, frequency, temperature, diode test and audible continuity test.
Technical specifications
- large LCD display 69x52mm 3 5/6 digits
- input impedance: 10MΩ
- DC voltage measurement: 60mV-1000V, ±(0,5%+2)
- AC voltage measurement: 60mV-1000V, ±(0,8%+2)
- DC current measurement: 600μA-20A, ±(0,8%+2)
- AC current measurement: 600μA-20A, ±(0,8%+2)
- resistance: 600Ω-60MΩ, ±(0,8%+2)
- capacitance: 40nF~4000μF, ±(2%+3)
- frequency: 9,999Hz-9,999MHz, ±(0,8%+2)
- PWM duty cycle: 0.1%-99.9%, ±(1,2%+3)
- temperature: -50...+400°C, ±(2,5% of reading + 3)
- continuity test: beeps when below 30Ω
- data logging: 10000 points, 168 hours
- supports BT4.0 and BT2.0 connections (note: different apps)
- protection category: CAT III 1000V
- batteries: 2x AA (LR6)
- fuses: F1A/250V and F20A/250V

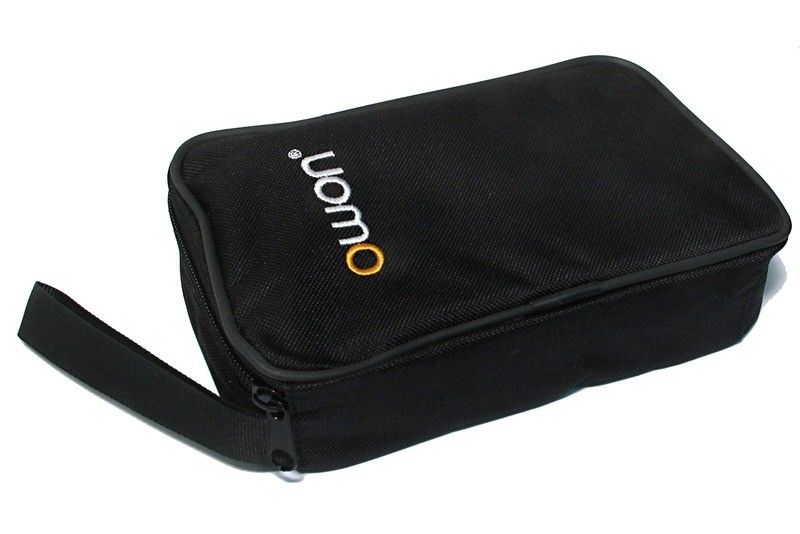

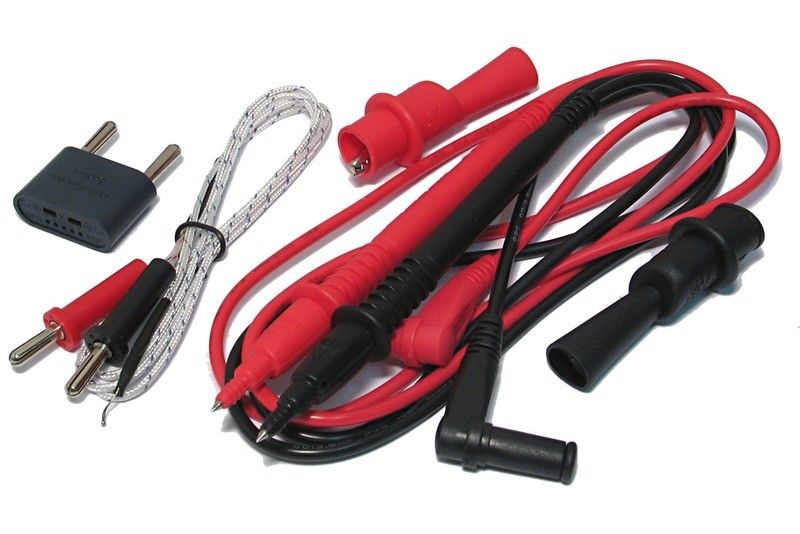

Package includes: B35T+ multimeter, test leads (with alligator clips), K-type thermocouple, English user manual and carrying pouch.
Finnish user manual available on request.
Note! You can download the app (PC, Android) from the manufacturer's website
