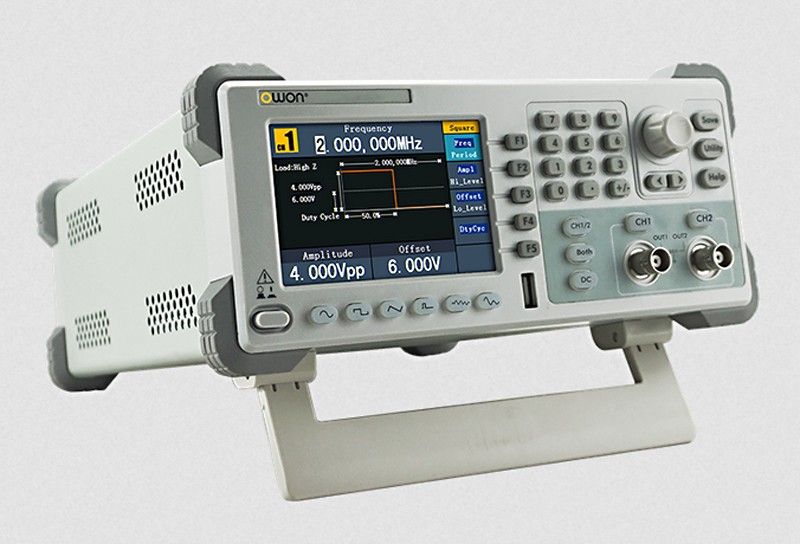

Owon AG1012F - 10MHz dual-channel function and signal generator with counter and modulation

333,91 €

In stock

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Ominaisuudet

signaaleille kaksi erillistä lähtökanavaa (10MHz)
laskuritoiminto: aika, taajuus, pulssisuhde, pulssinleveys (100mHz - 200MHz)
ulkoiset liitännät: modulointi, synkronointi, triggaus
perustuu DDS digitaaliseen synteesiin
signaalitaajuus: 10MHz
lähdön amplitudi: 1mV-12,5Vpp @50ohm (saatavilla erillinen 10W vahvistinmoduuli)
näytetaajuus: 125MS/s
taajuusresoluutio: 1μHz
pystyresoluutio: 14 bittiä, 8K vapaan aaltomuodon pituus
aaltomuodot: viisi perusaatlomuotoa sekä 45 sisäänrakennettua vapaata aalomuotoa
kattava valikoima modulaatiotapoja: AM, FM, PM, FSK, Sweep, Burst
SCPI ja LabVIEW -tuki
selkeä värinäyttö: 4'' 480x320

Pakkaus sisältää: AG1012F signaaligeneraattori, varasulakkeet, BNC-johto, USB-johto, virtajohto, pikaopas, CD

Speksit

Model	AG1012F	AG1022F	AG2052F	AG2062F
Channel	dual
Frequency Output	10MHz	25MHz	50MHz	60MHz
Sample Rate	125MS/s		250MS/s
Vertical Resolution	14 bits
Waveform
Standard Waveform	Sine, Square, Pulse, Ramp, and Noise
Arbitrary Waveform	Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, and others, total 45 built-in waveforms, and user-defined arbitrar y waveform
Frequency (resolution 1μHz)
Sine	1μHz - 10MHz	1μHz - 25MHz	1μHz - 50MHz	1μHz - 60MHz
Square	1μHz - 5MHz		1μHz - 25MHz	1μHz - 30MHz
Pulse	1μHz - 5MHz		1μHz - 10MHz	1μHz - 15MHz
Ramp	1μHz - 1MHz
Noise	25MHz (-3dB) (typical)
Arb	1μHz - 10MHz
Amplitude
Amplitude	1mVpp - 10Vpp (50Ω), 1mVpp - 20Vpp (high impedance)
Resolution	1m Vpp or 4 digits
DC Offset Range (AD+DC)	±5V (50Ω), ±10V (high impedance)
DC Offset Range Resolution	1mV or 4 digits
Load Impedance	50Ω (typical)
Arbitrary Waveform
Wave Length	2 pts to 8K pts		2 pts to 1M pts
Non-volatile Memory	64M byte
Modulation
Modulation Waveform	AM, FM, PM, FSK, ASK, PSK, Sweep, and Burst		AM, FM, PM, FSK, PWM, ASK, PSK, Sweep, and Burst
Modulation Frequency	2mHz to 20.00KHz (FSK 2mHz - 100KHz)
Cymometer
Function	Frequency, Period, +Width, -Width, +Duty, and -Duty
Frequency Range	100mHz ~ 200MHz
Frequency Resolution	6 digits/s
Power Amplifier Module (optional)
Input Impedance	50 kΩ		Output Impedance	<2 Ω
Max Input Voltage	2.2Vpp		Gain	X 10
Max Output Voltage	22 Vpp		Offset	<7%
Output Slew Rate	10V/us		Bandwidth (at full power)	DC 100kHz
Max Output Power	10 W
Input / Output
Display	4 inch (480 × 320 pixels) LCD

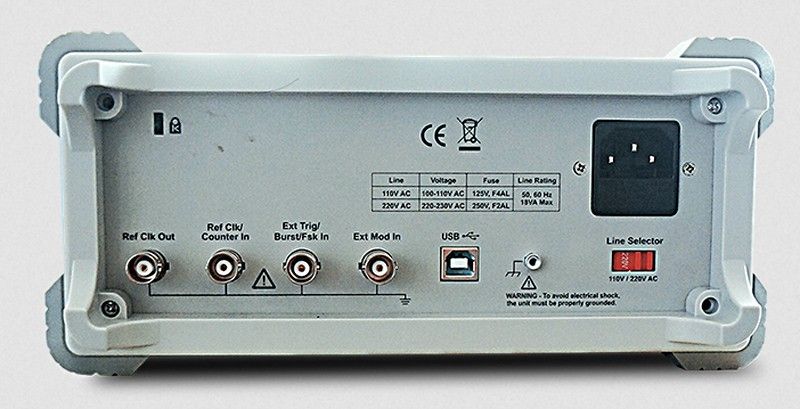

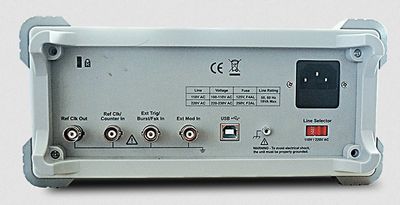

Type	counter external modulation input, external trigger input , external reference clock input / output
Communication Interface	USB host, and USB device, RS232 (option)
Mechanical
Dimension (W×H×D)	235 × 110 × 295 (mm)
Device Weight	3.00 kg

Linkit

Video

Product Information

Availability In stock
Manufacturer Owon
Product path Home Measuring Instruments Electronic Measuring Instruments Signal Generators Owon AG1012F 2CH 10MHZ SIG.GEN+COUNTER
SKU AG1012F
Attributes
- Weight 3.0kg
- Manufacturer's model AG1012F
- Click for more details https://www.owon.com.hk/products_owon_2-ch_arbitrary_waveform_generator_with_counter
- Dimensions 235 x 110 x 295 mm
- Instructions for use only in English
