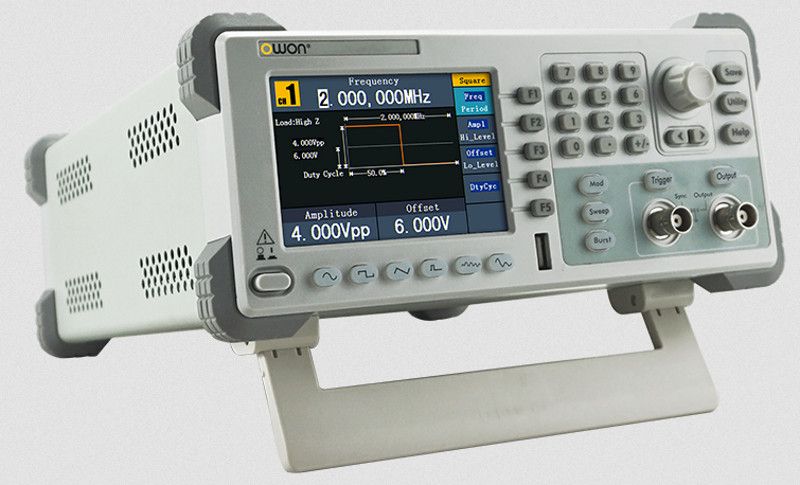

OWON AG051F - 5MHz single-channel function and signal generator with modulation

269,83 €

Made to order, delivery time usually 7-14 days

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Ominaisuudet

perustuu DDS digitaaliseen synteesiin
signaalitaajuus: 5MHz
lähdön amplitudi: 1mV-12,5Vpp @50ohm
näytetaajuus: 125MS/s
taajuusresoluutio: 1μHz
pystyresoluutio: 14 bittiä, 8K vapaan aaltomuodon pituus
aaltomuodot: viisi perusaalomuotoa sekä 45 sisäänrakennettua vapaata aalomuotoa
kattava valikoima modulaatiotapoja: AM, FM, PM, FSK, Sweep, Burst
SCPI ja LabVIEW -tuki
selkeä värinäyttö: 4'' 480x320

Toimitus

Pakkaus sisältää: AG051F signaaligeneraattori, varasulakkeet, BNC-johto, USB-johto, virtajohto, pikaopas, CD

Speksit

Model	AG051
Channel	single + trigger
Frequency Output	5MHz				10MHz
Sample Rate	125MS/s
Vertical Resolution	14 bits
Waveform
Standard Waveform	Sine, Square, Pulse, Ramp, and Noise
Arbitrary Waveform	Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, and others, total 45 built-in waveforms, and user-defined arbitrary waveform
Frequency (resolution 1μHz)
Sine	1μHz - 5MHz				1μHz - 10MHz
Square	1μHz - 5MHz
Pulse	1μHz - 5MHz
Ramp	1μHz - 1MHz
Noise	5MHz (-3dB) (typical)
Arb	1μHz - 5MHz
Amplitude
Amplitude	1m Vpp - 12.5 Vpp (50Ω), 1m Vpp - 25 Vpp (high impedance)
Resolution	1m Vpp, or 4 digits
DC Offset Range (AD+DC)	±6.25V (50Ω), ±12.5V (high impedance)
DC Offset Range Resolution	1mV, or 4 digits
Load Impedance	50Ω (typical)
Arbitrary Waveform
Wave Length		2 pts to 8K pts
Sample Rate		125MS/s
Vertical Resolution		14 bits
Non-volatile Memory		64M bytes
Modulation
Modulation Waveform		/	AM, FM, PM, FSK, Sweep, and Burst			/		AM, FM, PM, FSK, Sweep, and Burst
Modulation Frequency		/	2mHz to 20.00KHz (FSK 2mHz - 100KHz)			/		2mHz to 20.00KHz (FSK 2mHz - 100KHz)
Power Amplifier Module (optional)
Input Impedance		50 kΩ		Output Impedance			<2 Ω
Max Input Voltage		2.2Vpp		Gain			X 10
Max Output Voltage		22 Vpp		Offset			<7%
Output Slew Rate		10V/us		Bandwidth (at full power)			DC 100kHz
Max Output Power		10 W
Input / Output
Display		4 inch (480 x 320 pixels) LCD
Type		external reference clock input	external modulation input, external trigger input, and external reference clock input			external reference clock input		external modulation input, external trigger input, and external reference clock input
Communication Interface		USB device
Mechanical
Dimension (W x H x D)		235 x 110 x 295 (mm)
Device Weight		3.00 kg

Linkit

Video

Product Information

Availability Made to order, delivery time usually 7-14 days
Manufacturer Owon
Product path Home Measuring Instruments Electronic Measuring Instruments Signal Generators Owon AG051F 5MHz SIGNAL GENERATOR
SKU AG051F
Attributes
- Weight 3.0kg
- Manufacturer's model AG051F
- Click for more details http://www.owon.com.hk/products_owon_1-ch_low_frequency_arbitrary_waveform_generator
- Dimensions 235 x 110 x 295 mm
- Instructions for use only in English
